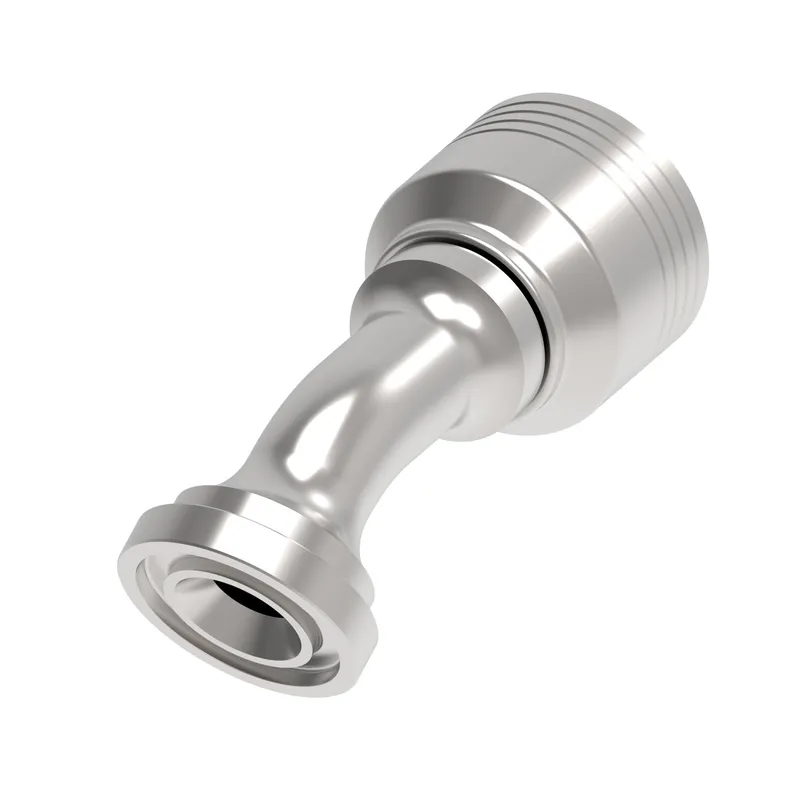

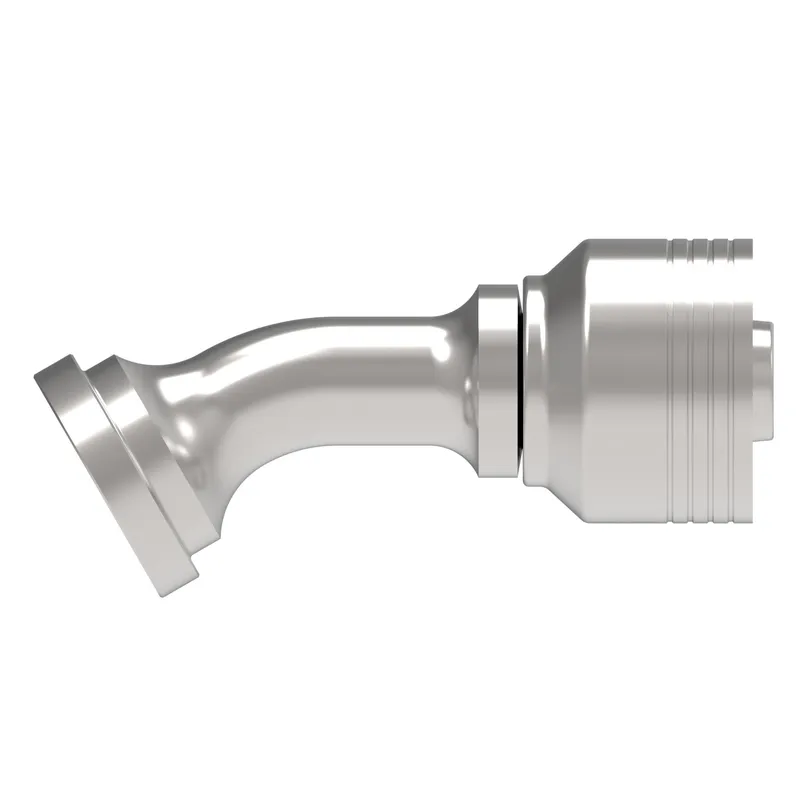

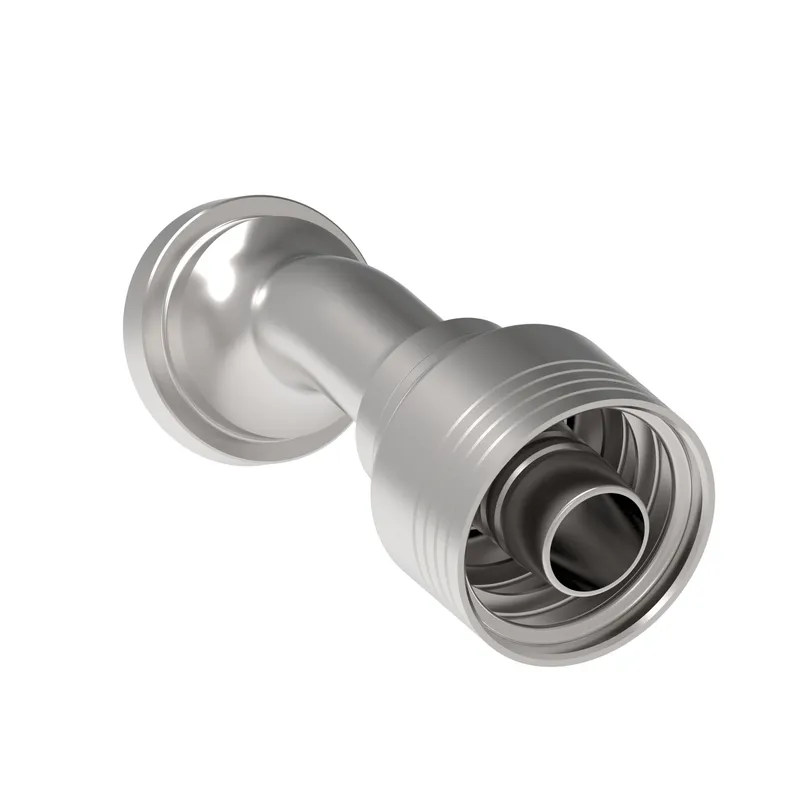

Danfoss 1B12FLF12

HOSE NIPPLE ASSY, 4S/12, C61/12, CS, 30D

MPN
1B12FLF12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B12FLF12?

Danfoss HOSE NIPPLE ASSY, 4S/12, C61/12, CS, 30D, manufacturer part number 1B12FLF12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146128799
A dimension IN3.820
A dimension MM97.000
Angle shape30 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesGH493
Construction StyleCrimp
Drop dimension IN0.620
Drop dimension MM15.70
End size 1-12
End type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN2.750
Hose cut off factor MM69.900
Hose size-12
Inside diameter IN0.550
Inside diameter MM13.900
Product height in0.620
Product height mm15.748
Product length in3.820
Product length mm97.028
Product materialCarbon steel
Product width in1.657
Product width mm42.087 mm
SeriesB Series
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C126
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

1B12FLF12: frequently asked questions

When can 1B12FLF12 be shipped?

1B12FLF12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1B12FLF12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1B12FLF12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B12FLF12, subject to availability and destination.
