Danfoss 1AA6FJA4

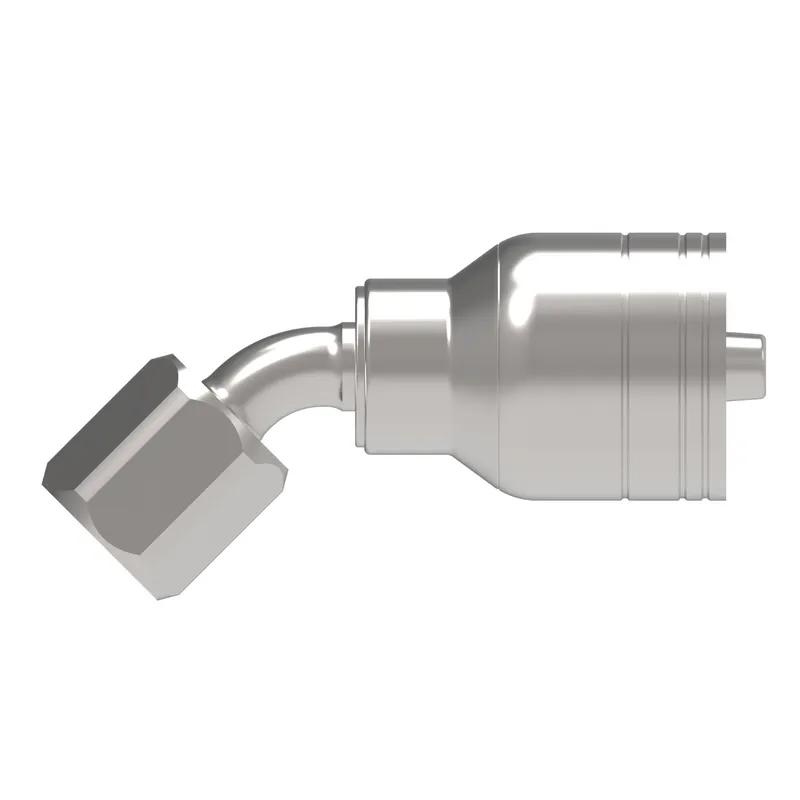

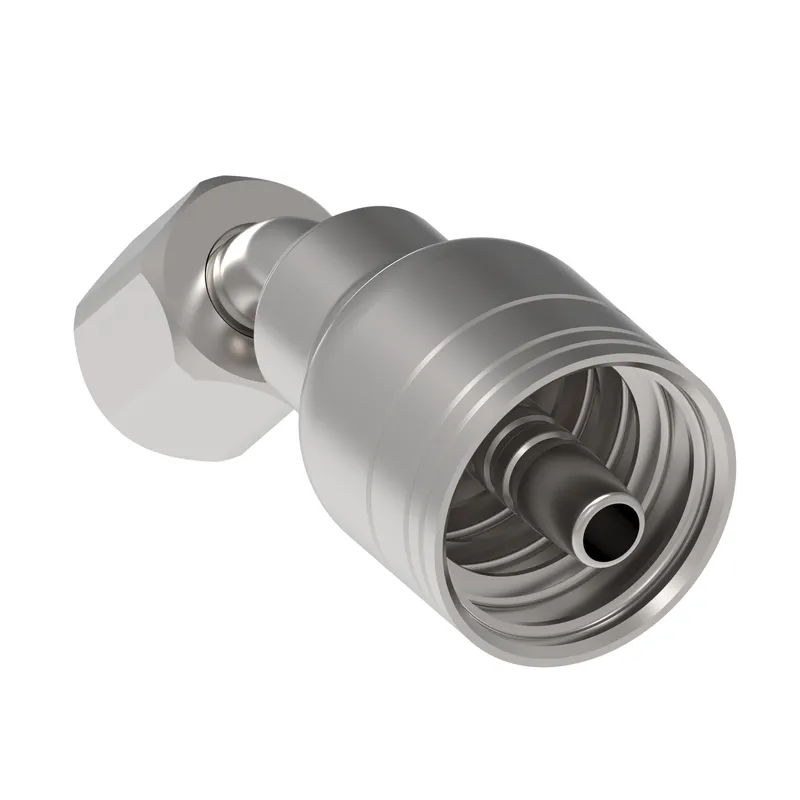

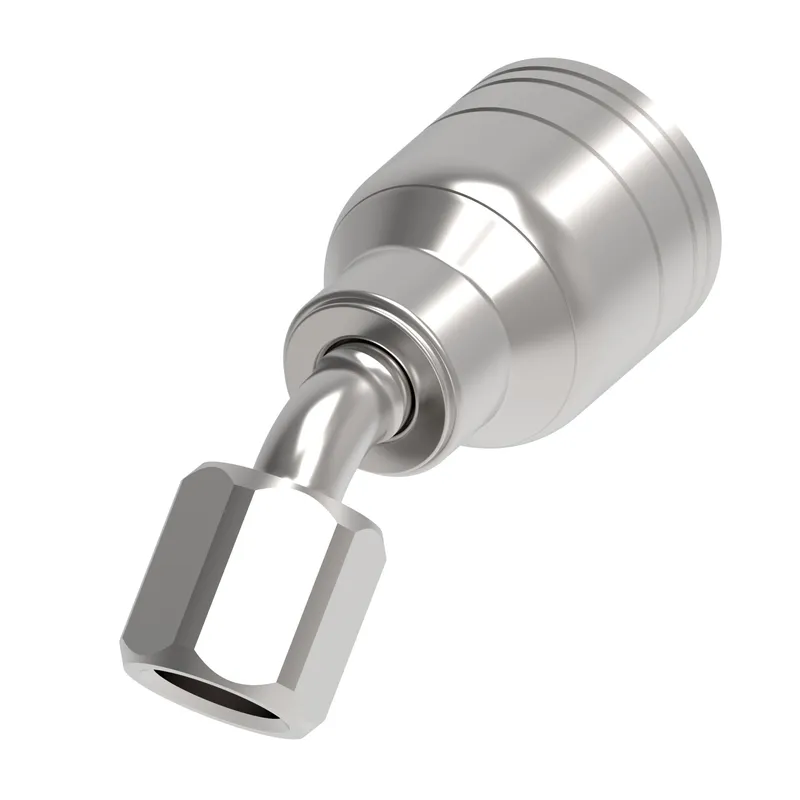

HOSE FTG, 1A/04, JIC-F/06, CS, 45D

MPN: 1AA6FJA4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA6FJA4?

Danfoss HOSE FTG, 1A/04, JIC-F/06, CS, 45D, manufacturer part number 1AA6FJA4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127112
A dimension IN	2.370
A dimension MM	60.200
Angle shape	45 Degree
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	0.450
Drop dimension MM	11.40
End connection torque	18-20 lb-ft(24-28 Nm)
End size 1	-6
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.530
Hose cut off factor MM	38.800
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.610
Product height mm	40.894
Product length in	3.220
Product length mm	81.788
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	9/16-18 UNF
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
