Danfoss 1AA16FRA12

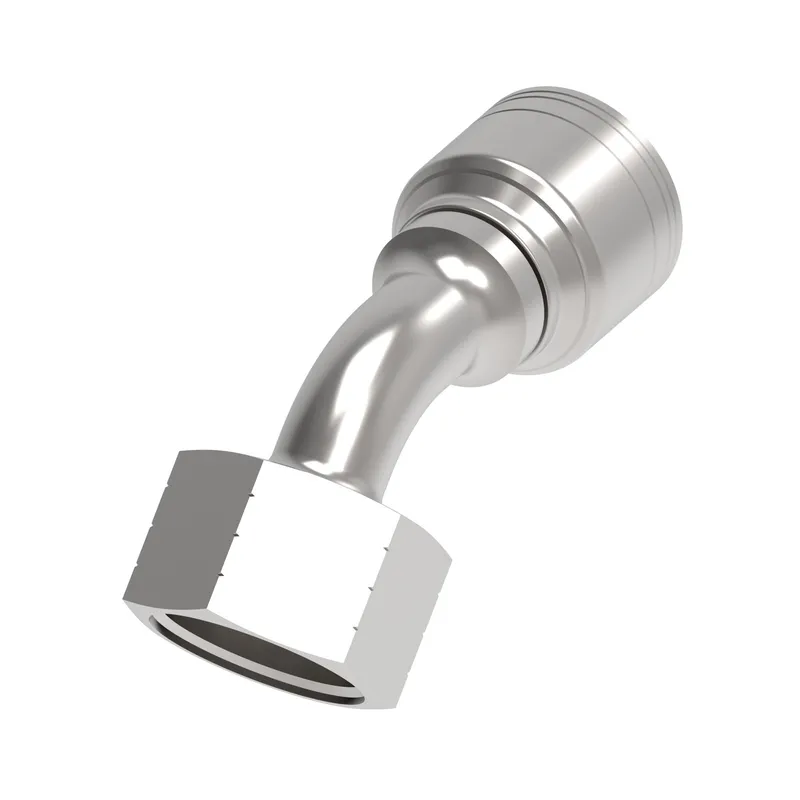

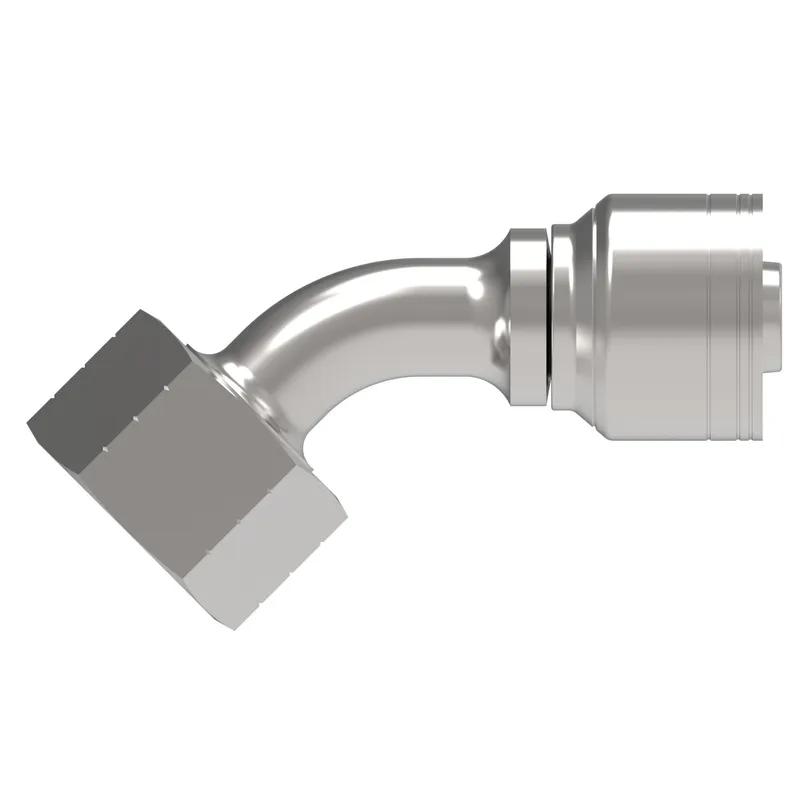

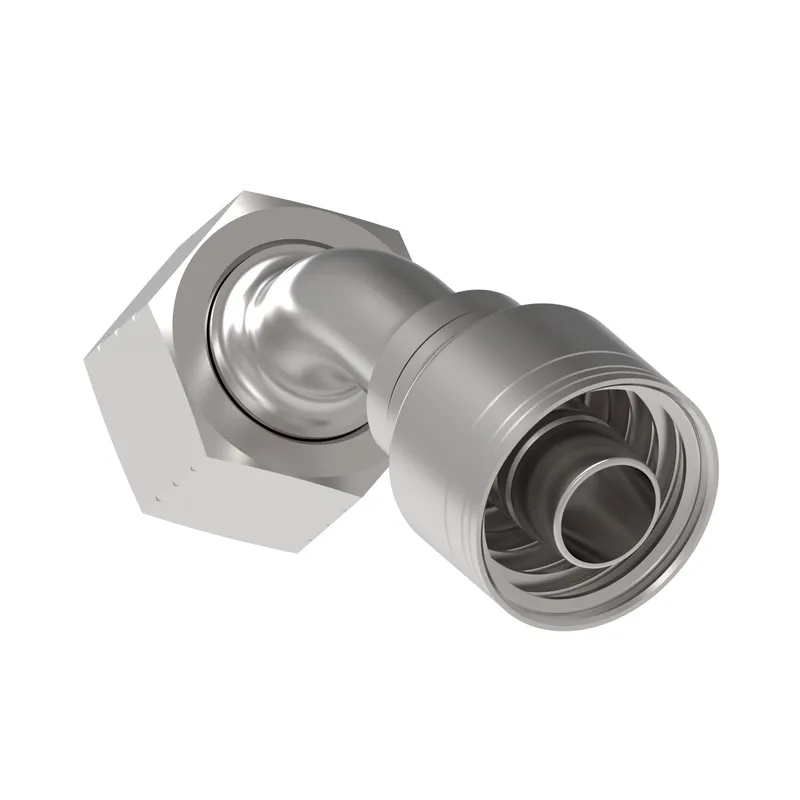

HOSE FTG, 1A/12, ORS-F/16, CS, 45D

MPN: 1AA16FRA12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16FRA12?

Danfoss HOSE FTG, 1A/12, ORS-F/16, CS, 45D, manufacturer part number 1AA16FRA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126047
A dimension IN	3.620
A dimension MM	91.800
Angle shape	45 Degree
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	0.940
Drop dimension MM	23.90
End connection torque	92-100 lb-ft(125-136 Nm)
End size 1	-16
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hose cut off factor IN	2.550
Hose cut off factor MM	64.700
Hose size	-12
Inside diameter IN	0.550
Inside diameter MM	13.900
Product height in	3.110
Product height mm	78.994
Product length in	5.130
Product length mm	130.302
Product material	Carbon steel
Product width in	1.630
Product width mm	41.402
Series	1A/Z Series
Thread size 1	1 7/16-12 UN
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
