Danfoss 1AA16FR12

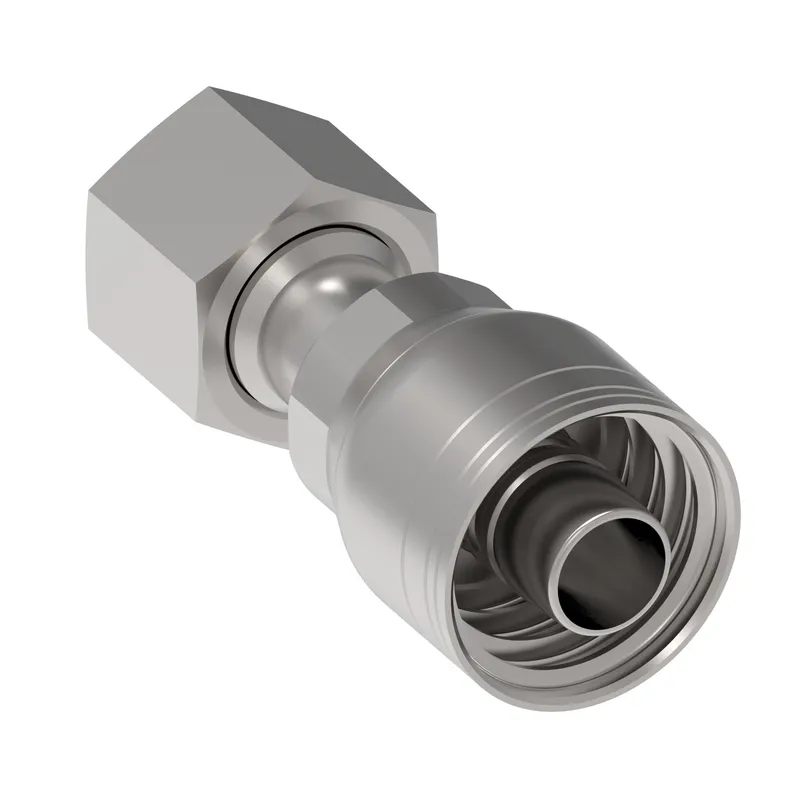

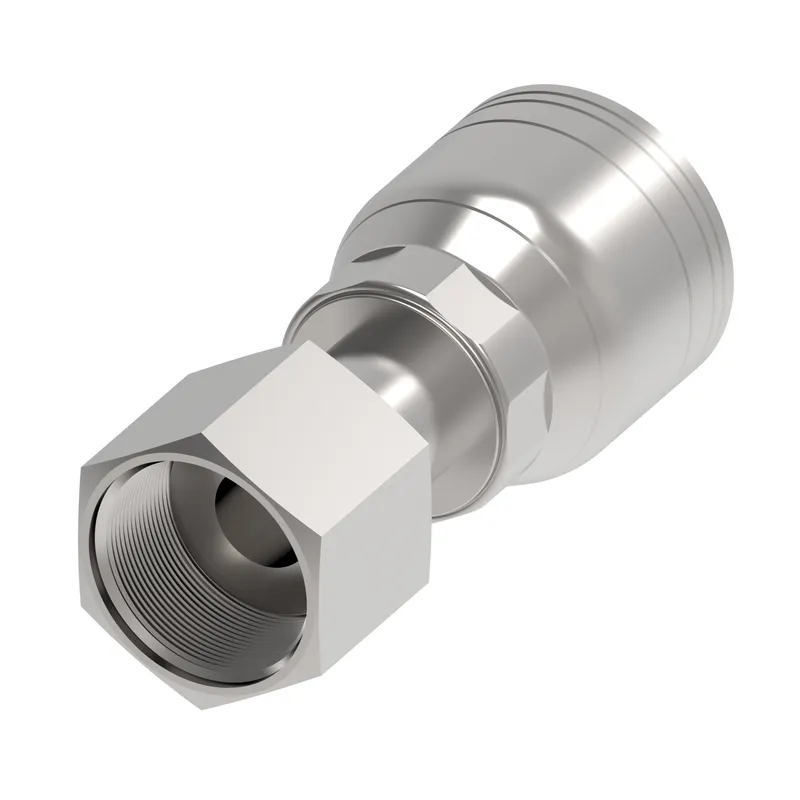

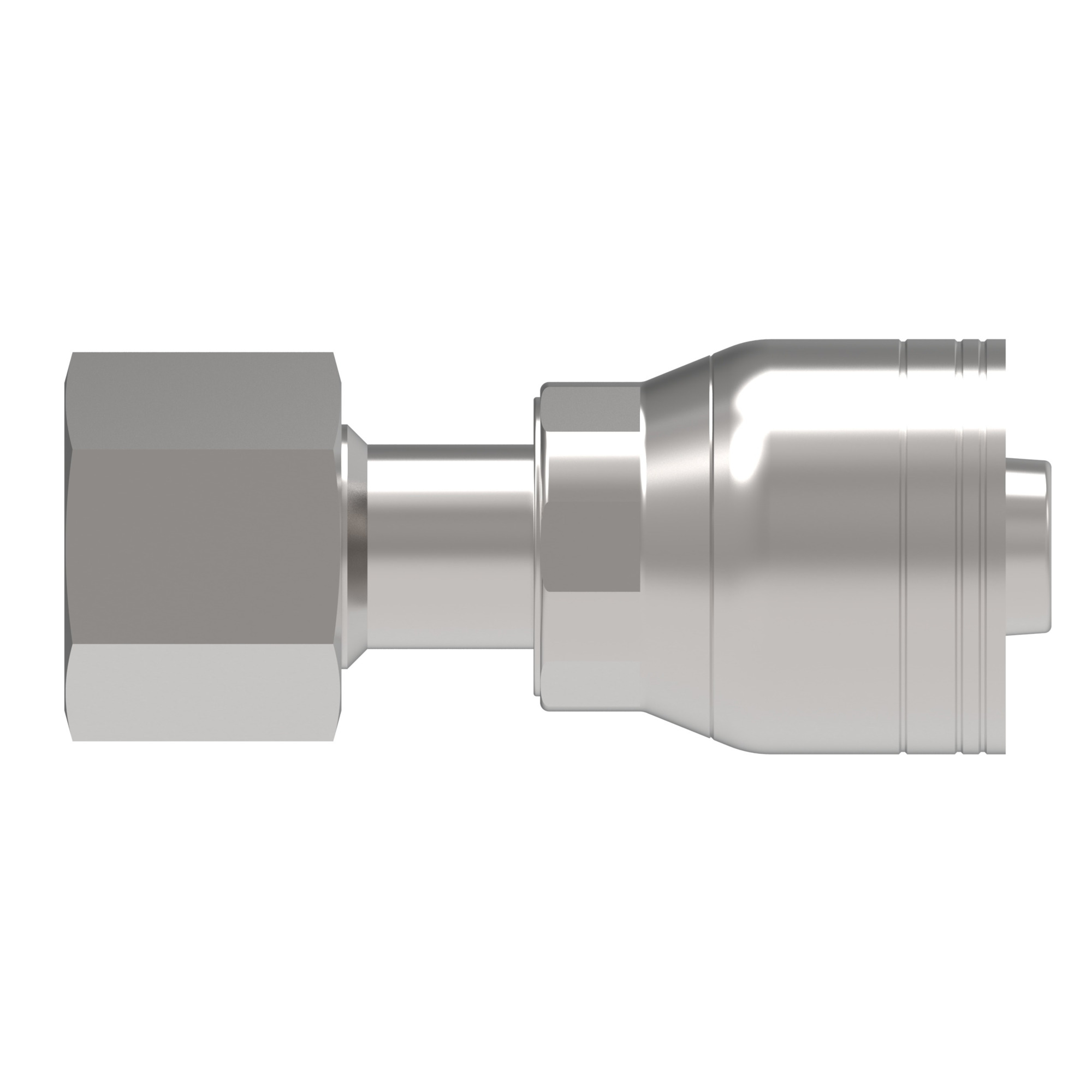

HOSE FTG, 1A/12, ORS-F/16, CS, STR

MPN: 1AA16FR12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16FR12?

Danfoss HOSE FTG, 1A/12, ORS-F/16, CS, STR, manufacturer part number 1AA16FR12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126023
A dimension IN	2.870
A dimension MM	73.000
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	92-100 lb-ft(125-136 Nm)
End size 1	-16
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 2 MM	30.000
Hose cut off factor IN	1.790
Hose cut off factor MM	45.500
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.630
Product height mm	41.402
Product length in	3.620
Product length mm	91.948
Product material	Carbon steel
Product width in	1.630
Product width mm	41.402
Series	1A/Z Series
Thread size 1	1 7/16-12 UN
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
