Danfoss 1AA16FJA16

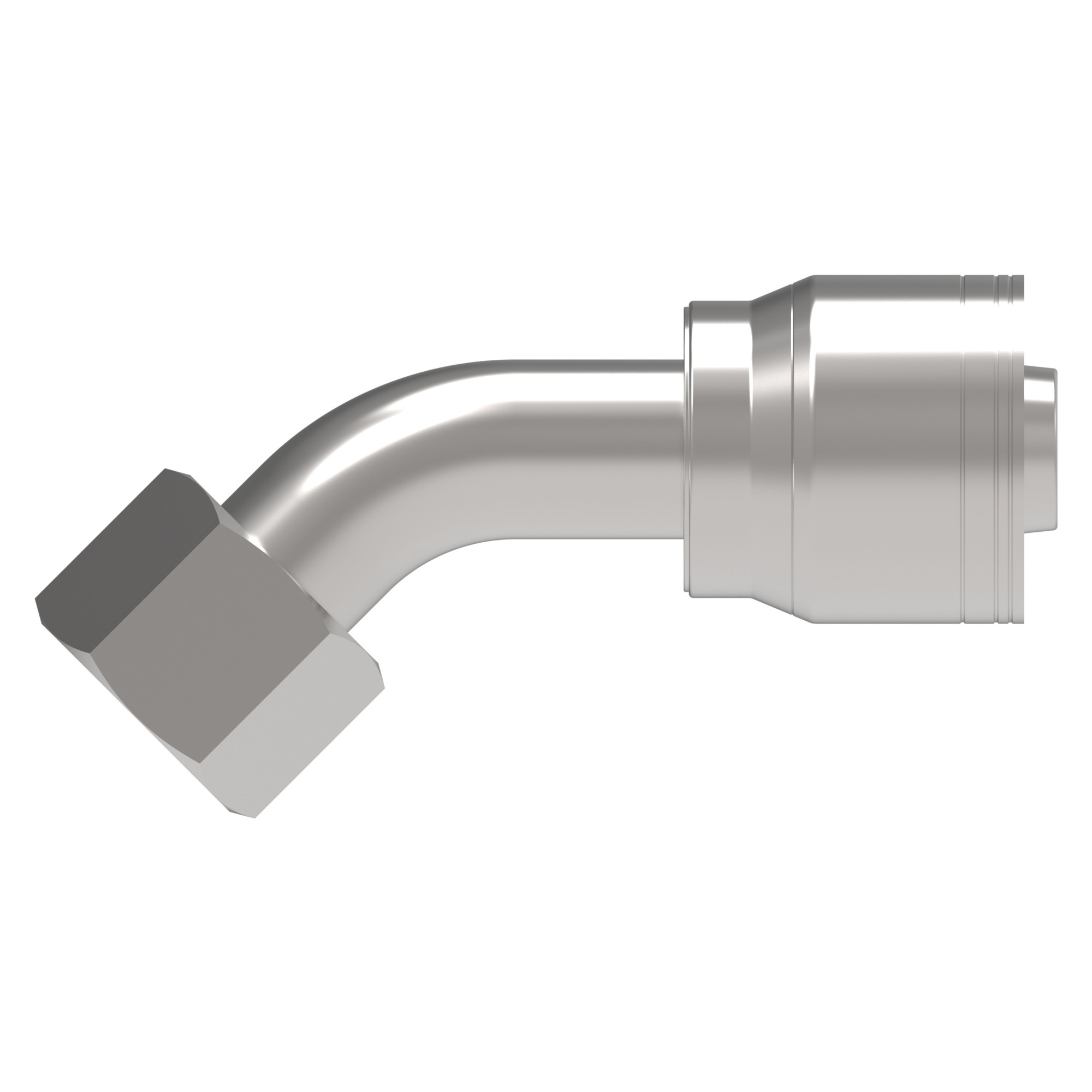

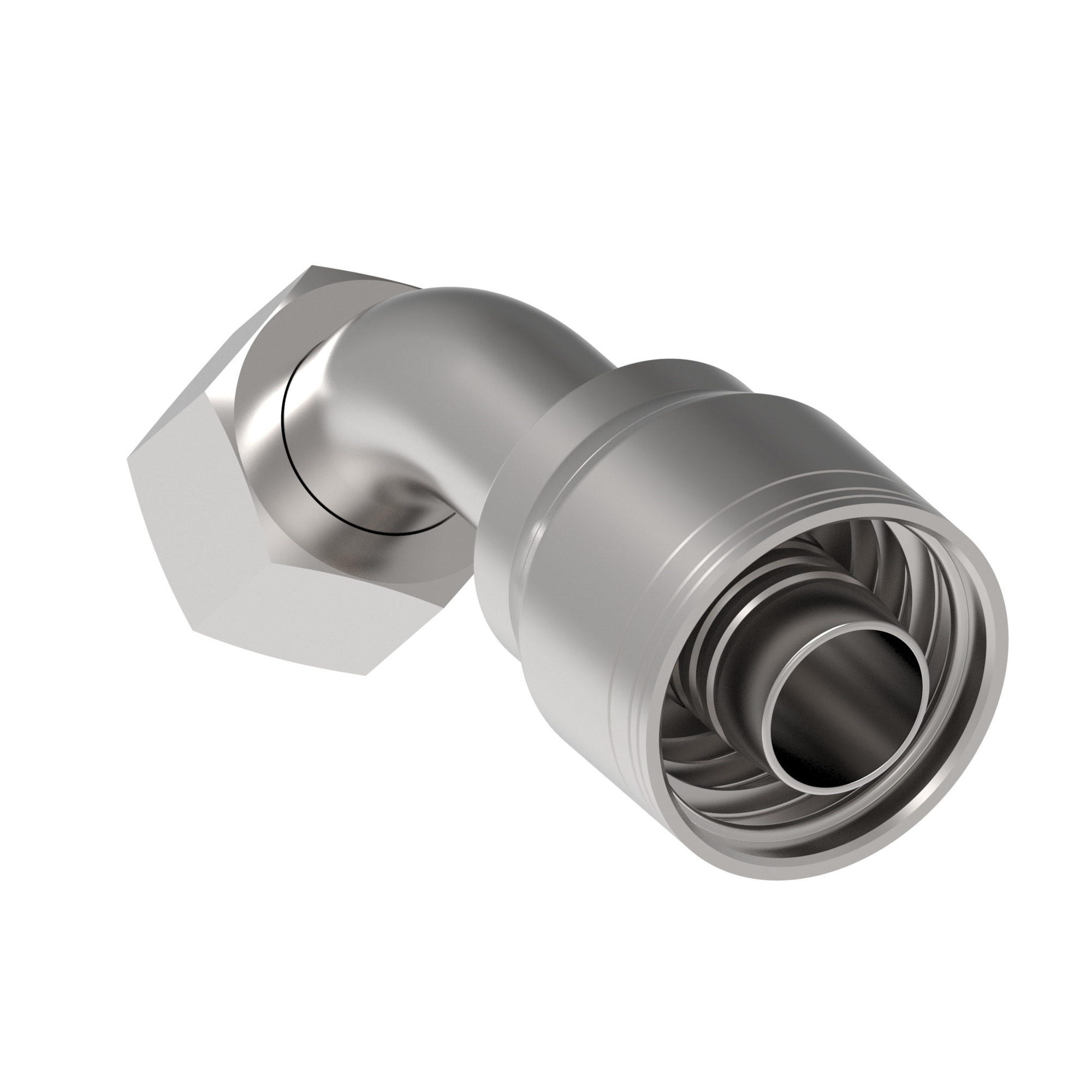

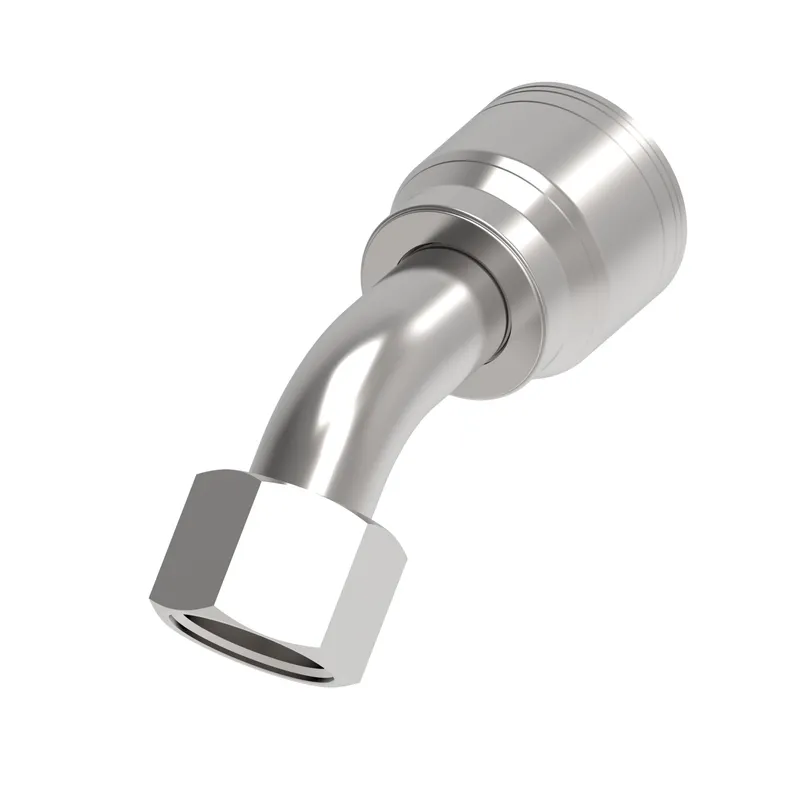

HOSE FTG, 1A/16, JIC-F/16, CS, 45D

MPN: 1AA16FJA16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16FJA16?

Danfoss HOSE FTG, 1A/16, JIC-F/16, CS, 45D, manufacturer part number 1AA16FJA16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125989
A dimension IN	4.520
A dimension MM	114.800
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	1.070
Drop dimension MM	27.10
End connection torque	108-113 lb-ft(148-154 Nm)
End size 1	-16
End Type 1	Female 37 degree swivel
Finish plating	Protective oil
Hose cut off factor IN	3.010
Hose cut off factor MM	76.400
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.600
Product height in	3.390
Product height mm	86.106
Product length in	5.870
Product length mm	149.098
Product material	Carbon steel
Product width in	1.940
Product width mm	49.276
Series	1A/Z Series
Thread size 1	1 5/16-12 UN
Working pressure max BAR	280.00
Working pressure max PSI	4050.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
