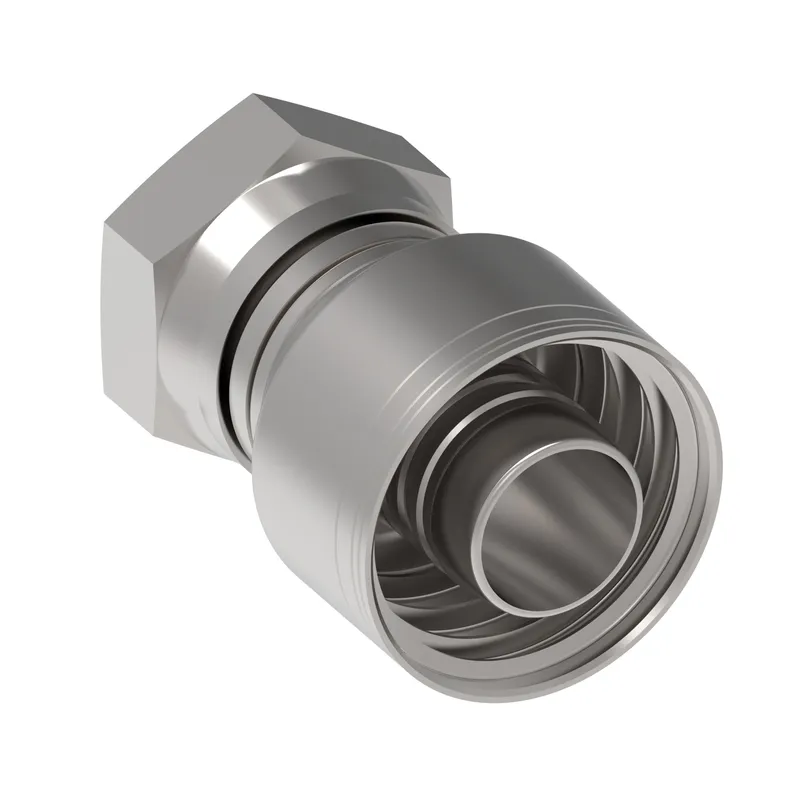

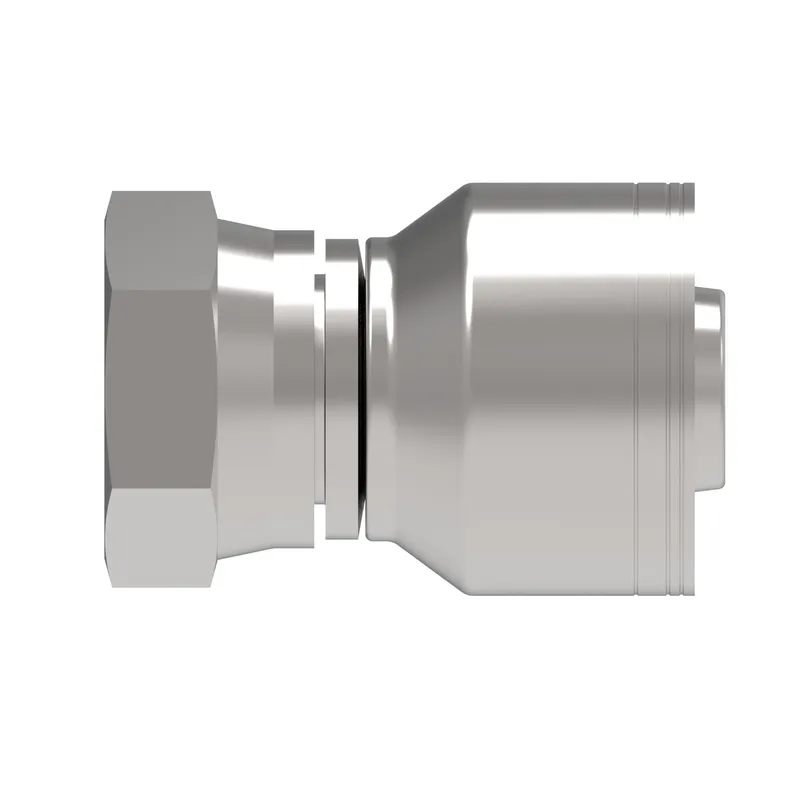

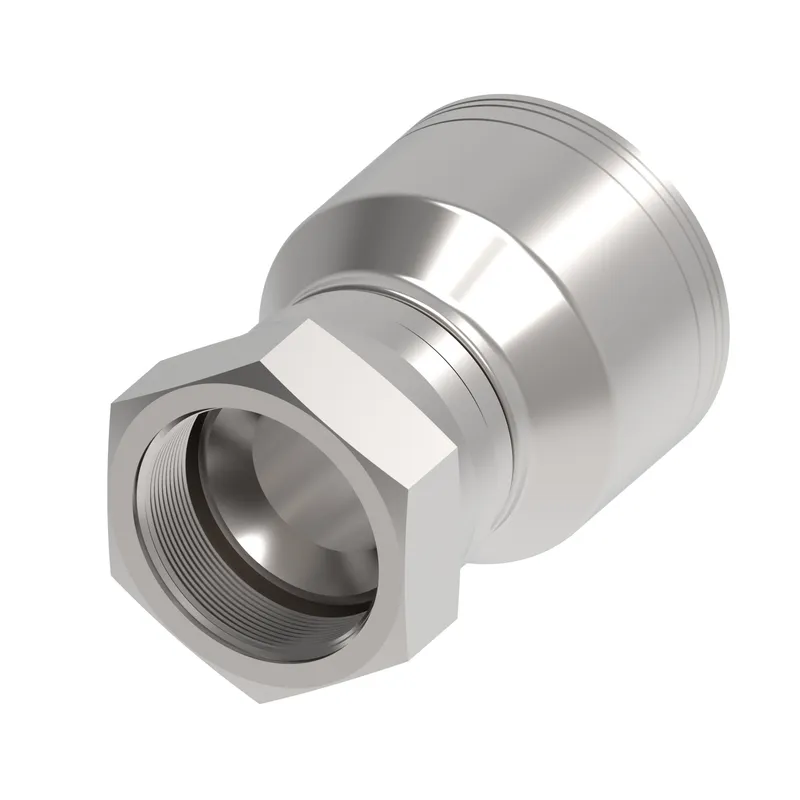

Danfoss 1AA16FJ20

HOSE FTG, 1A/20, JIC-F/16, CS, STR

MPN: 1AA16FJ20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16FJ20?

Danfoss HOSE FTG, 1A/20, JIC-F/16, CS, STR, manufacturer part number 1AA16FJ20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146180544
A dimension IN	3.290
A dimension MM	83.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	108-113 lb-ft(148-154 Nm)
End size 1	-16
End Type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hose cut off factor IN	1.730
Hose cut off factor MM	44.000
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.410
Product height mm	61.214
Product length in	3.460
Product length mm	87.884
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread size 1	1 5/16-12 UN
Working pressure max BAR	280.00
Working pressure max PSI	4050.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
