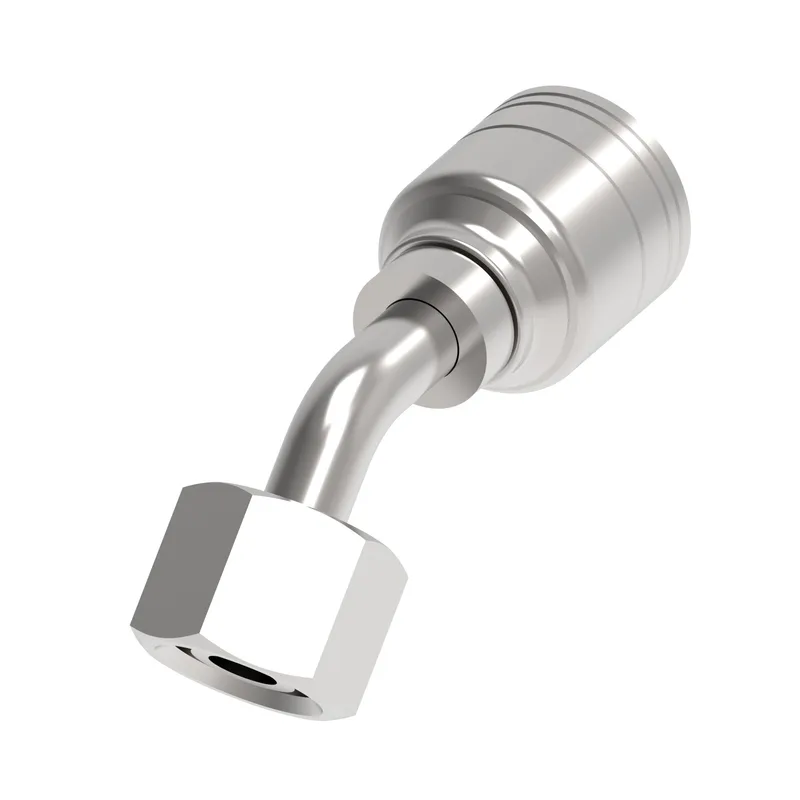

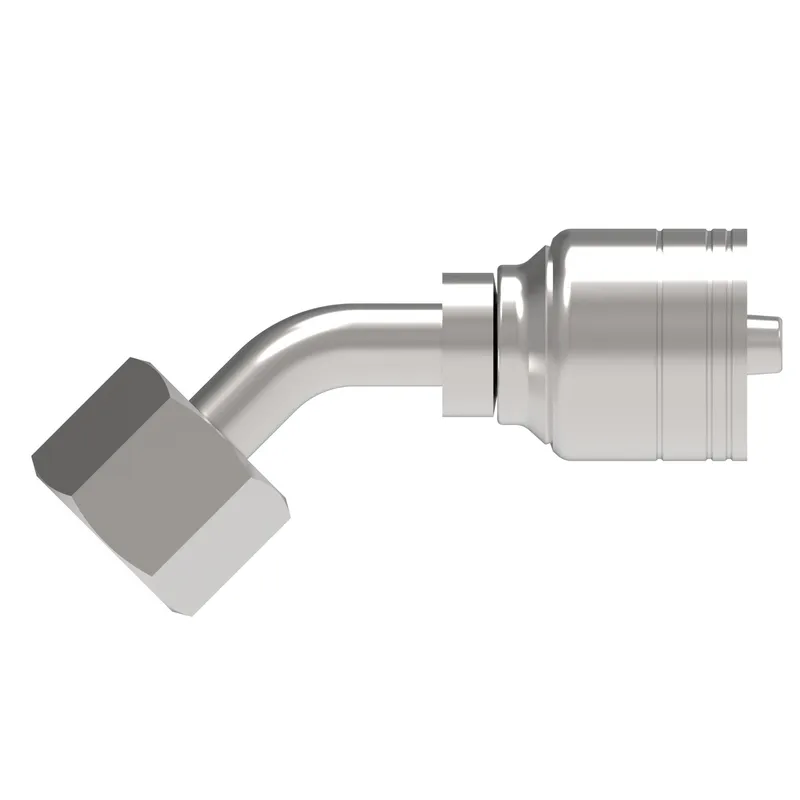

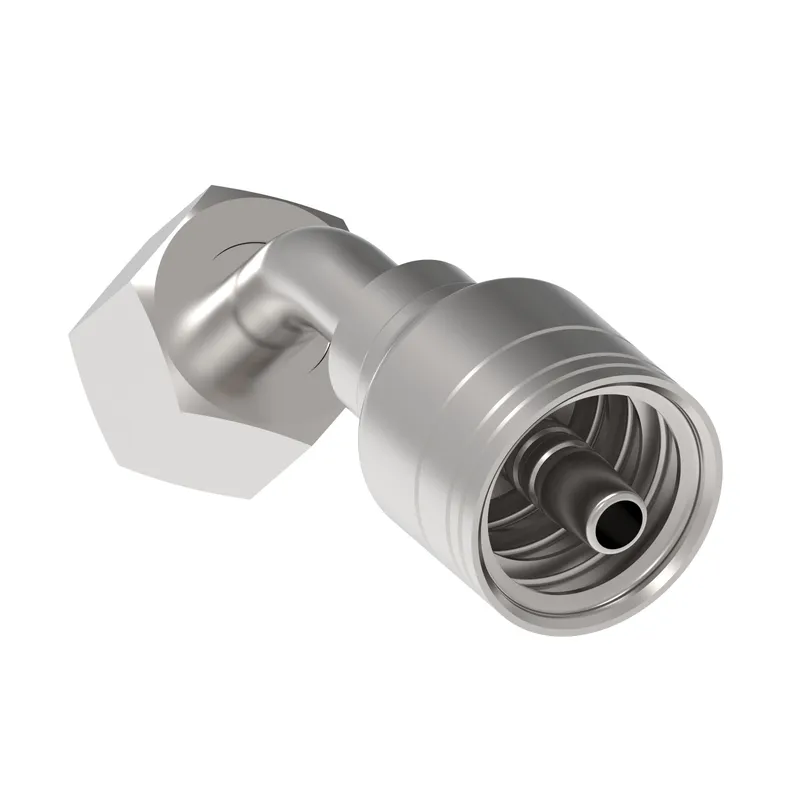

Danfoss 1A12DLA10

HOSE FTG, 1A/10, DKOL/12, CS, 45D

MPN: 1A12DLA10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A12DLA10?

Danfoss HOSE FTG, 1A/10, DKOL/12, CS, 45D, manufacturer part number 1A12DLA10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.450
A dimension MM	87.700
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	0.920
Drop dimension MM	23.40
End connection torque	43-48 lb-ft(59-64 Nm)
End size 1	-12
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	2.300
Hose cut off factor MM	58.300
Hose size	-10
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.145
Product height mm	54.500
Product length in	3.984
Product length mm	101.200
Product material	Carbon steel
Product width in	1.386
Product width mm	35.2
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.590
Tube OD 1 MM	15.000
Working pressure max BAR	215.00
Working pressure max PSI	3125.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
