Danfoss 16711-05-05Z

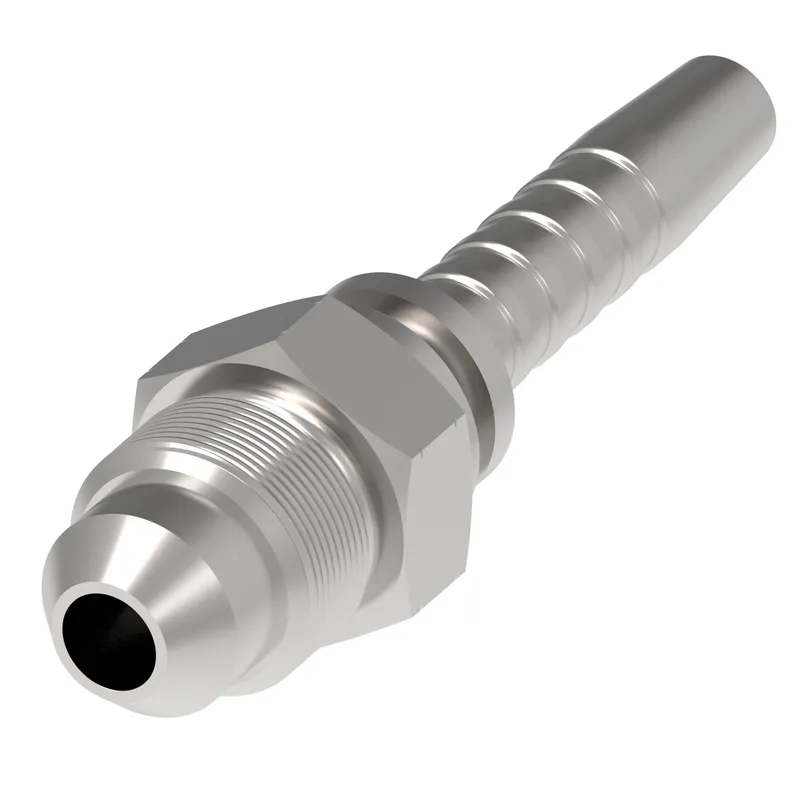

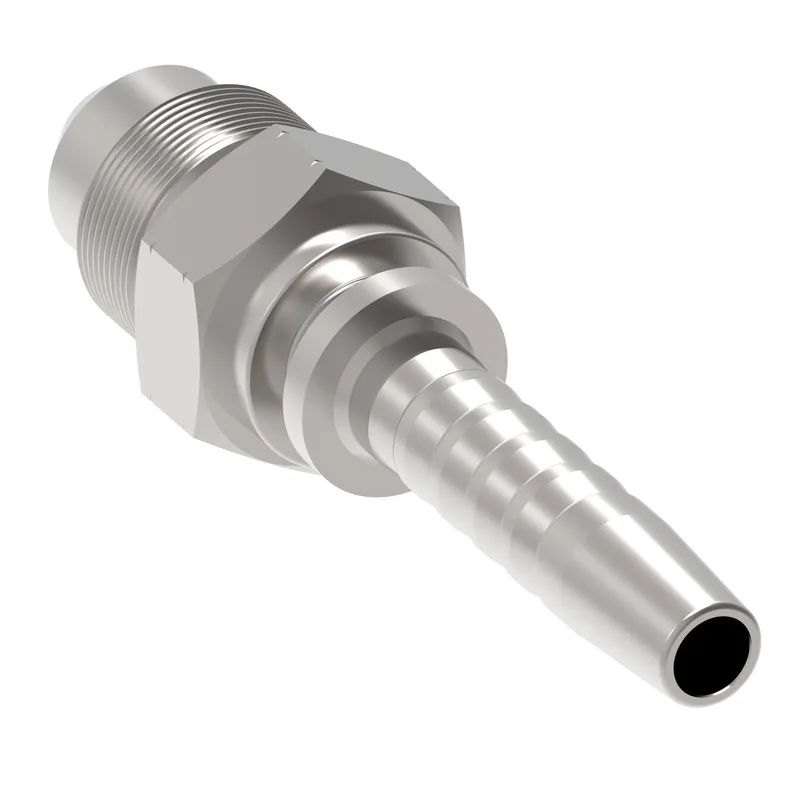

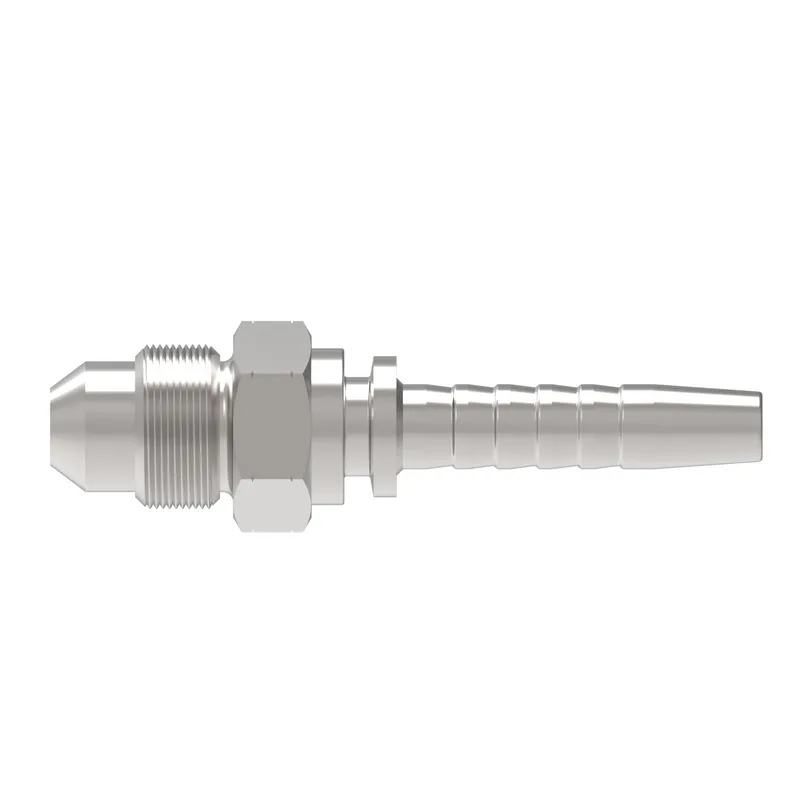

HOSE NIPPLE ASSY,2P/05,JIC-M/05,CS,STR

MPN: 16711-05-05Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711-05-05Z?

Danfoss HOSE NIPPLE ASSY,2P/05,JIC-M/05,CS,STR, manufacturer part number 16711-05-05Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.140
A dimension MM	54.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End Type 1	Male 37 degree
Finish plating	Zinc plating
Hose cut off factor IN	1.040
Hose cut off factor MM	26.500
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	0.640
Product height mm	16.256
Product length in	2.140
Product length mm	54.356
Product material	Carbon steel
Product width in	0.550
Product width mm	13.97
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	1/2-20 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

16711-05-05Z: frequently asked questions

When can 16711-05-05Z be shipped?

16711-05-05Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16711-05-05Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16711-05-05Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16711-05-05Z, subject to availability and destination.
