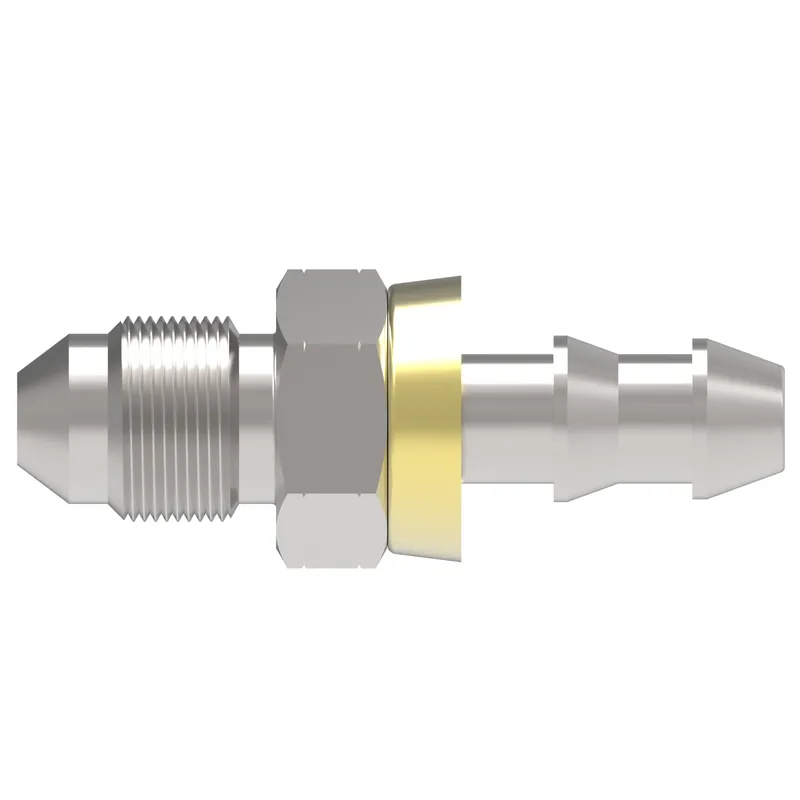

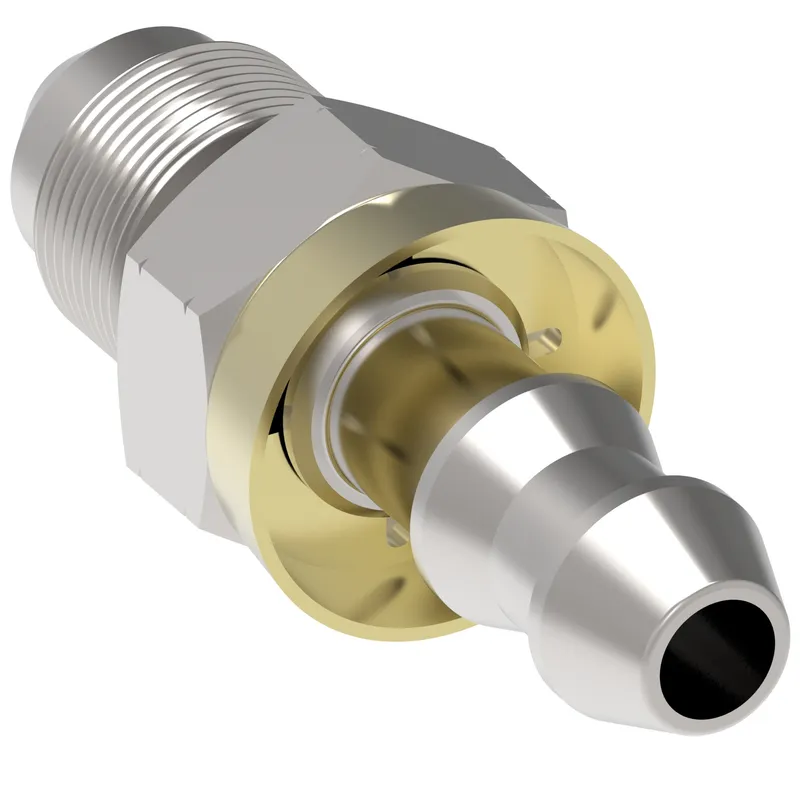

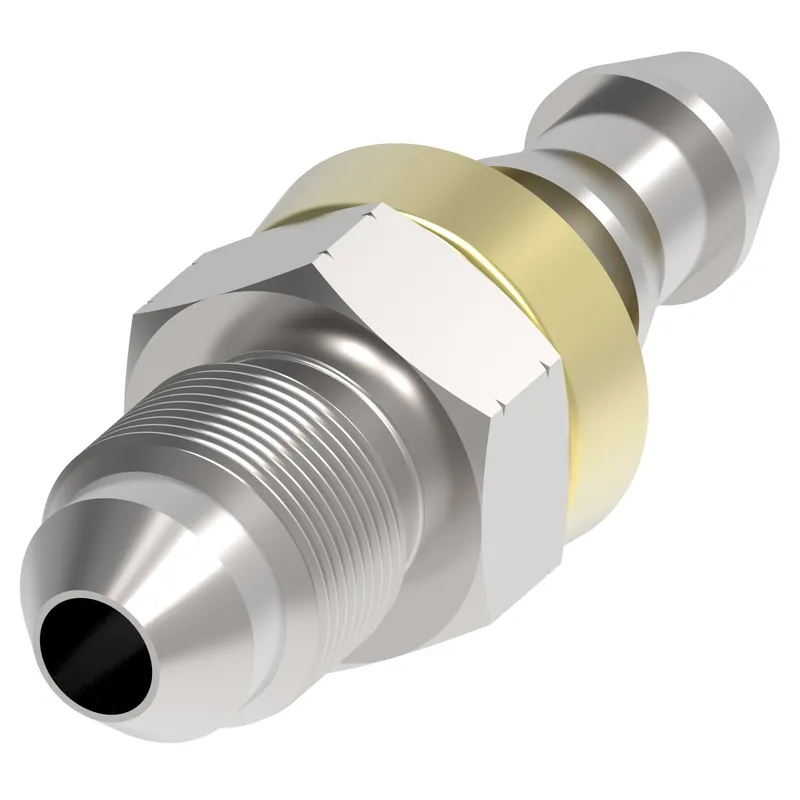

Danfoss 16710-04-04Z

HOSE NIPPLE ASSY,2P/04,JIC-M/04,CS,STR

MPN: 16710-04-04Z
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16710-04-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,JIC-M/04,CS,STR, manufacturer part number 16710-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.630
A dimension MM	41.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	11-12 lb-ft(15-16 Nm)
End size 1	-4
End type 1	Male 37 degree
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hose cut off factor IN	0.850
Hose cut off factor MM	21.700
Hose size	-4
Inside diameter IN	0.1700
Inside diameter MM	4.4000
Product height in	0.640
Product height mm	16.256
Product length in	1.633
Product length mm	41.478
Product material	Carbon steel
Product width in	0.550
Product width mm	13.970 mm
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	7/16-20 UNF
