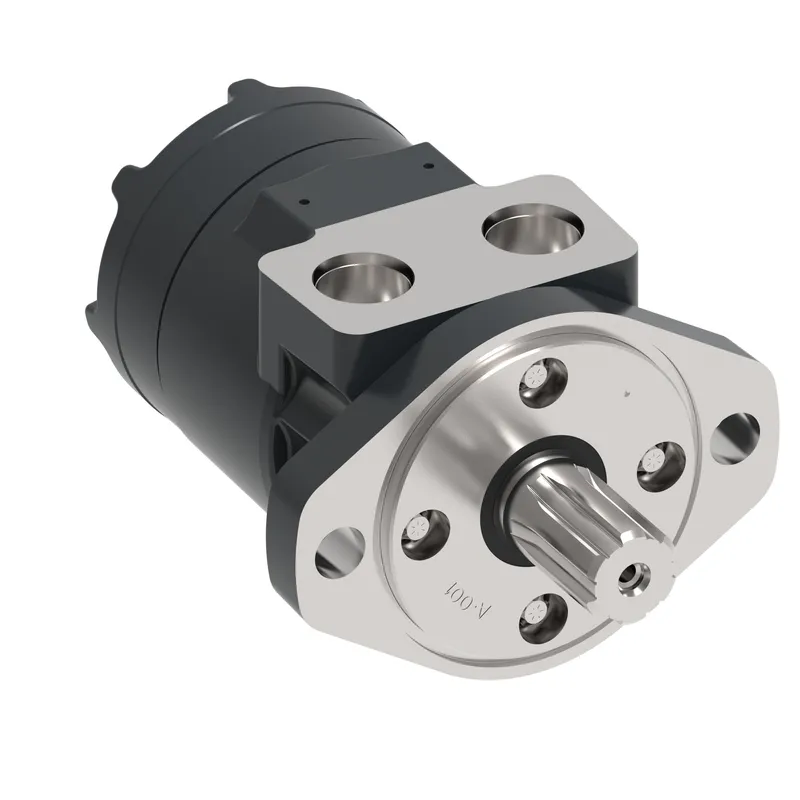

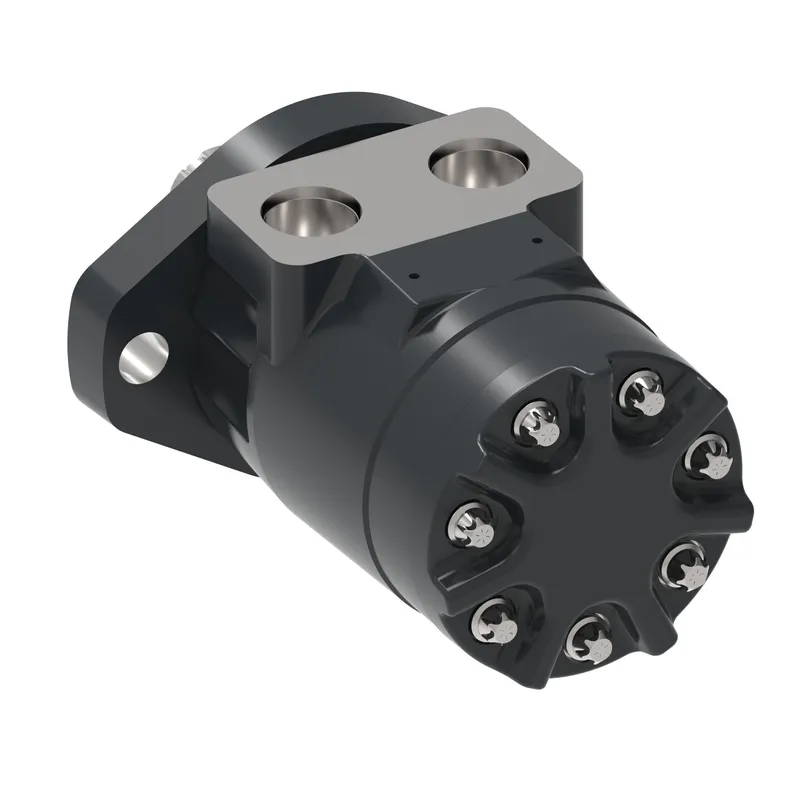

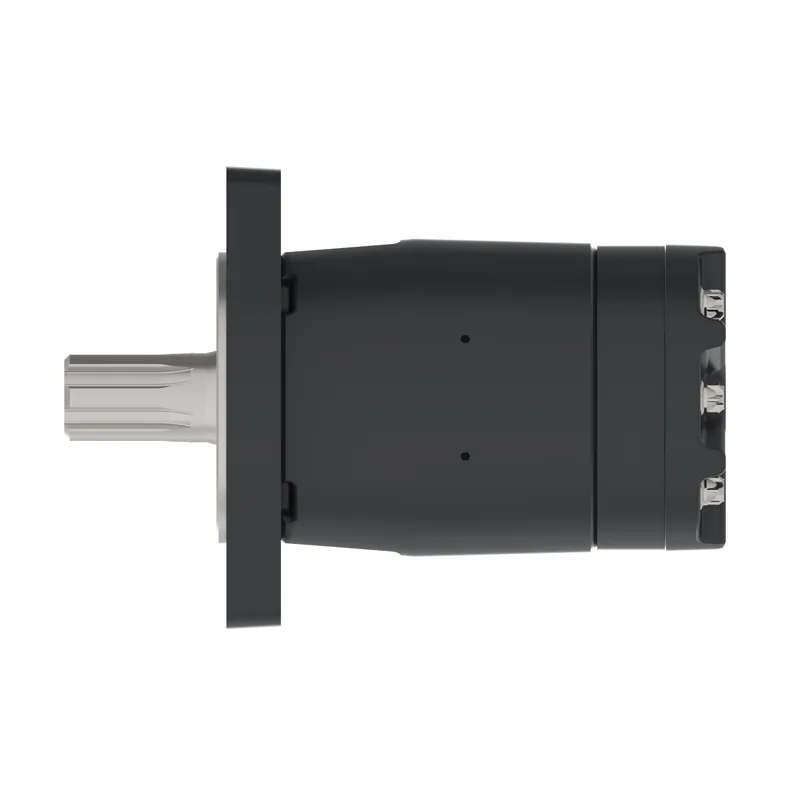

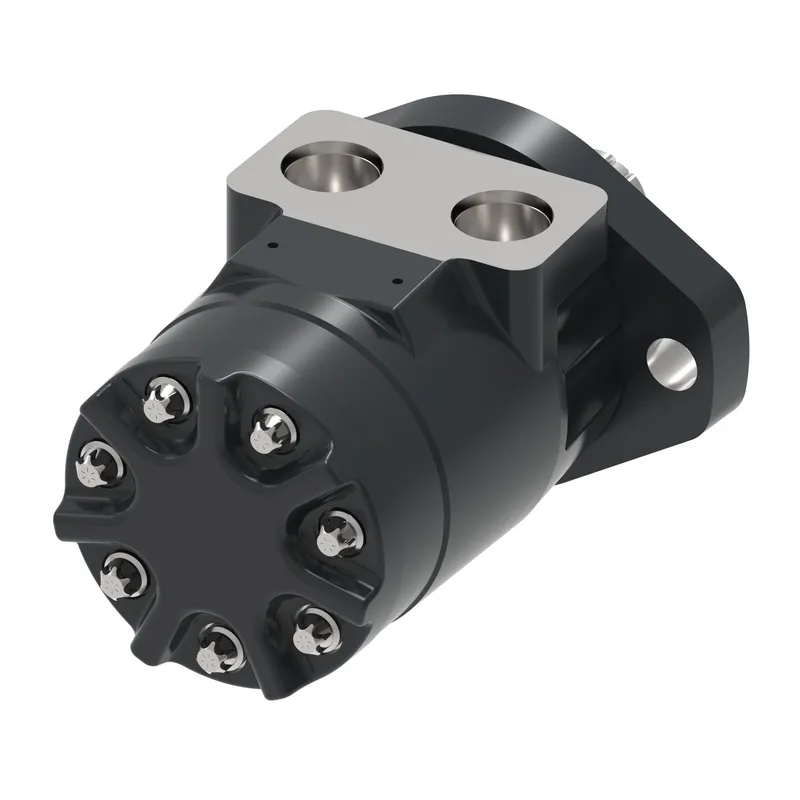

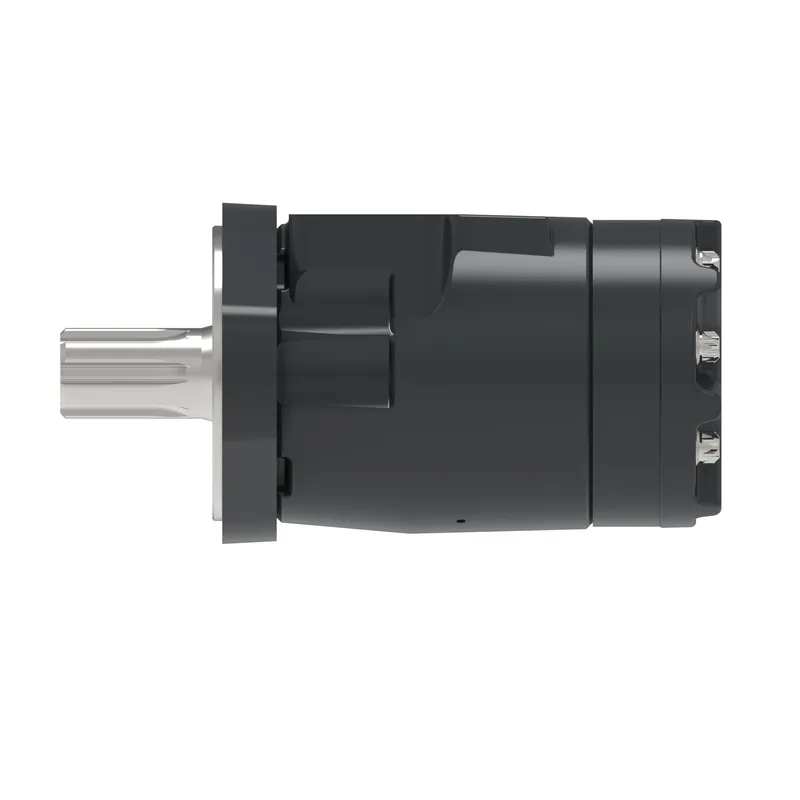

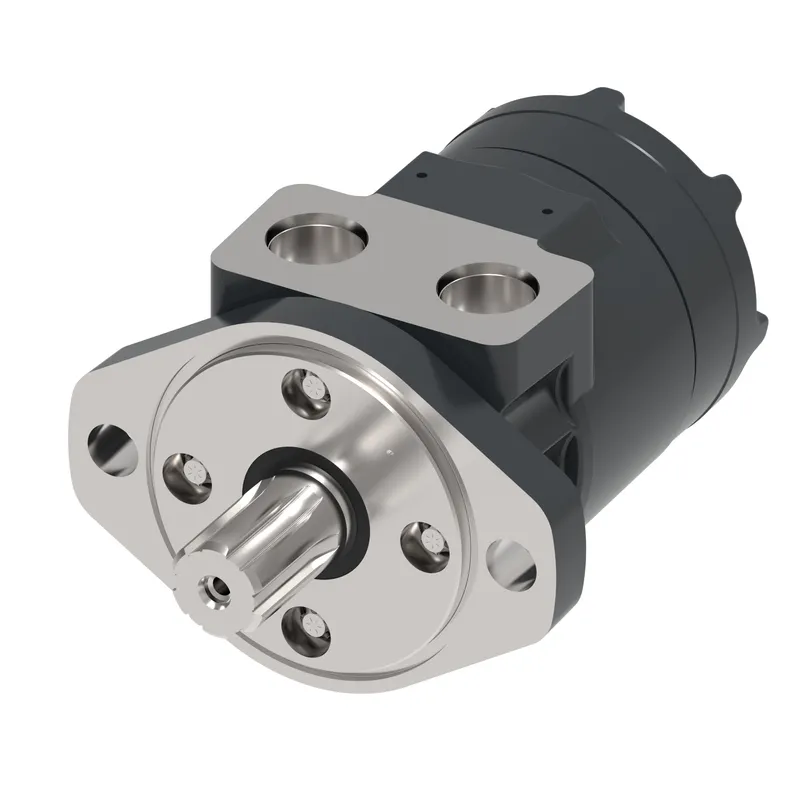

Danfoss 158-2692-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096AA02AA0000000000AB0AA00A

MPN
158-2692-001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 158-2692-001?

Danfoss MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096AA02AA0000000000AB0AA00A, manufacturer part number 158-2692-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeMT0096AA02AA0000000000AB0AA00A
Motor SeriesT Series
Valve systemSpool valve
Orbital gearwheel set typeGeroler
Motor size160
Geometric displacement [cm3/r [in3/r]]158 [9.6]
Motor typeStandard
Motor functionHigher efficiency and smooth running (Low speed valving)
Mounting flange type2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]
Shaft typeSplined
Shaft dimensionDia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end
Shaft Keyn/a
Main port thread typeUN / UNF
Main port styleSideport - aligned
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Drain Port DimensionNone
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPrimer, Black, Low gloss
Special Features AssemblyStandard
Dust sealStandard
Shaft SealNBR - Standard
Seal Kit9900808-000
Front bearing typeJournal bearing
Rear bearing typeJournal bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingNo data available
Name TagDanfoss name tag
Design code01
