Danfoss 15611-F02-04ZF

HOSE NIPPLE ASSY,2P/04,NPTF-M/02,CS,STR

MPN
15611-F02-04ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

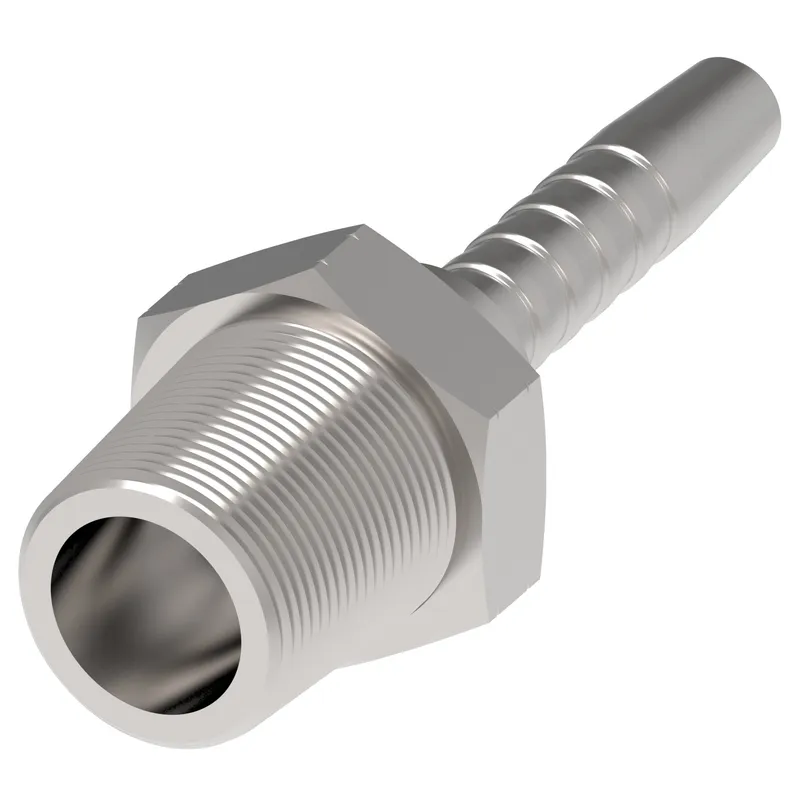

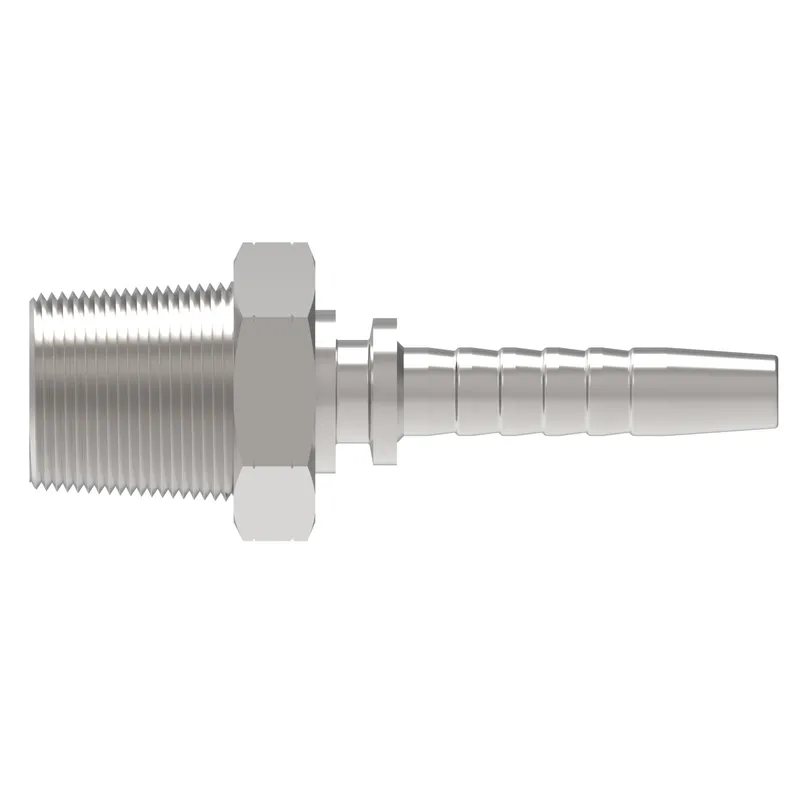

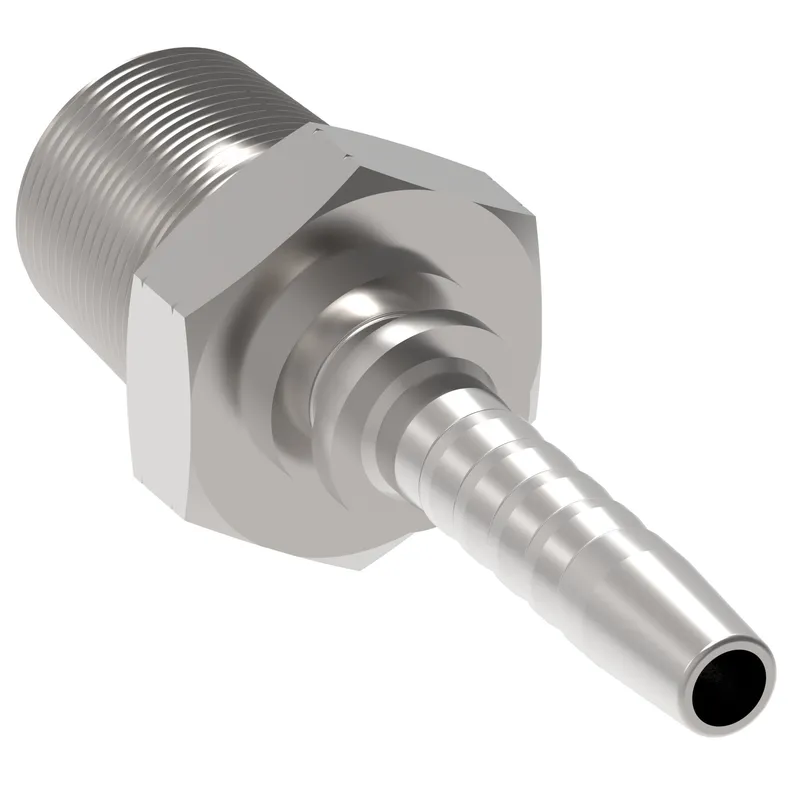

What is the Danfoss 15611-F02-04ZF?

Danfoss HOSE NIPPLE ASSY,2P/04,NPTF-M/02,CS,STR, manufacturer part number 15611-F02-04ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146191571
A dimension IN1.990
A dimension MM50.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Compatible hoses EC110, EC115, EC118, EC210, EC215
Construction StyleCrimp
End size 1-2
End Type 1Male pipe (NPTF)
Finish platingZinc plating
Hex size 1 IN0.472
Hex size 1 MM11.989
Hex size 2 MM12.000
Hose cut off factor IN0.890
Hose cut off factor MM22.500
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.540
Product height mm13.716
Product length in1.990
Product length mm50.546
Product materialCarbon steel
Product width in0.472
Product width mm11.988
SeriesWinner 2-Piece
Thread sealantNo
Thread size 11/8-27 NPTF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

15611-F02-04ZF: frequently asked questions

When can 15611-F02-04ZF be shipped?

15611-F02-04ZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 15611-F02-04ZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 15611-F02-04ZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15611-F02-04ZF, subject to availability and destination.
