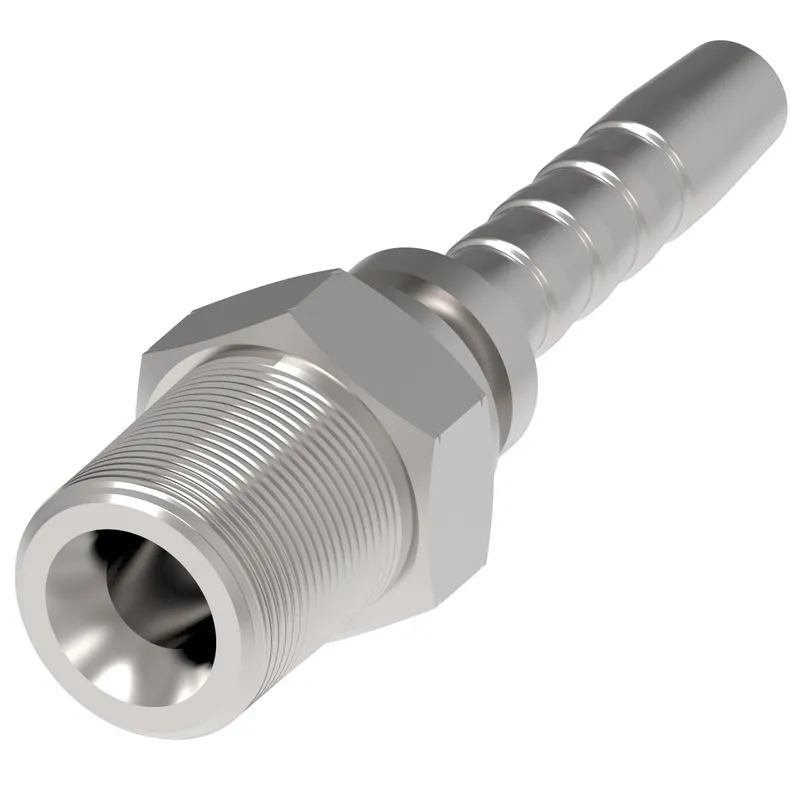

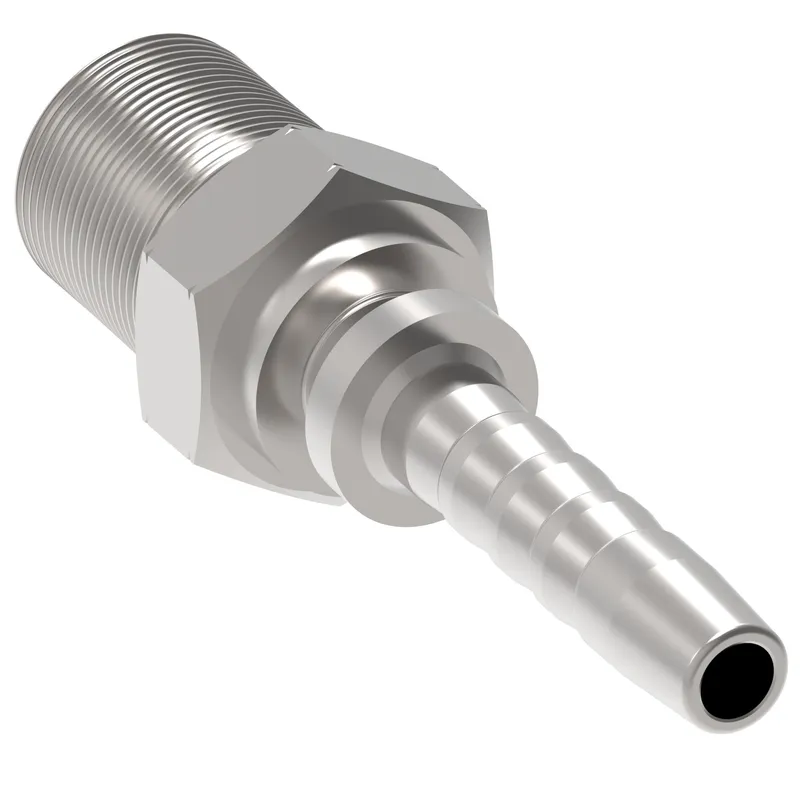

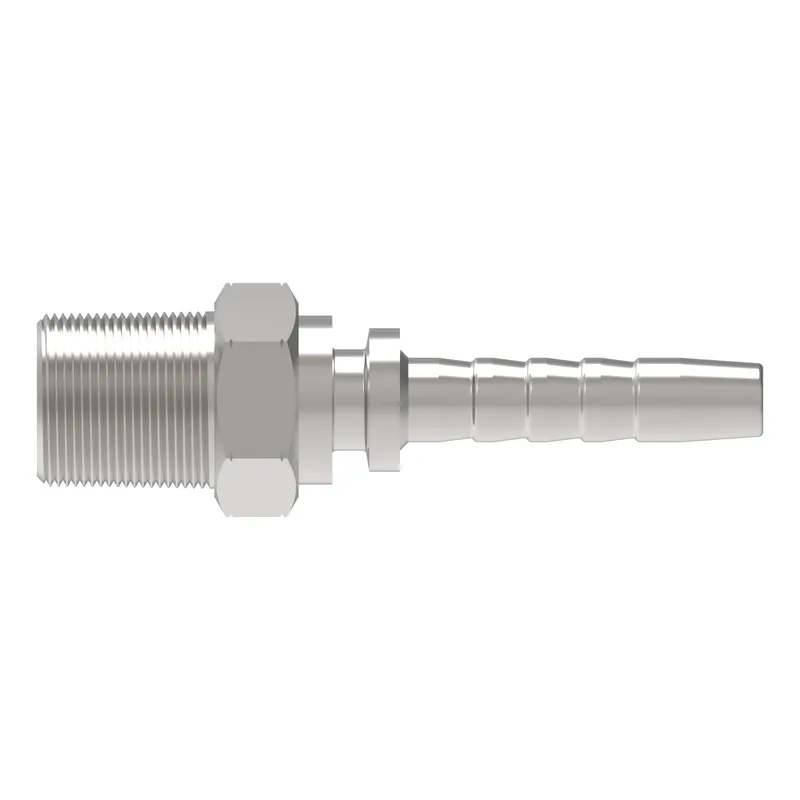

Danfoss 15611-48-48Z

HOSE NIPPLE ASSY,2P/48,NPT-M/48,CS,STR

MPN
15611-48-48Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 15611-48-48Z?

Danfoss HOSE NIPPLE ASSY,2P/48,NPT-M/48,CS,STR, manufacturer part number 15611-48-48Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN6.290
A dimension MM160.000
Angle shapeStraight
ApplicationGeneral industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
BrandWinner by Danfoss
Compatible hose ID IN2.000
Compatible hose ID MM76.200
Construction StyleCrimp
End size 1-48
End Type 1Male pipe (NPT)
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN3.543
Hex size 1 MM90.000
Hose cut off factor IN2.970
Hose cut off factor MM75.500
Hose size-48
Inside diameter IN2.630
Inside diameter MM67.000
Product height in4.055
Product height mm103.000
Product length in6.299
Product length mm160.000
Product materialCarbon steel
Product width in3.543
Product width mm90
SeriesWinner 2-Piece
Thread sealantNo
Thread size 13/8-18 NPT
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

15611-48-48Z: frequently asked questions

When can 15611-48-48Z be shipped?

15611-48-48Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 15611-48-48Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 15611-48-48Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15611-48-48Z, subject to availability and destination.
