Danfoss 12611A-04-06Z

HOSE NIPPLE ASSY,2P/06,BSPJ/04,CS,STR

MPN
12611A-04-06Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12611A-04-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,BSPJ/04,CS,STR, manufacturer part number 12611A-04-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.145
A dimension MM54.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
End connection torque19-23 lb-ft(25-30 Nm)
End size 1-4
End Type 1Male BSPP 60 degree cone
Finish platingZinc plating
Hex size 1 IN0.750
Hex size 1 MM19.050
Hose cut off factor IN0.960
Hose cut off factor MM24.500
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in0.870
Product height mm22.098
Product length in2.150
Product length mm54.610
Product materialCarbon steel
Product width in0.750
Product width mm19.05
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1G 1/4
Working pressure max BAR450
Working pressure max PSI6550
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

12611A-04-06Z: frequently asked questions

When can 12611A-04-06Z be shipped?

12611A-04-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12611A-04-06Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12611A-04-06Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12611A-04-06Z, subject to availability and destination.

More Danfoss (Drives) parts

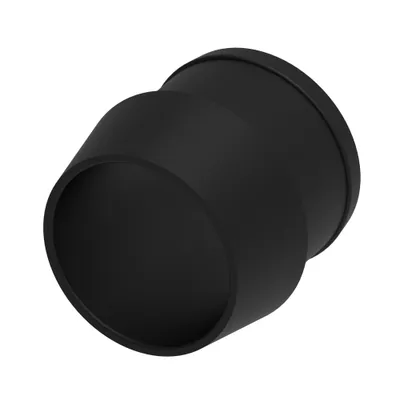

Danfoss 1260X8-BG – Adapter Misc 1/2 Sleeve
Danfoss
1260X8-BG

Adapter Misc 1/2 Sleeve

Danfoss 12611A-02-04Z – HOSE NIPPLE ASSY,2P/04,BSPJ/02,CS,STR
Danfoss
12611A-02-04Z

HOSE NIPPLE ASSY,2P/04,BSPJ/02,CS,STR

Danfoss 12611A-04-04Z – HOSE NIPPLE ASSY,2P/04,BSPJ/04,CS,STR
Danfoss
12611A-04-04Z

HOSE NIPPLE ASSY,2P/04,BSPJ/04,CS,STR

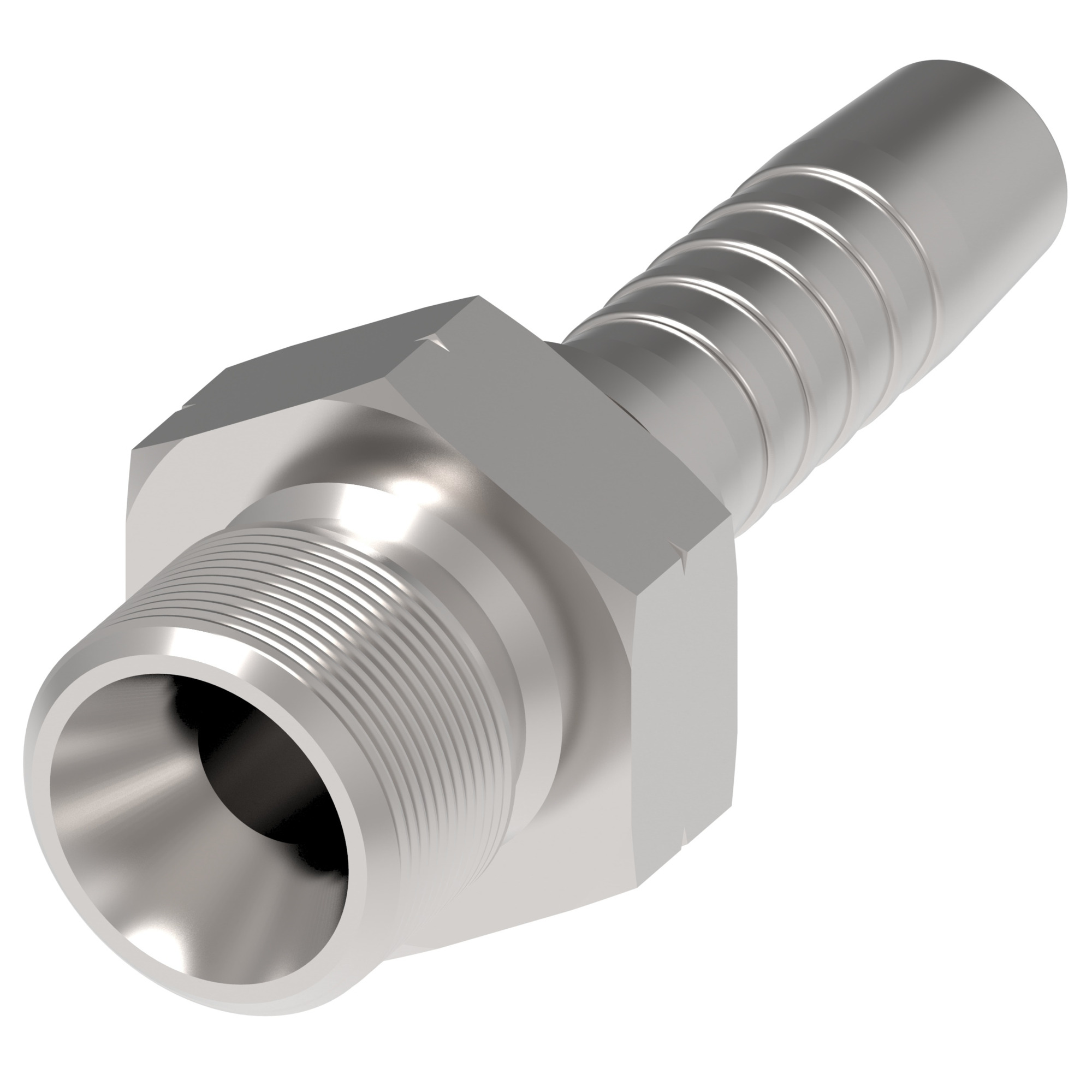

Danfoss 12611A-04-05Z – HOSE NIPPLE ASSY,2P/05,BSPJ/04,CS,STR
