Danfoss 12611A-02-04Z

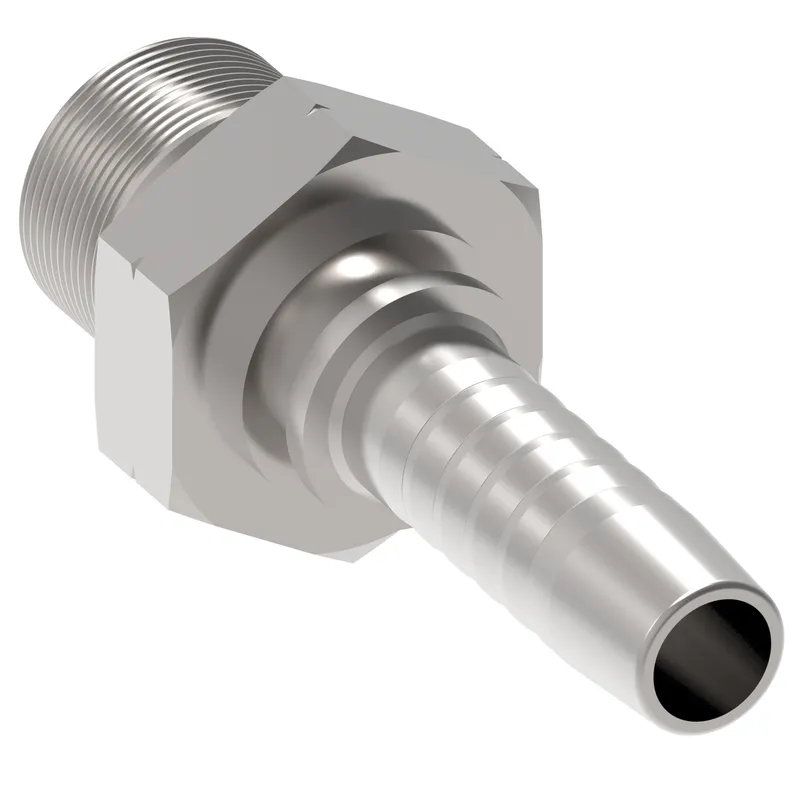

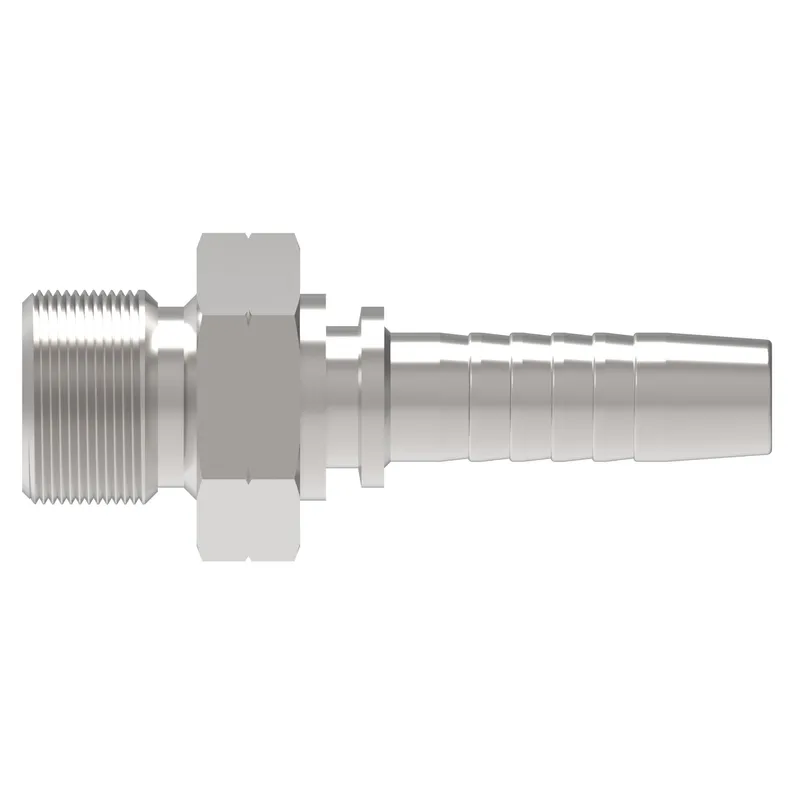

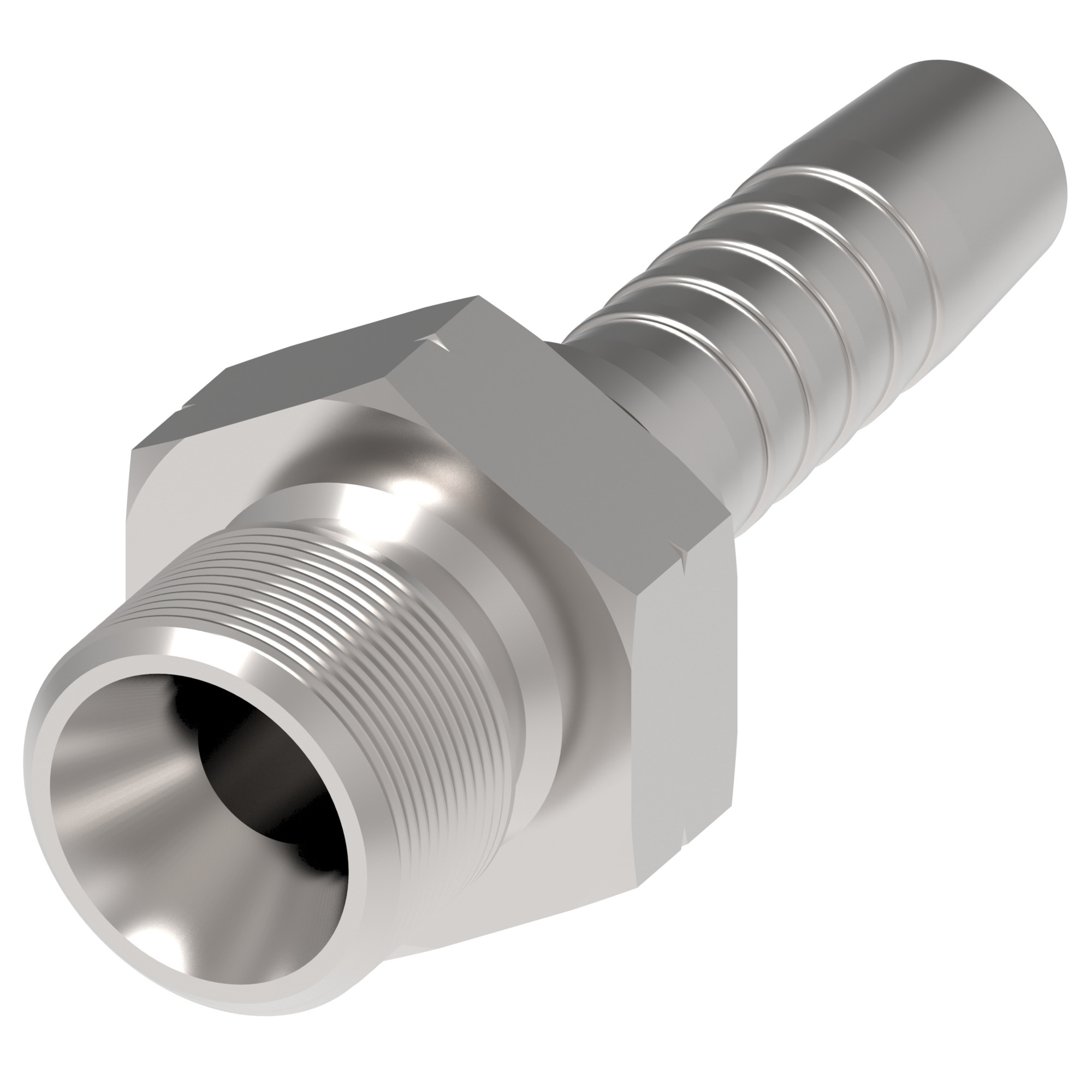

HOSE NIPPLE ASSY,2P/04,BSPJ/02,CS,STR

MPN
12611A-02-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12611A-02-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,BSPJ/02,CS,STR, manufacturer part number 12611A-02-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN1.980
A dimension MM50.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection torque13-15 lb-ft(18-20 Nm)
End size 1-2
End Type 1Male BSPP 60 degree cone
Finish platingZinc plating
Hex size 1 IN0.551
Hex size 1 MM14.000
Hex size 2 IN0.000
Hose cut off factor IN0.885
Hose cut off factor MM22.500
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.637
Product height mm16.200
Product length in1.988
Product length mm50.500
Product materialCarbon steel
Product width in0.551
Product width mm14
Proposition 65Cancer and Reproductive Harm
SeriesWinner 2-Piece
Thread size 1G 1/8
Working pressure max BAR350
Working pressure max PSI5100
Working temperature max C126
Working temperature max F260
Working temperature min C-46
Working temperature min F-50

12611A-02-04Z: frequently asked questions

When can 12611A-02-04Z be shipped?

12611A-02-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12611A-02-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12611A-02-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12611A-02-04Z, subject to availability and destination.

More Danfoss (Drives) parts

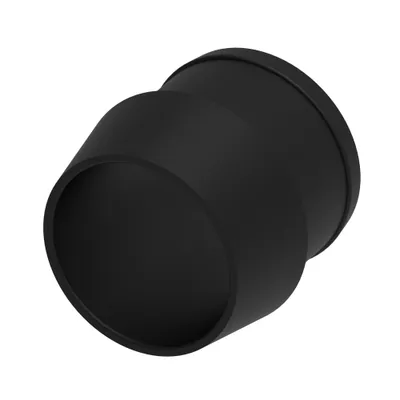

Danfoss 1260X6 – PLASTIC SLEEVES
