Danfoss 123AL02022A

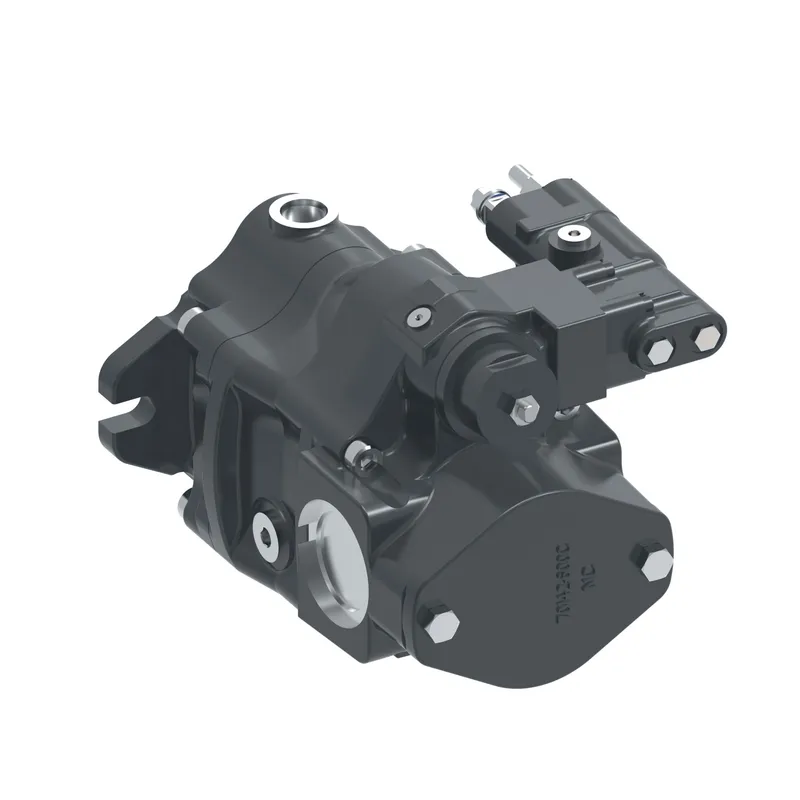

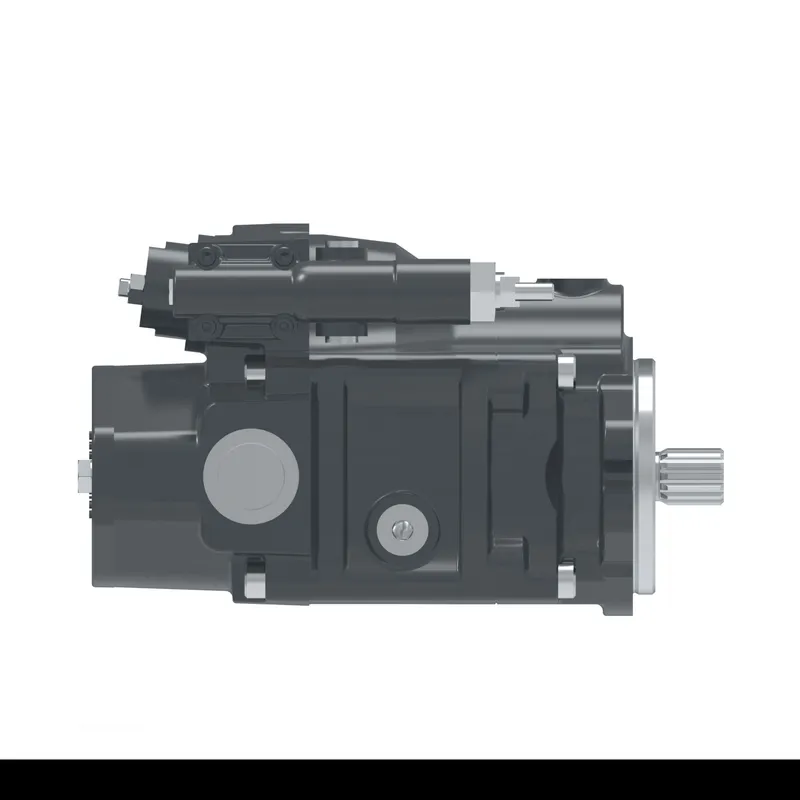

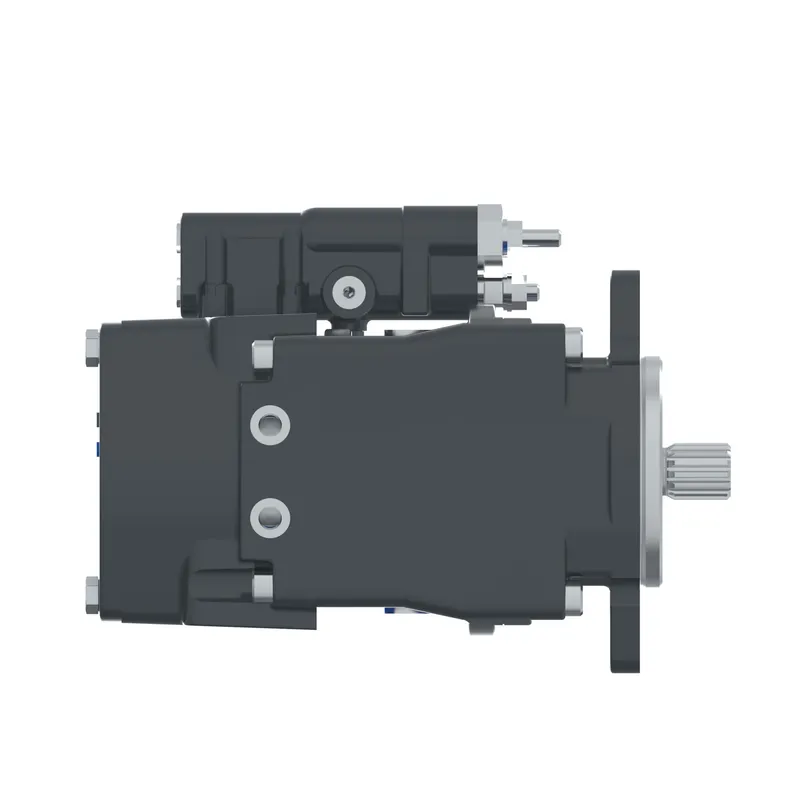

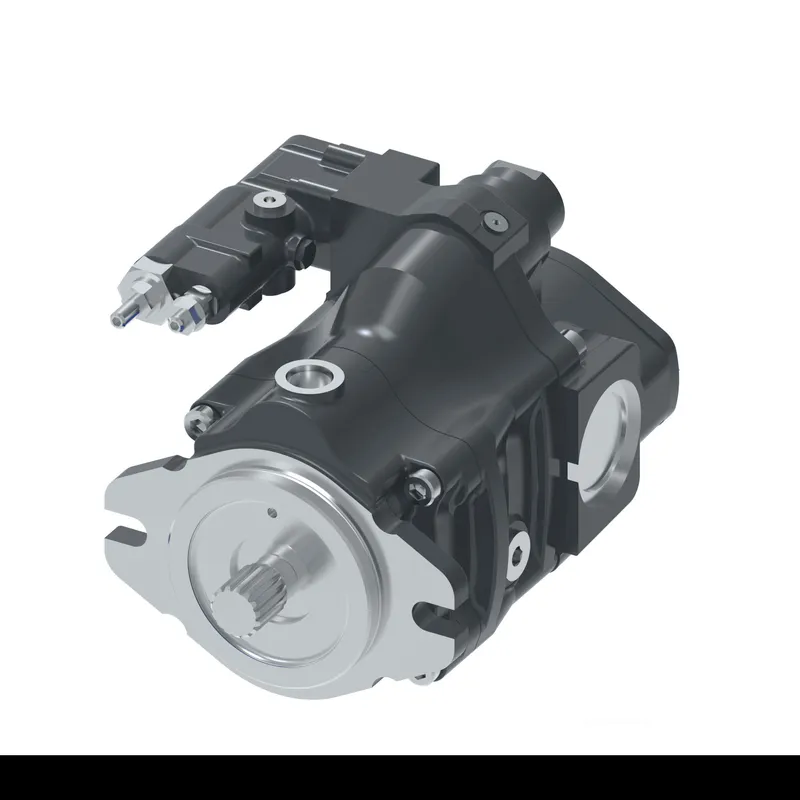

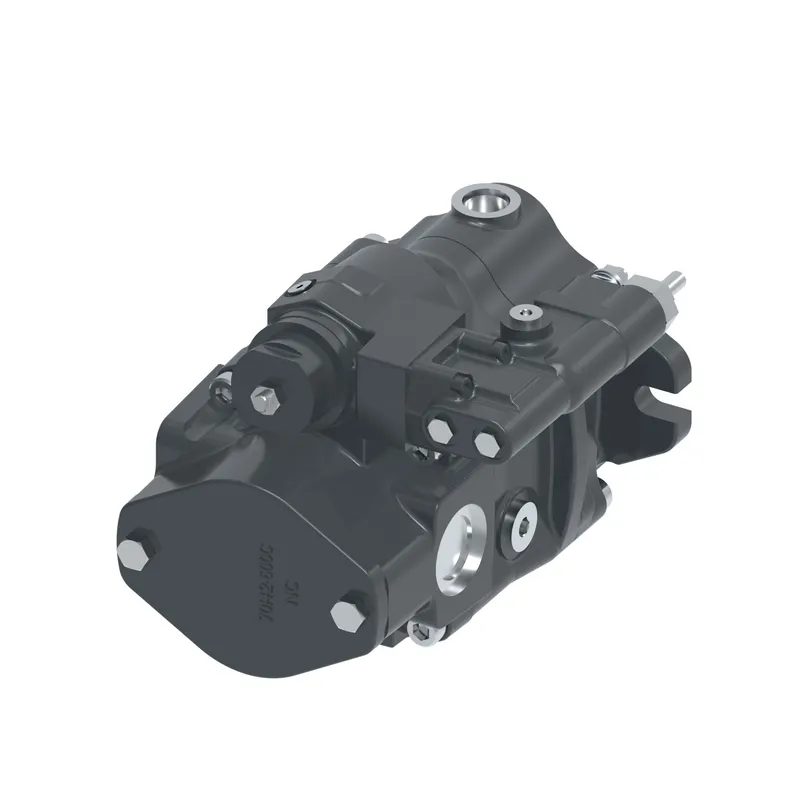

PVM018ER07CS01AAB23200001A0A, PVM018ER07CS01AAB23200001A0A

MPN: 123AL02022A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL02022A?

Danfoss PVM018ER07CS01AAB23200001A0A, PVM018ER07CS01AAB23200001A0A, manufacturer part number 123AL02022A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

DISPLACEMENT	18.0 cm3/r [1.1 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-22-4 SAE B 13T SPLINE (MODEL 018 028 045 AND 057)
Mounting Flange	SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J514 TUBE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE AND FLOW COMPENSATOR WITH BLEED DOWN ORIFICE
PRESSURE COMP SET	227-234 BAR [3277-3393 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	19-21 BAR [275.5-304.5 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	AUXILIARY MOUNT COVER PLATE
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 18cc Pump
Model Code 1	PVM018ER07CS01AAB23200001A0A
