Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL02021A

Danfoss (Drives)

Danfoss 123AL02021A

PVM018ER07CS01AAA2300000 1A0A, PVM018ER07CS01AAA2300000 1A0A

MPN: 123AL02021A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL02021A?

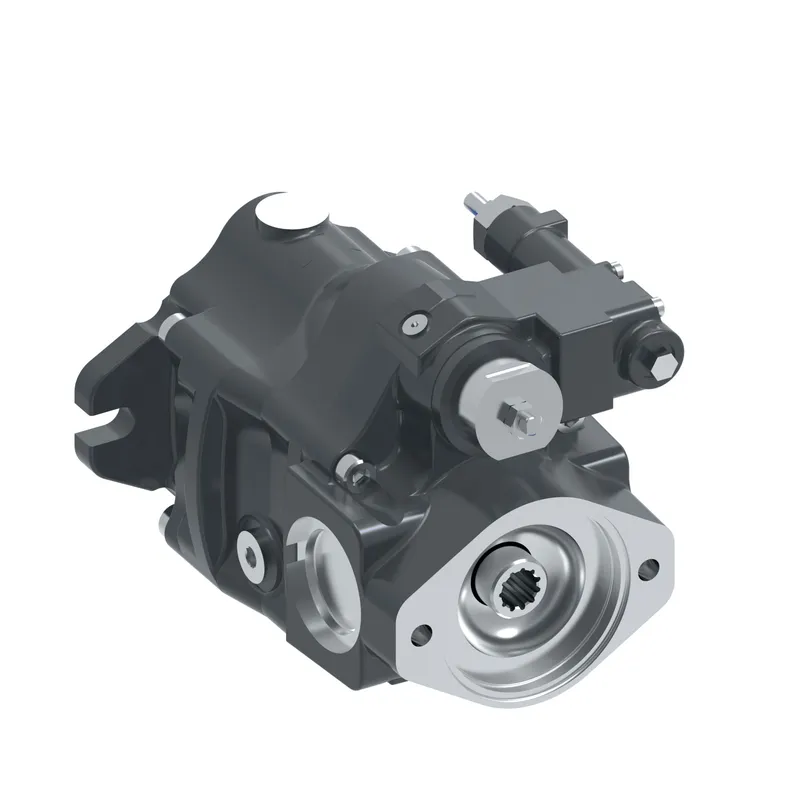

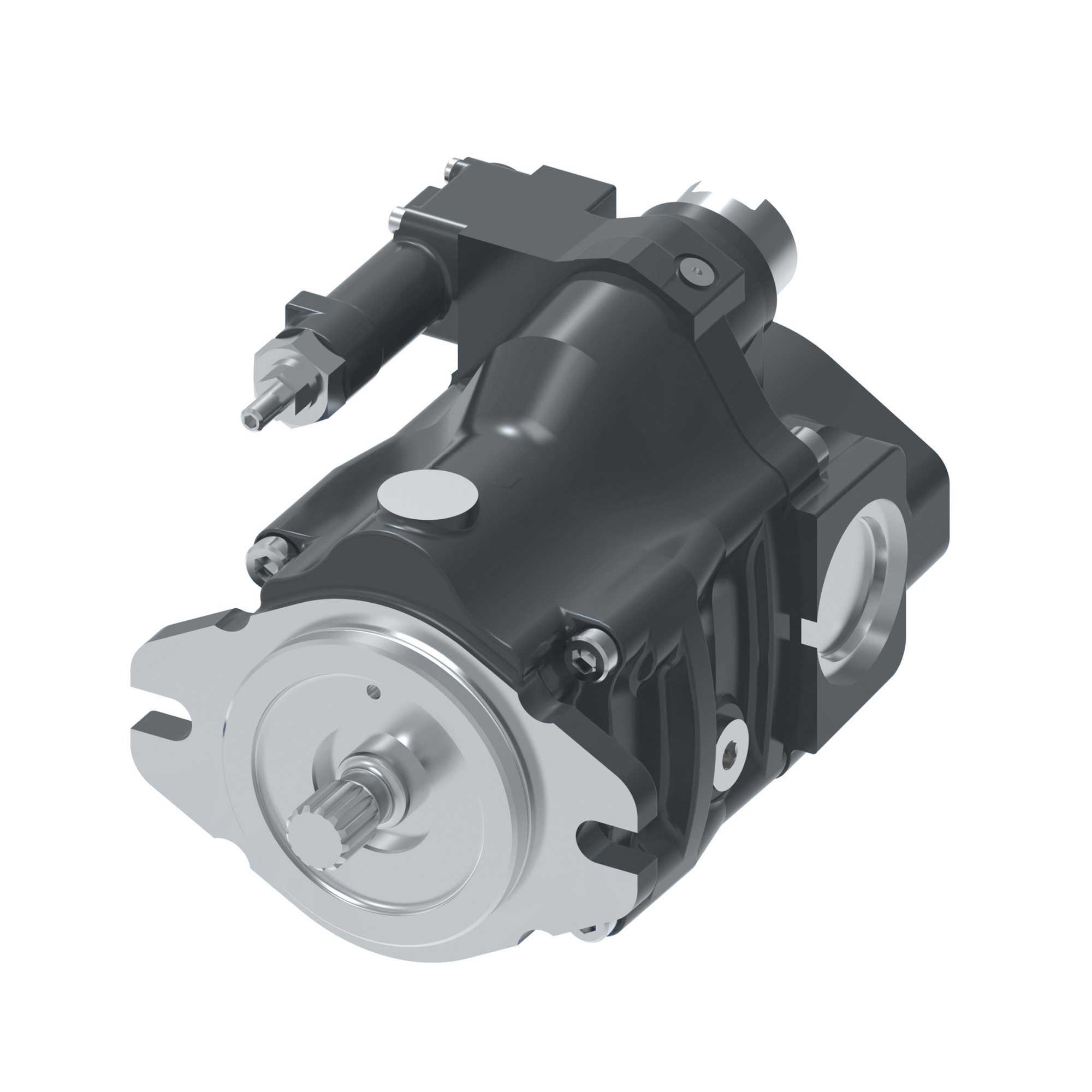

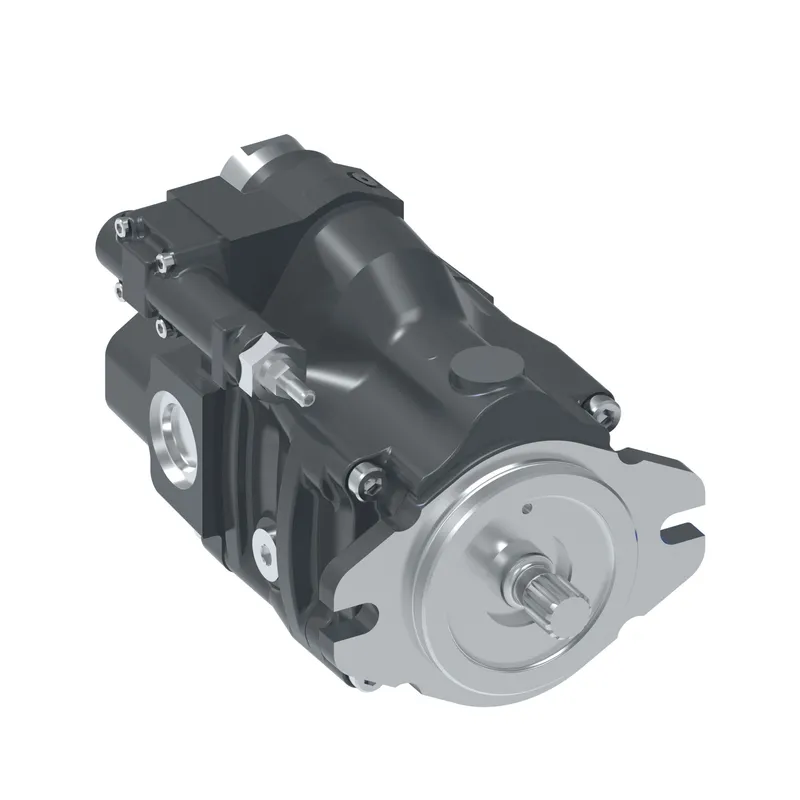

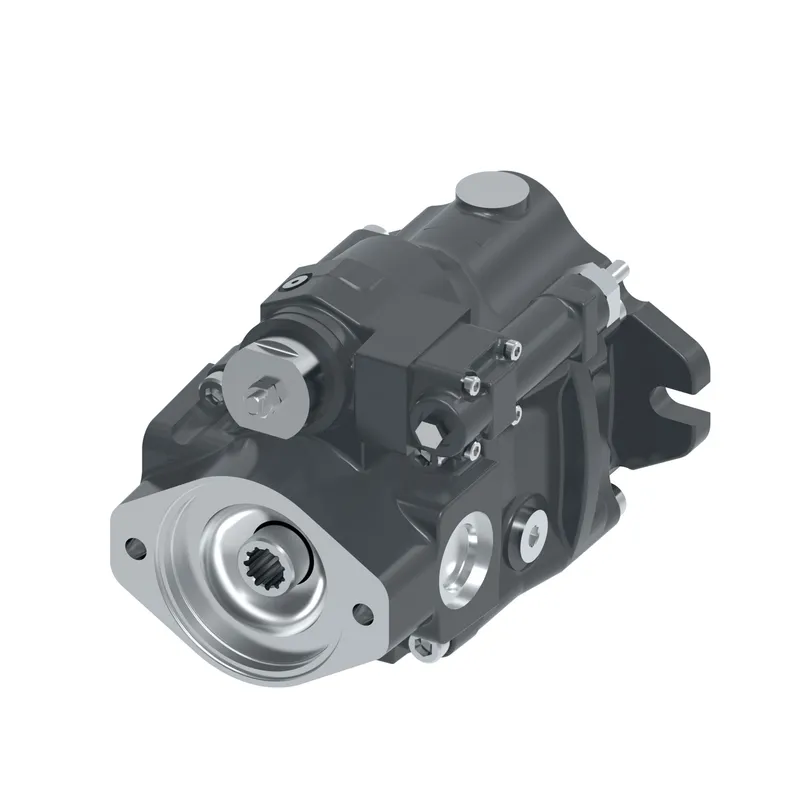

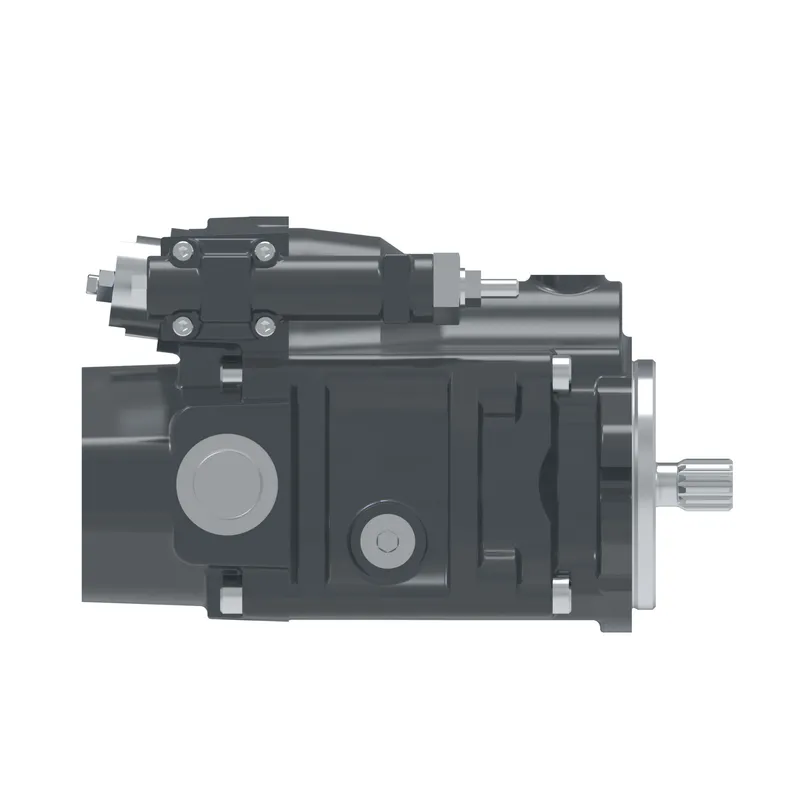

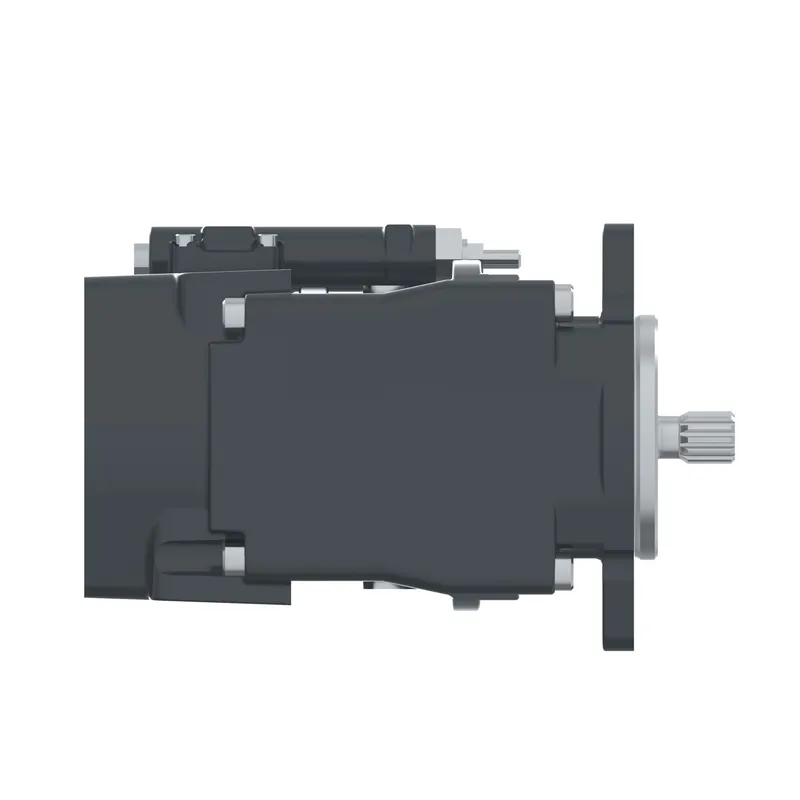

Danfoss PVM018ER07CS01AAA2300000 1A0A, PVM018ER07CS01AAA2300000 1A0A, manufacturer part number 123AL02021A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	018 - REFER LONG DESCRIPTION
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	07 - REFER LONG DESCRIPTION
Mounting Flange	C - REFER LONG DESCRIPTION
MAIN PORT LOCATION	SIDE
PORT OPTIONS	01 - REFER LONG DESCRIPTION
PUMP SPECIAL FEATURES	AMDS (CONTAIN SSS)
CONTROL	PRESSURE COMPENSATOR
PRESSURE COMP SET	227-234 BAR[3277-3393 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	NONE
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	AUXILIARY MOUNT COVER PLATE
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	PVM - REFER LONG DESCRIPTION
IPM FRAME SIZE	PVM Code A 18cc Pump
Model Code 1	PVM018ER07CS01AAA2300000 1A0A
