Danfoss 12212Y-20-20Z

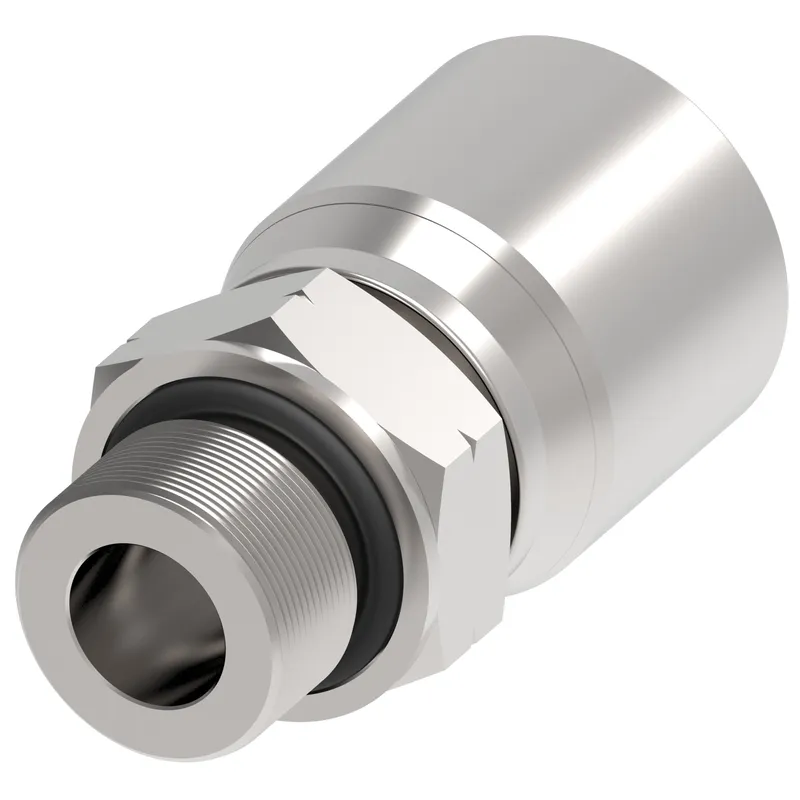

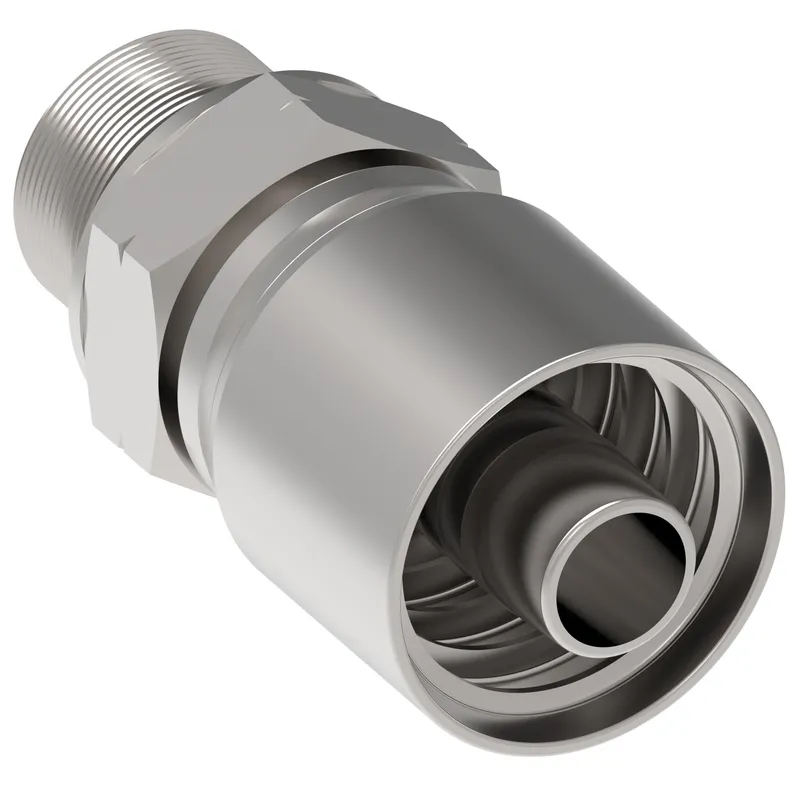

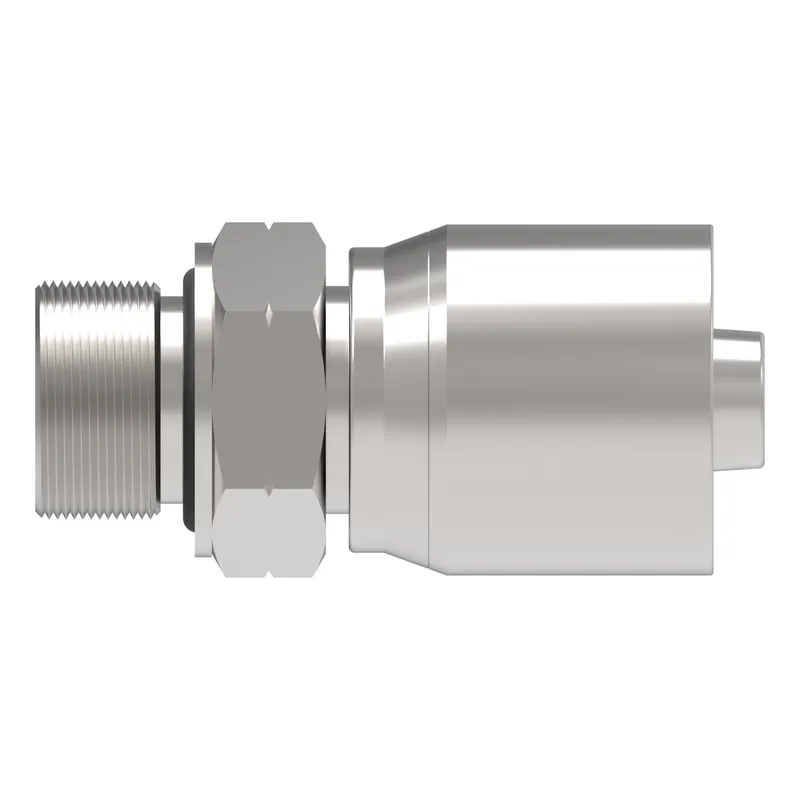

HOSE NIPPLE ASSY,1P/20,BSPP-M/20,CS,STR

MPN: 12212Y-20-20Z
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12212Y-20-20Z?

Danfoss HOSE NIPPLE ASSY,1P/20,BSPP-M/20,CS,STR, manufacturer part number 12212Y-20-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.937
A dimension MM	100.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End type 1	Male ORB BSPP
Finish plating	Zinc plating
Hex size 1 IN	1.960
Hex size 1 MM	49.784
Hose cut off factor IN	1.811
Hose cut off factor MM	46.000
Hose size	-20
Inside diameter IN	1.0620
Inside diameter MM	27.0000
Product height in	2.260
Product height mm	57.404
Product length in	1.810
Product length mm	45.974
Product material	Carbon steel
Product width in	1.960
Product width mm	49.784 mm
Thread sealant	No
Thread size 1	G 1 1/4
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

12212Y-20-20Z: frequently asked questions

When can 12212Y-20-20Z be shipped?

12212Y-20-20Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12212Y-20-20Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12212Y-20-20Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12212Y-20-20Z, subject to availability and destination.
