Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 11344336

Danfoss (Drives)

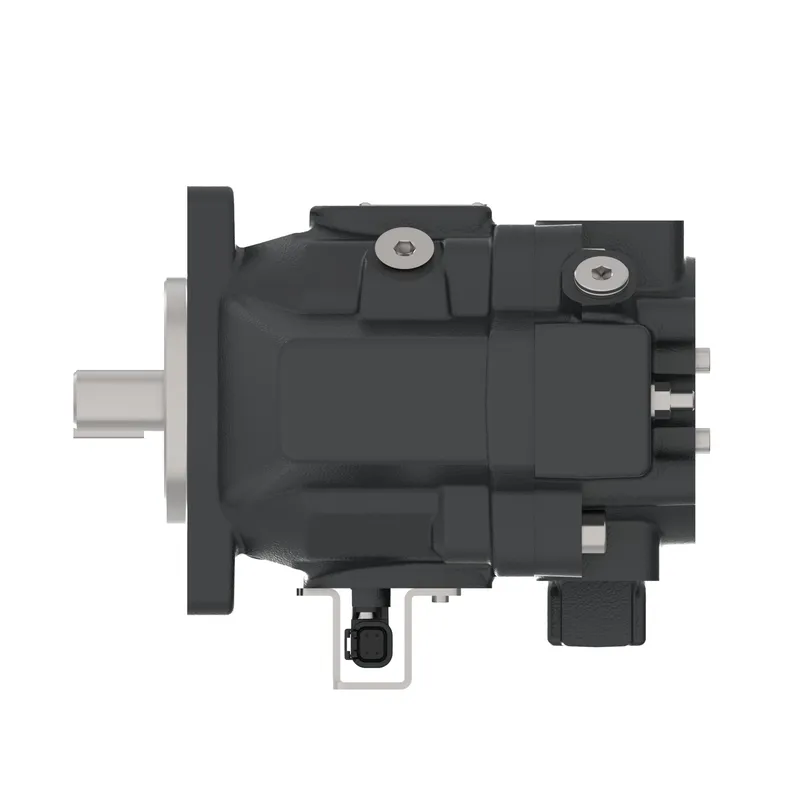

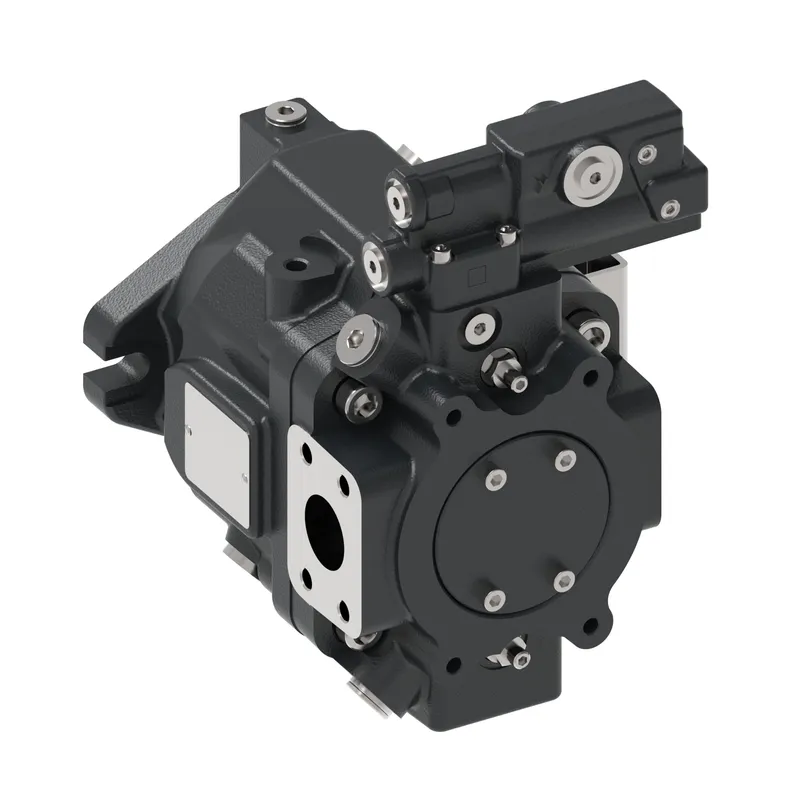

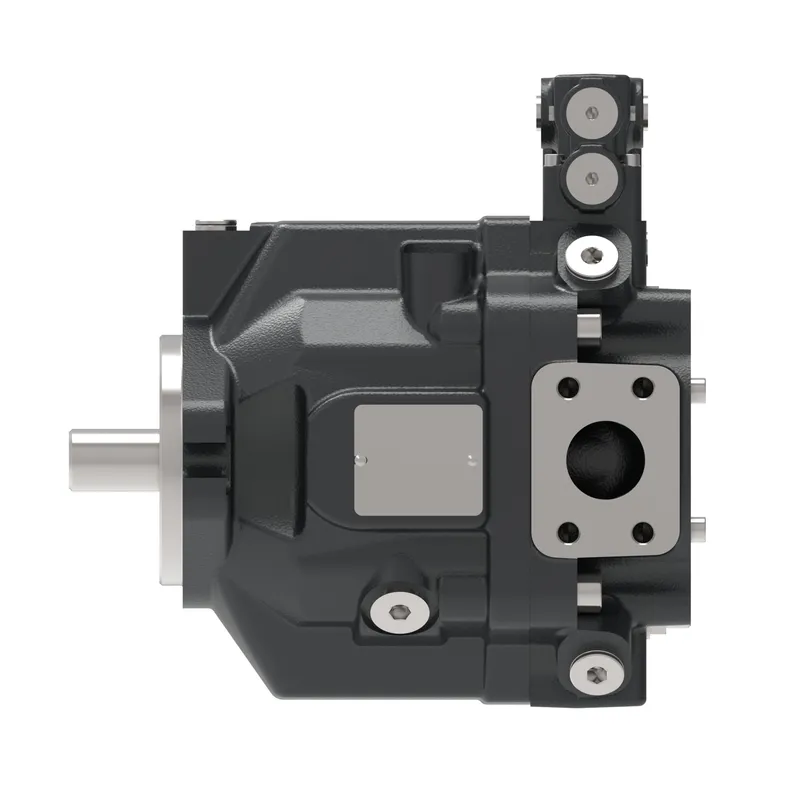

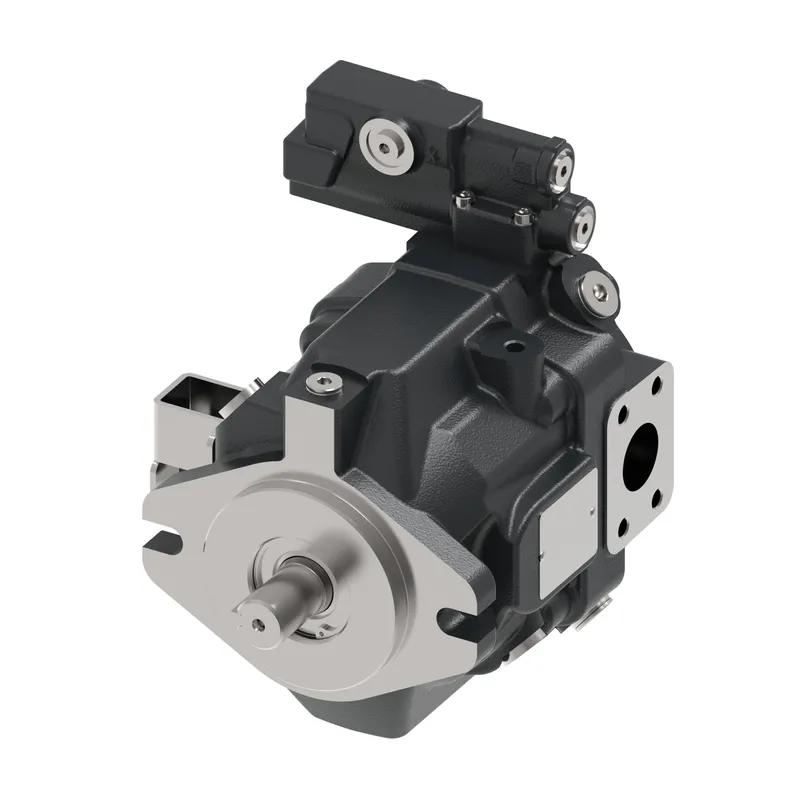

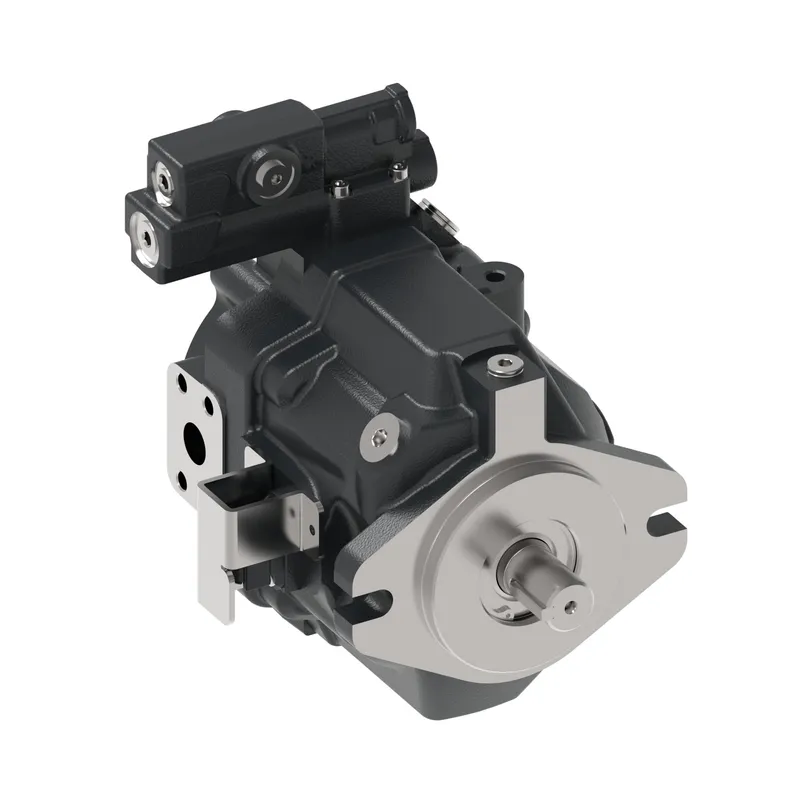

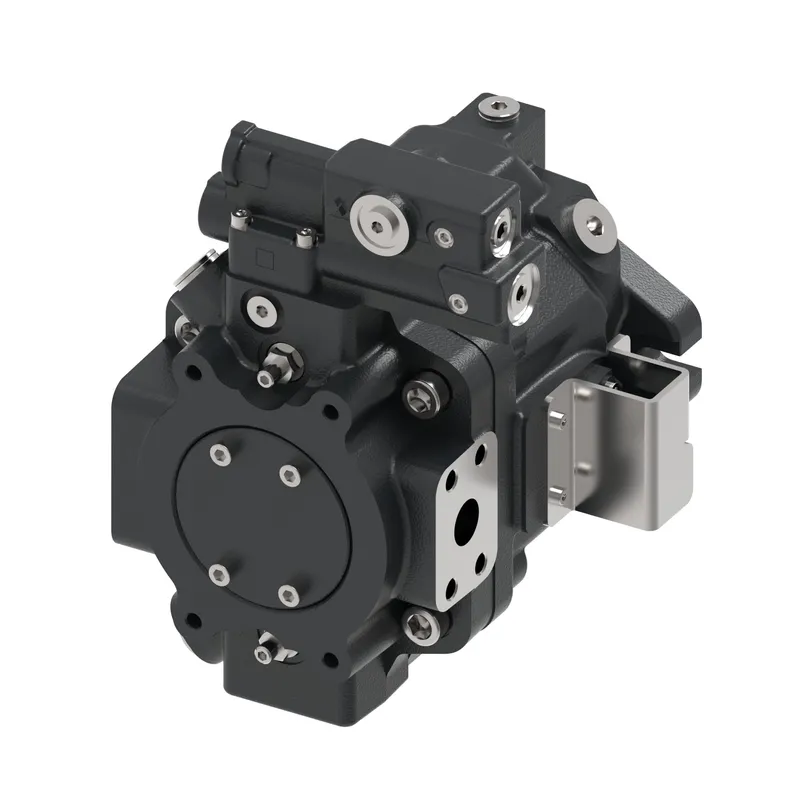

Danfoss 11344336

PVMX028R16M2W0B100AA-00000000

MPN: 11344336
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11344336?

Danfoss PVMX028R16M2W0B100AA-00000000, manufacturer part number 11344336. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

CODE TITLE	Variable displacement open circuit piston pumps
Displacement	28 cm3/r [1.7 in3/r]
Input rotation	Clockwise (right-hand)
Input shaft	DIN6885 STRAIGHT KEYED 22MM DIAMETER SHAFT (MODEL 28)
Mounting flange	ISO 3019/2-100A2HW (2Bolt) (MODEL 28)
Port options	Main ports - SAE J518 FLANGE PORTS (DRAIN PORT – SAE J1926-1, LOAD SENSE PORT – SAE J1926-1)
Control	Remote pressure control [20bar delta pressure default]
Pressure comp setting	100-280bar range 250±4 bar [1015±58 lbf/in2]- Default setting
Flow comp setting	10bar-40bar (DEFAULT 20±1bar [290±14.5 lbf/in2])
Power control setting	None
Auxiliary mounting	None (non-through drive)
Paint	Black [Default]
Design code	DESIGN VERSION A
Differentiator	-
Max displacement setting	No max displacement setting (default)
Min displacement setting	No min displacement setting (default zero swash)
Pump special features	No pump special feature
Control special features	None
Pump certification	No certification
Customer identification	None
Proposition 65	Cancer and Reproductive Harm

11344336: frequently asked questions

When can 11344336 be shipped?

11344336 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11344336 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11344336 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11344336, subject to availability and destination.
