Danfoss 11039855

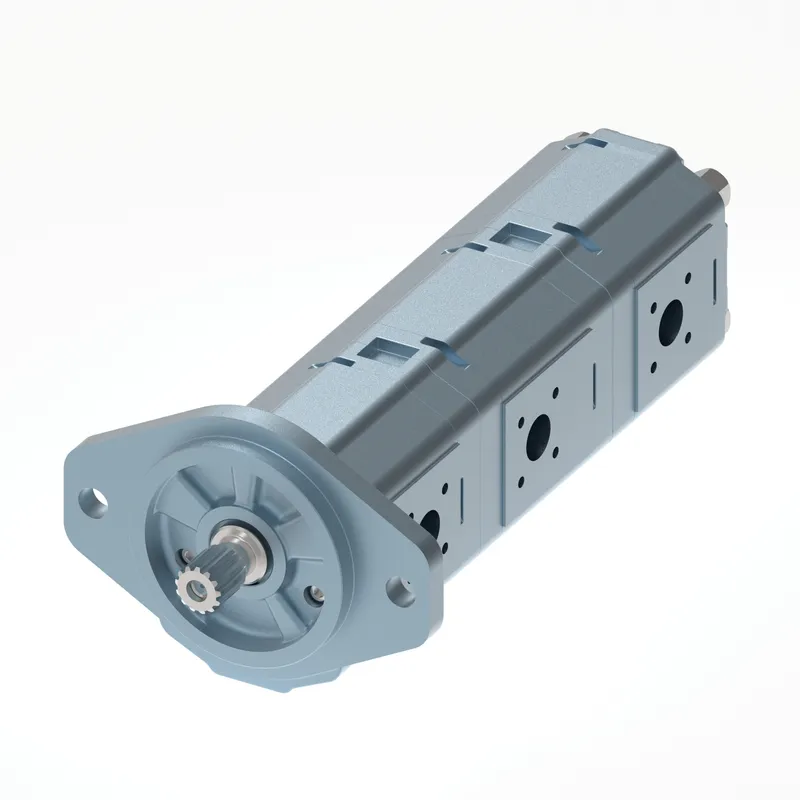

TRIPLE GEAR PUMPE=GR2+GR2+GR2

MPN: 11039855
Category: GearMe modular three stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11039855?

Danfoss TRIPLE GEAR PUMPE=GR2+GR2+GR2, manufacturer part number 11039855. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Triple Gr.2+2+2 family	SNW2NN+SNO2NN+SNP2NN
B: 1st stage displacement	Displacement 8,0 cc
C: 2nd stage displacement	Displacement 8,0 cc
D: 3rd stage displacement	Displacement 8,0 cc
E: Rotation	Right rotation
F: Project version	Std without interm.flange
G_FLANGE GR1+1+1	Slash
G: Mounting flange	Flange-pilot D80+4 holes for bolts
H: Drive gear	Taper 1:5-M12x1,25-Key 3+Rear tang CO42-CO44-CO45
I: Rear cover	Cover for pump with holes M5
J: 1st stage inlet size	20x40xM6
K: 1st stage outlet size	15x35xM6
L: 1st stage ports position	Std from catalogue
M: 2nd stage inlet size	20x40xM6
N: 2nd stage outlet size	15x35xM6
O-Ring, Inside Diameter	Slash
O: 2nd stage ports position	Std from catalogue
OC DELIMITER (-)	-
P: 3rd stage inlet size	20x40xM6
Proposition 65	Cancer and Reproductive Harm
Q: 3rd stage outlet size	15x35xM6
R: 3rd stage ports position	Std from catalogue
S: Seals	Std seal
Slash separator	Slash
T: Screws	Screws standard
U: Valve setting	without setting
V: Mark type	Std Sauer Danfoss Marking
W: Mark position	Std mark position
