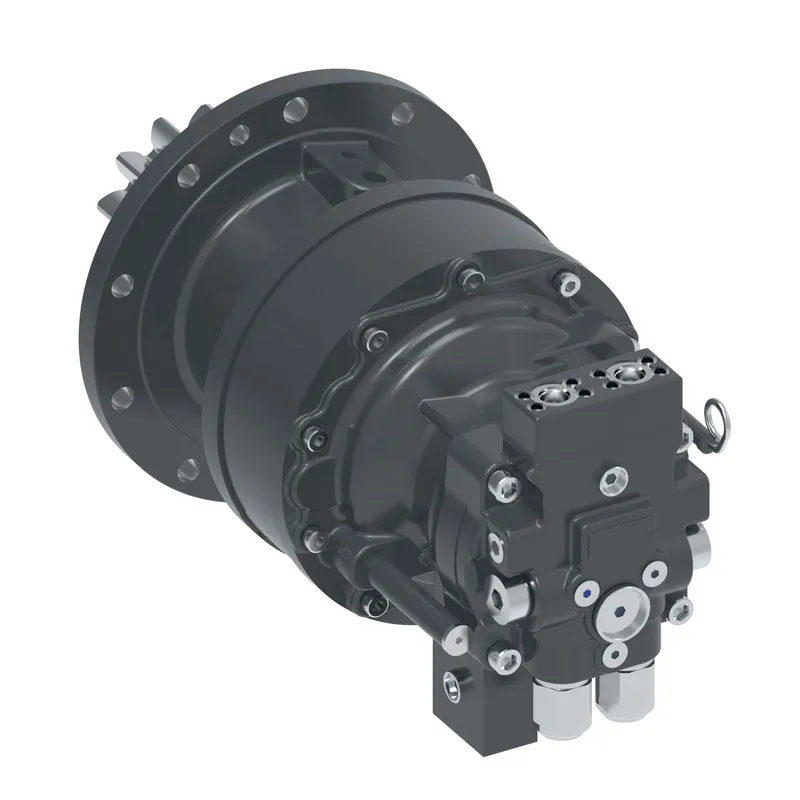

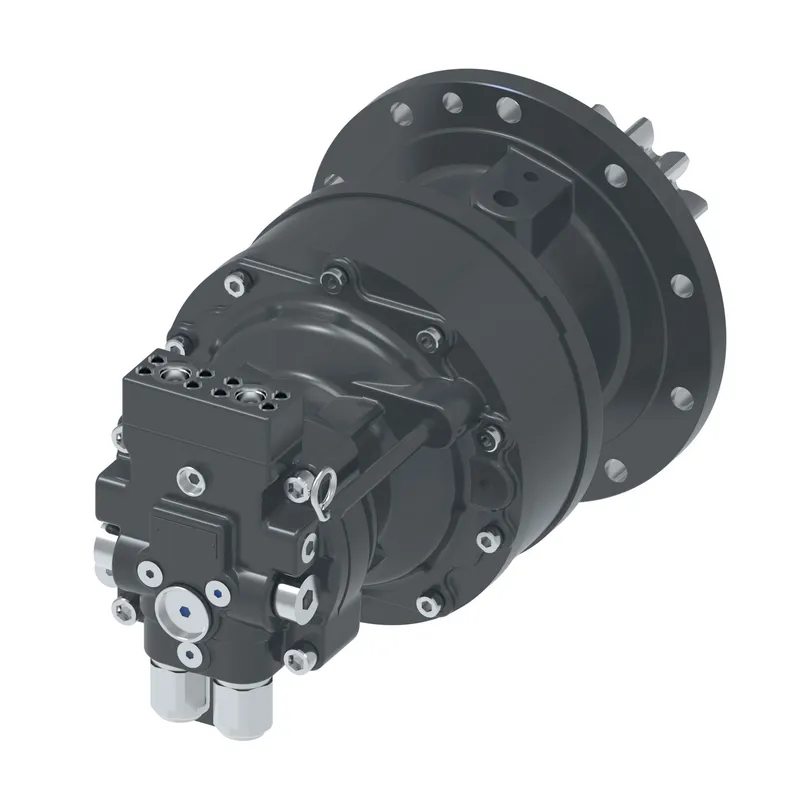

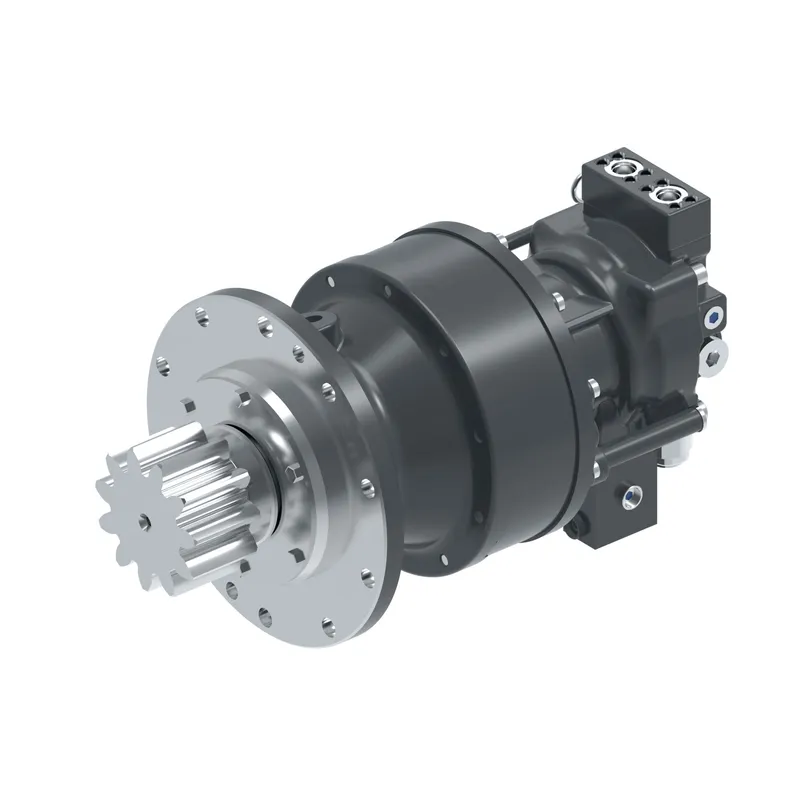

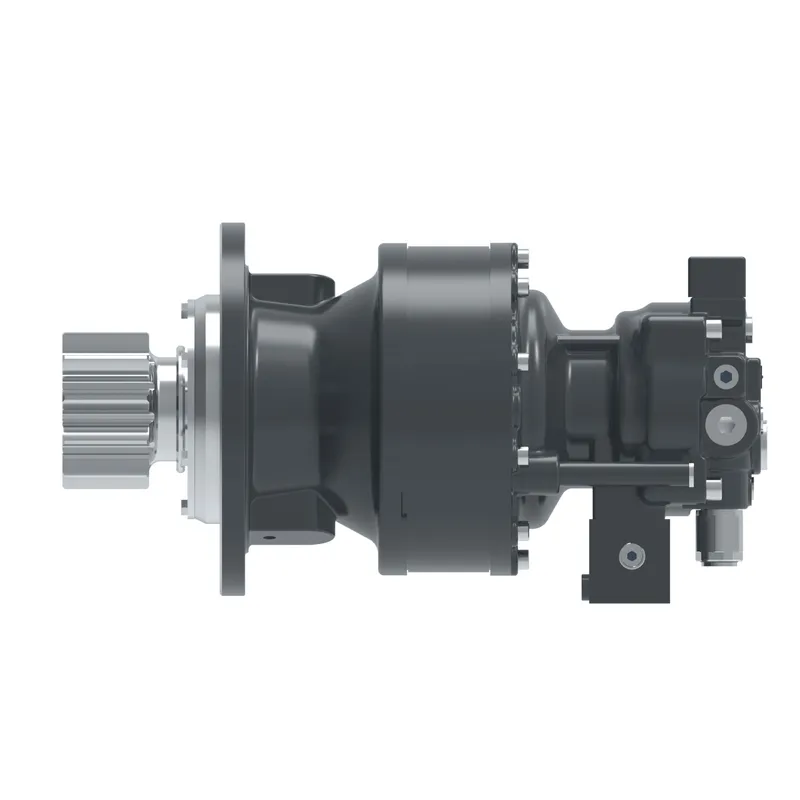

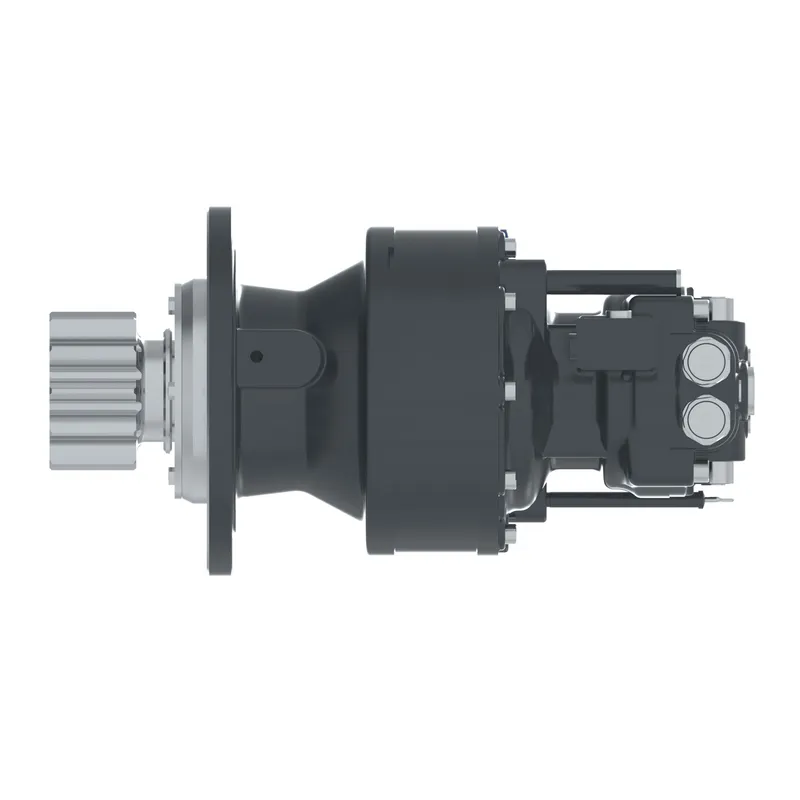

SM S55V(2401-9255E)(DIST) PRIMER
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Track and swing drive piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11020267901 be shipped?
11020267901 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11020267901 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11020267901 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11020267901, subject to availability and destination.
Danfoss SM S55V(2401-9255E)(DIST) PRIMER, manufacturer part number 11020267901. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A_B main port size | BSPP 1/2 |
| Anti-reverse valve and setting | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss swing type | Danfoss Swing Motor |
| Design code | First version |
| Displacement | 43 cm3/r (2.62 in3/r) |
| Flow rate GPM | 15.85 |
| Flow rate lpm | 60.0 |
| Gear ratio | None |
| Gearbox input shaft spec | None |
| Gearbox mounting with vehicle | None |
| Gearbox output shaft spec | None |
| Identification | Standard namplate |
| Maximum output speed RPM | 1395 |
| Motor mounting | Standard |
| Motor shaft spec | Standard |
| Old model code | JMF043PS |
| Output torque LBF-IN | 1188.6 |
| Output torque Nm | 134.3 |
| Paint | Primer + orange |
| Parking brake and setting | Standard |
| Product height in | 8.770 |
| Product height mm | 222.758 |
| Product length in | 16.100 |
| Product length mm | 408.940 |
| Product width in | 8.770 |
| Product width mm | 222.758 |
| Relief valve and setting | 200bar (2987 psi) 40 lpm (10.56 gpm) |
| Special requirement | None |
| Timedelay and setting | 5 bar (72 psi) |
| Working pressure bar | 196.0 |
| Working pressure psi | 2843 |
