Danfoss 11020262401

14T SM Device(68-01-19)ADJUSTABLE

MPN: 11020262401
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11020262401?

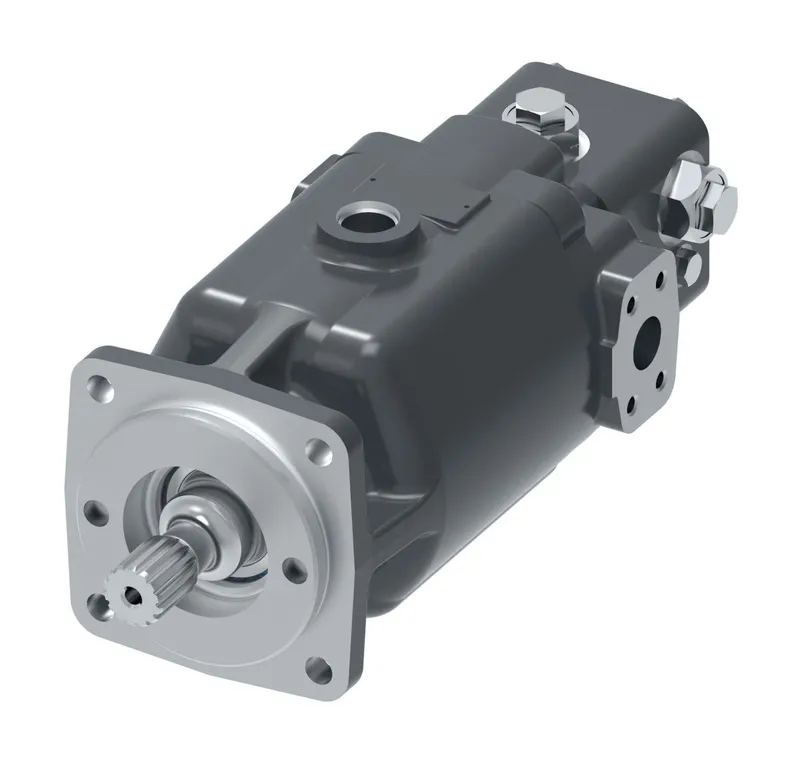

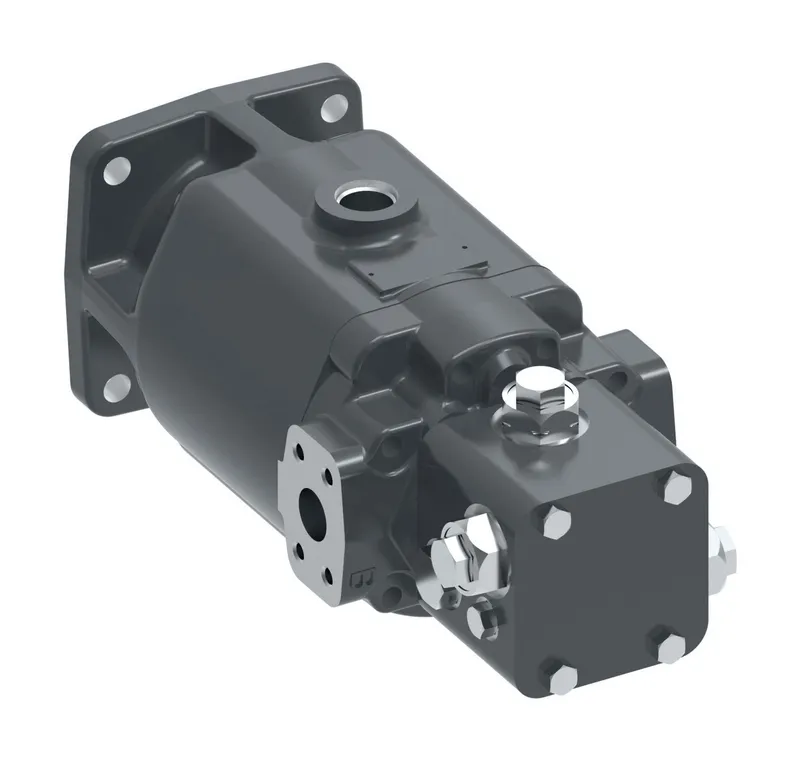

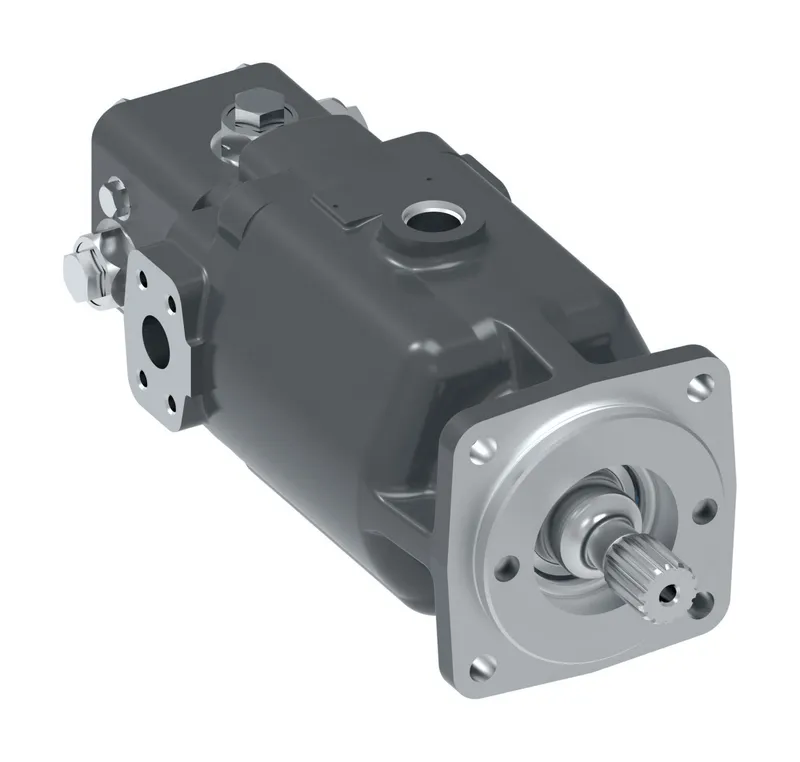

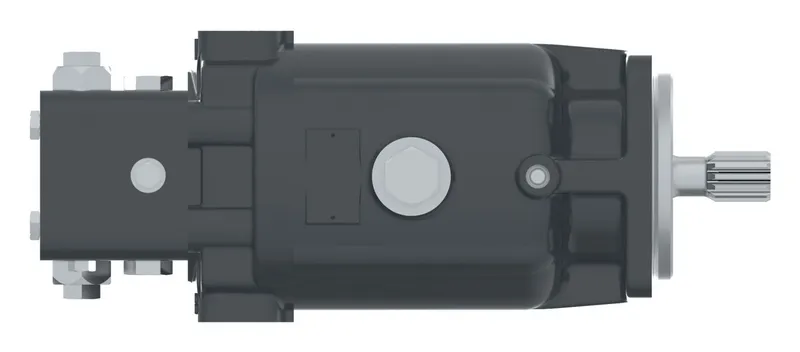

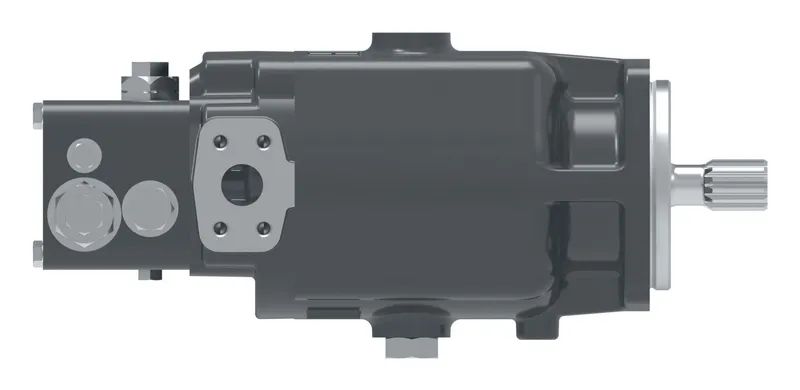

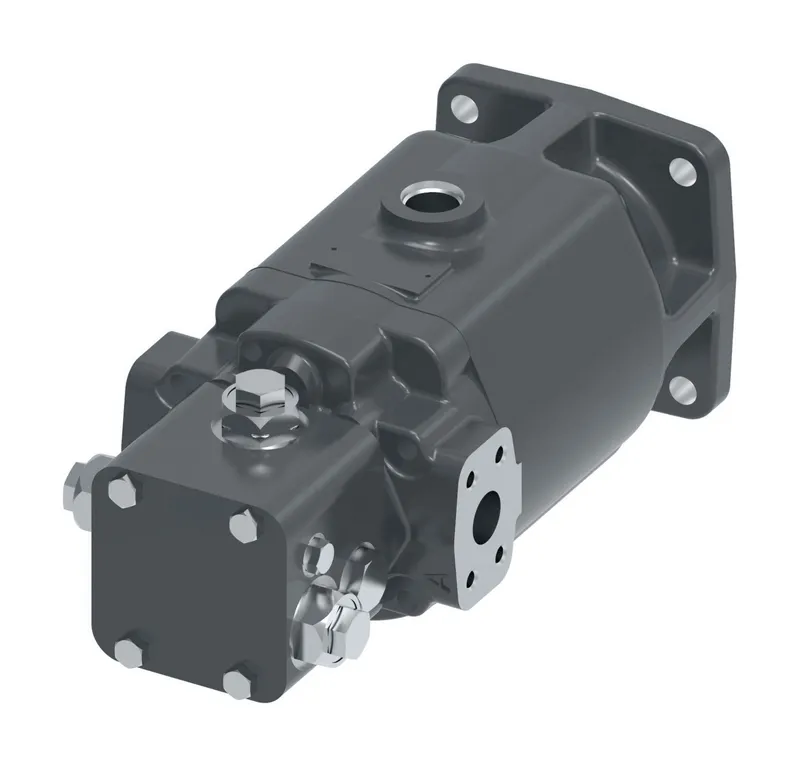

Danfoss 14T SM Device(68-01-19)ADJUSTABLE, manufacturer part number 11020262401. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_B main port size	SAE 1/2" 8-M8
Anti-reverse valve and setting	Built in
Application	Excavator
Brand	Danfoss
Danfoss swing type	Danfoss Swing Motor
Design code	First version
Displacement	68 cm3/r (4.14 in3/r)
Flow rate GPM	34.34
Flow rate lpm	130.0
Gear ratio	19.0 two stage
Gearbox input shaft spec	None
Identification	Standard namplate
Maximum output speed RPM	99
Motor mounting	Standard
Motor shaft spec	Standard
Old model code	JMF068RR0304010211900A00 A
Output torque LBF-IN	42781.6
Output torque Nm	4833.7
Paint	Primer + yellow
Parking brake and setting	Standard
Product height in	14.300
Product height mm	363.220
Product length in	22.800
Product length mm	579.120
Product width in	14.300
Product width mm	363.22
Relief valve and setting	240bar (3480 psi) 30 lpm (7.92 gpm)
Special requirement	None
Timedelay and setting	5 bar (72 psi)
Working pressure bar	235.0
Working pressure psi	3408
