Danfoss (Drives)

Danfoss 11020221301

SM C13T DEVICE(Liugong)

MPN: 11020221301
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11020221301?

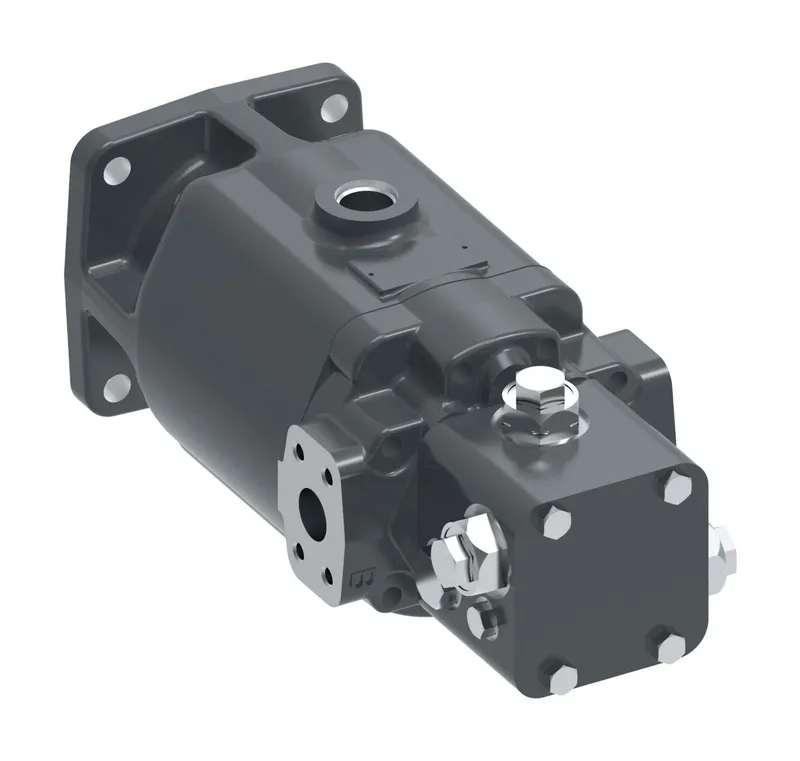

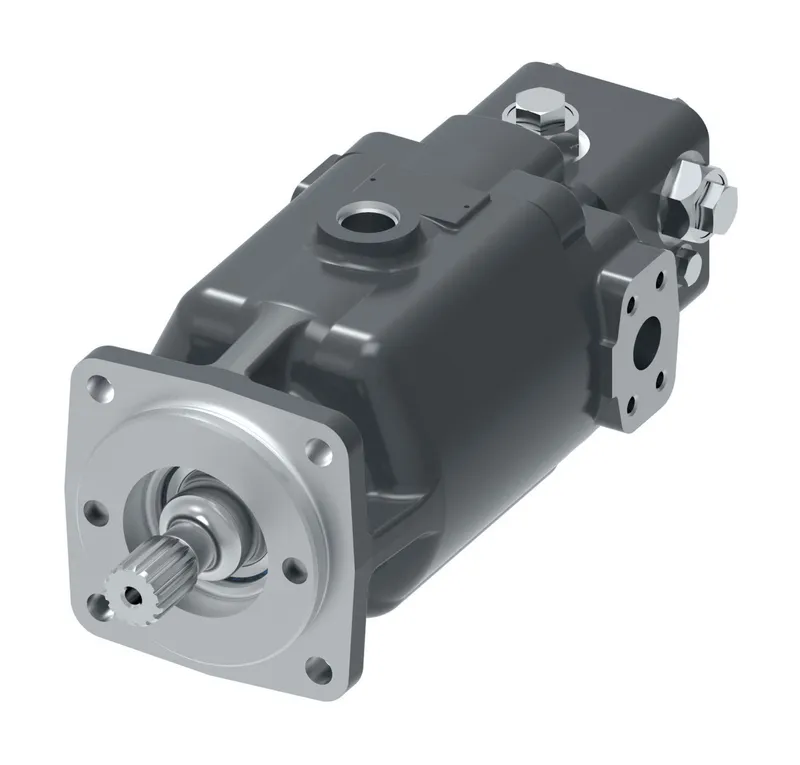

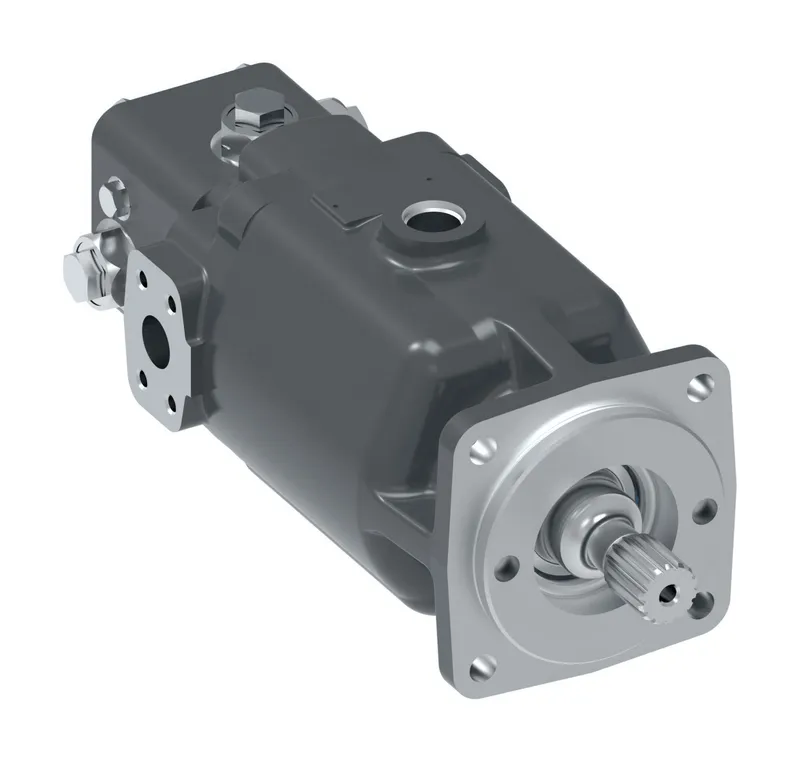

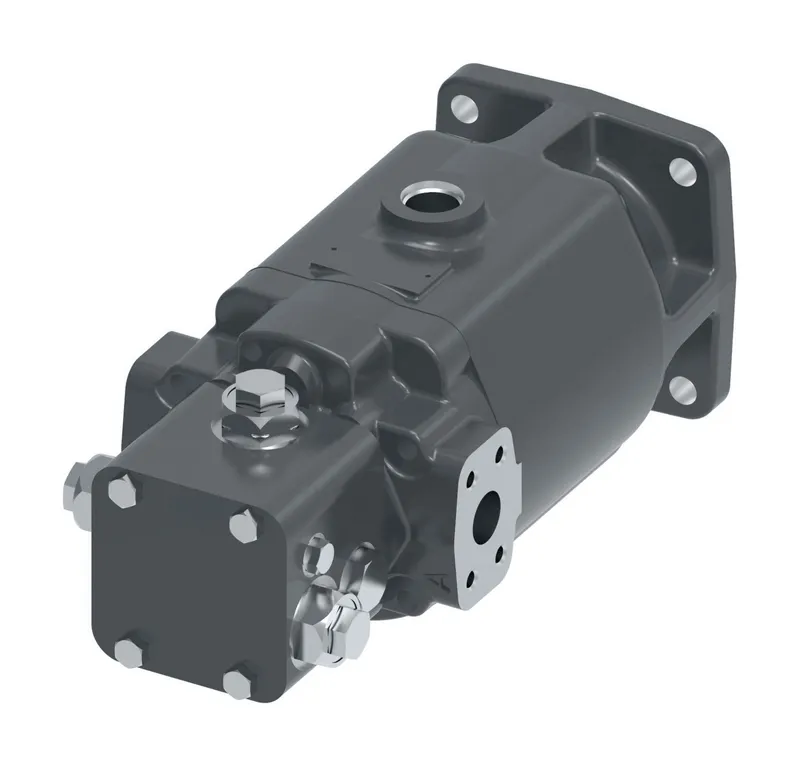

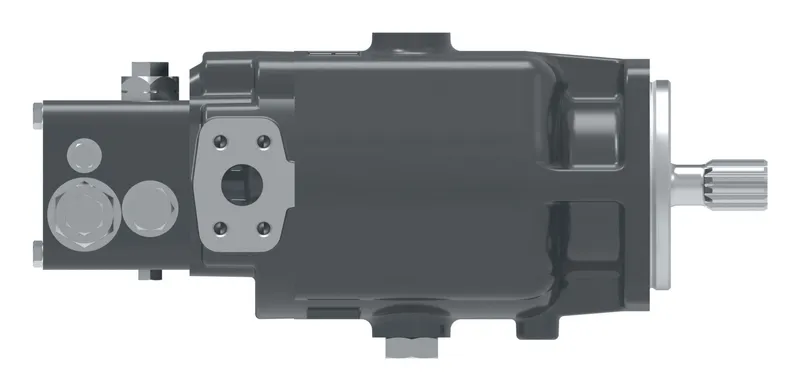

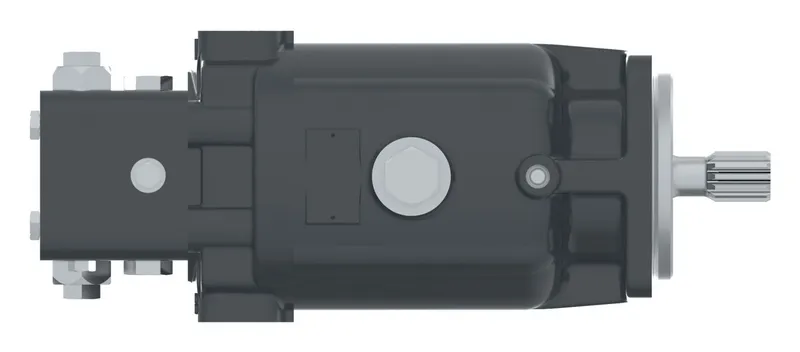

Danfoss SM C13T DEVICE(Liugong), manufacturer part number 11020221301. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_B main port size	BSPP 1/2
Anti-reverse valve and setting	Built in
Application	Excavator
Brand	Danfoss
Danfoss swing type	Danfoss Swing Motor
Design code	First version
Displacement	68 cm3/r (4.14 in3/r)
Flow rate GPM	33.29
Flow rate lpm	126.0
Gear ratio	19.5 two stage
Gearbox input shaft spec	None
Identification	Standard namplate
Maximum output speed RPM	97
Motor mounting	Standard
Motor shaft spec	Standard
Old model code	JMF068RR0205010211900A00A
Output torque LBF-IN	43822.5
Output torque Nm	4951.3
Paint	Primer + black
Parking brake and setting	Standard
Product height in	323.000
Product height mm	8204.200
Product length in	604.000
Product length mm	15341.600
Product width in	323.000
Product width mm	8204.2
Relief valve and setting	250bar (3625 psi) 30 lpm (7.92 gpm)
Special requirement	None
Timedelay and setting	5 bar (72 psi)
Working pressure bar	245.0
Working pressure psi	3553
