Danfoss (Drives)

Danfoss 11020220701

Track and swing drive piston motor

MPN: 11020220701
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11020220701?

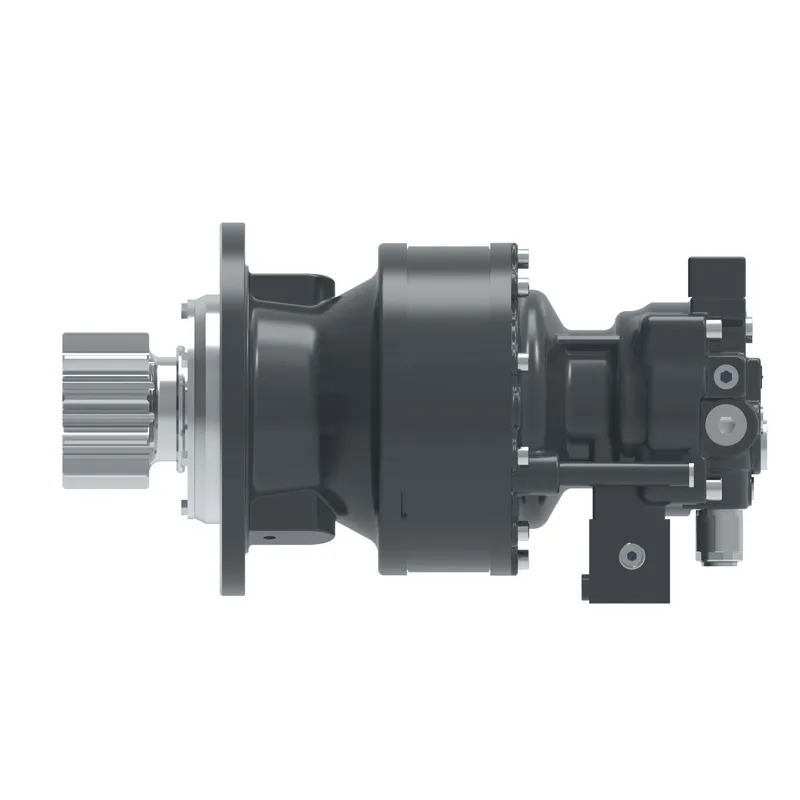

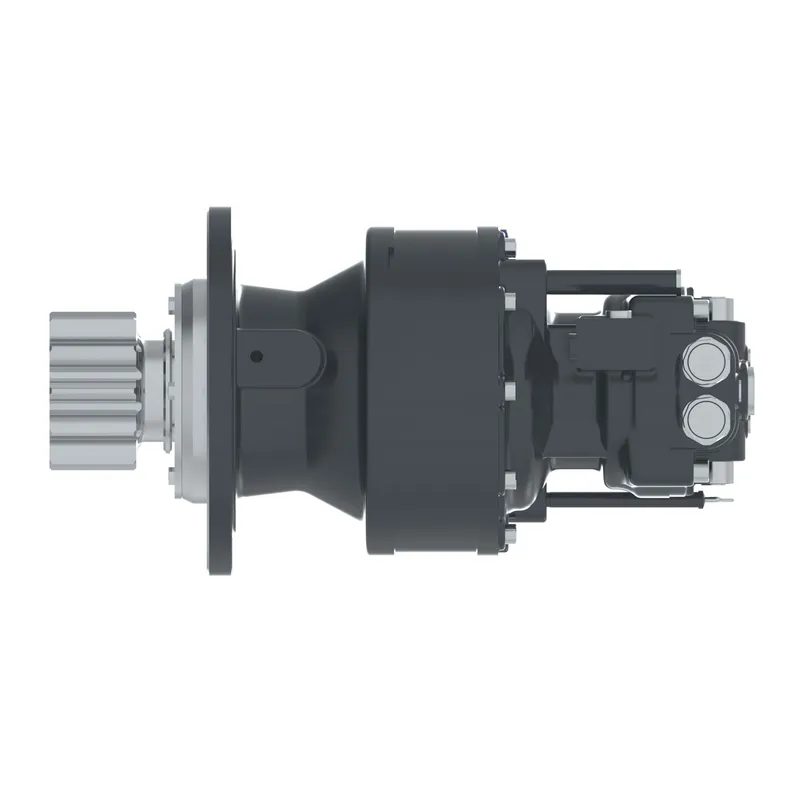

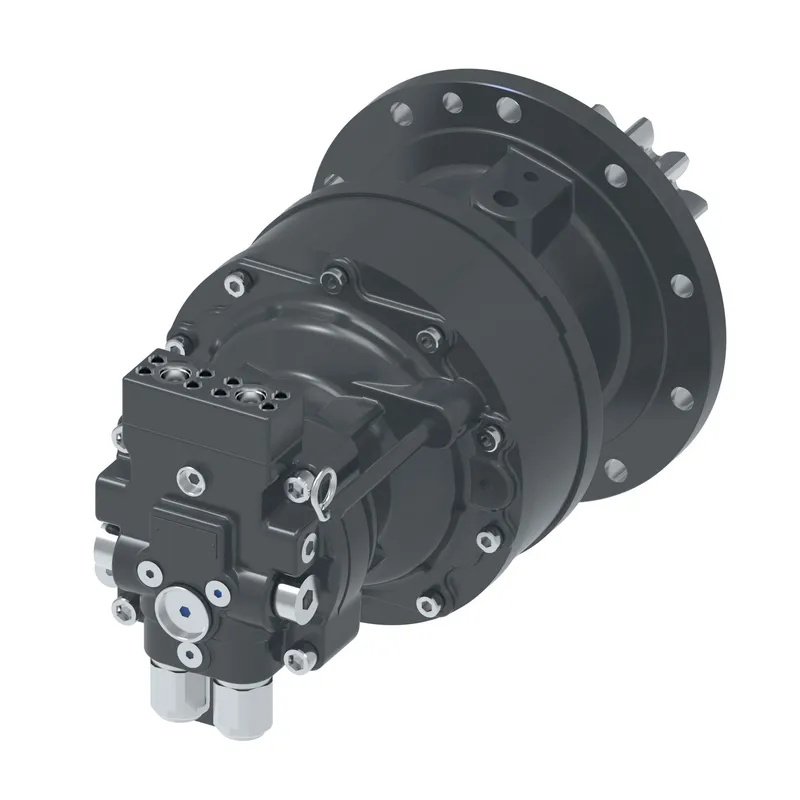

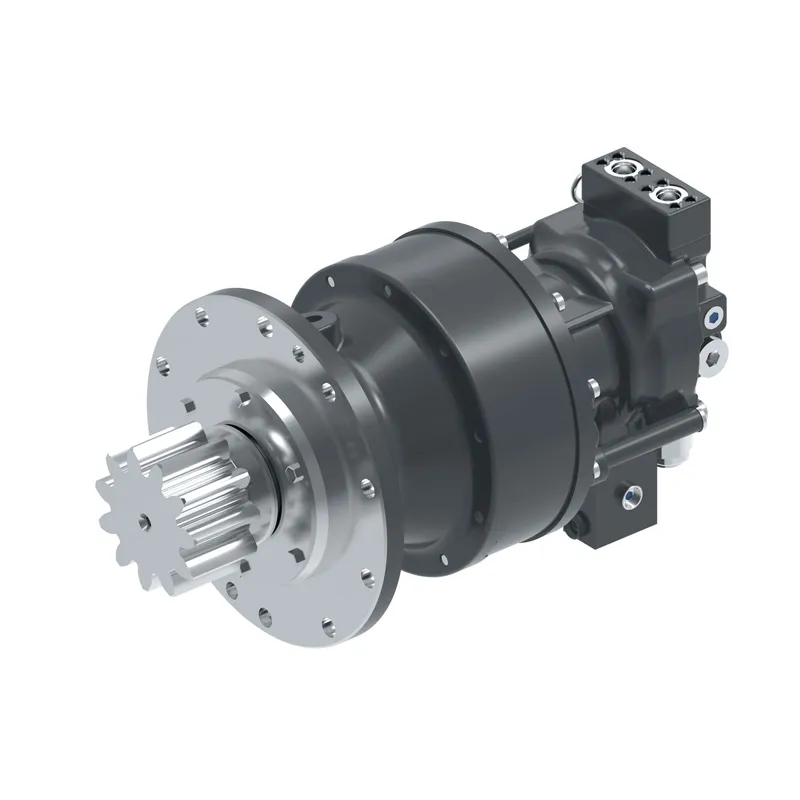

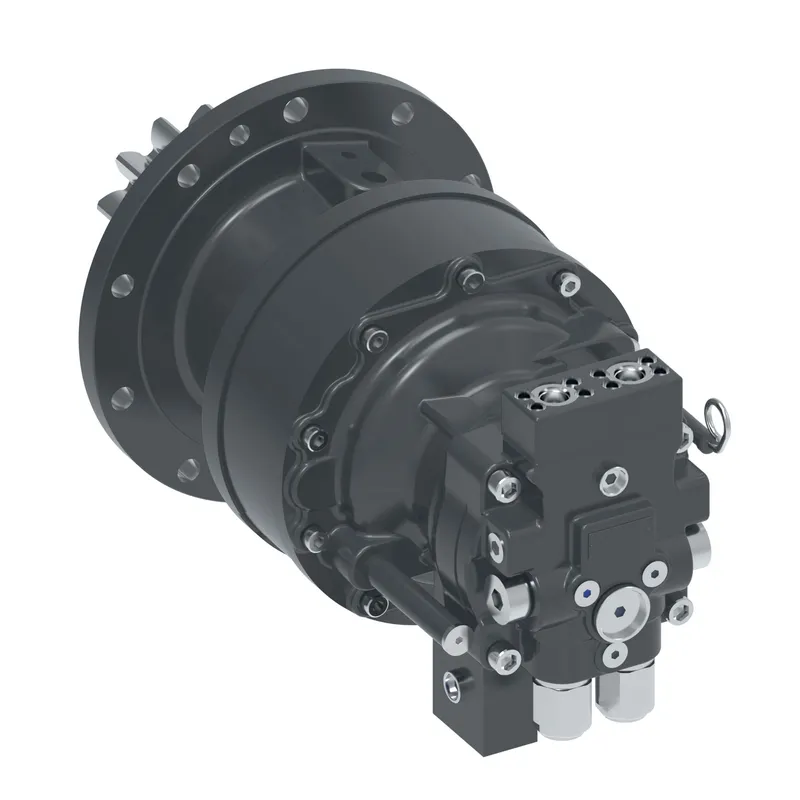

Danfoss SM C8T(53-01), manufacturer part number 11020220701. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_B main port size	BSPP 1/2
Anti-reverse valve and setting	None
Application	Excavator
Brand	Danfoss
Danfoss swing type	Danfoss Swing Motor
Design code	First version
Displacement	53 cm3/r (3.23 in3/r)
Flow rate GPM	21.40
Flow rate lpm	81.0
Gear ratio	None
Gearbox input shaft spec	None
Gearbox mounting with vehicle	None
Gearbox output shaft spec	None
Identification	Standard namplate
Maximum output speed RPM	1525
Motor mounting	Standard
Motor shaft spec	Standard
Old model code	JMF053PS0211010100000A00A
Output torque LBF-IN	1466.6
Output torque Nm	165.7
Paint	Primer + yellow
Parking brake and setting	Standard
Product height in	275.000
Product height mm	6985.000
Product length in	516.700
Product length mm	13124.180
Product width in	275.000
Product width mm	6985
Relief valve and setting	200bar (2987 psi) 40 lpm (10.56 gpm)
Special requirement	None
Timedelay and setting	5 bar (72 psi)
Working pressure bar	196.0
Working pressure psi	2843
