TM CN1.5T(16-01-31)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Track and swing drive piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11010092701 be shipped?
11010092701 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11010092701 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11010092701 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11010092701, subject to availability and destination.

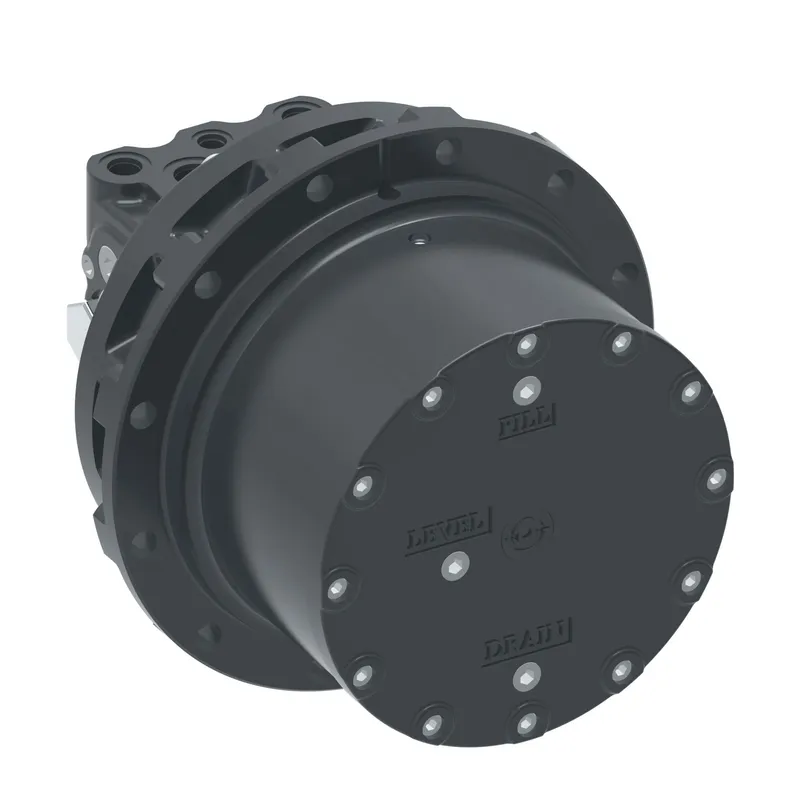

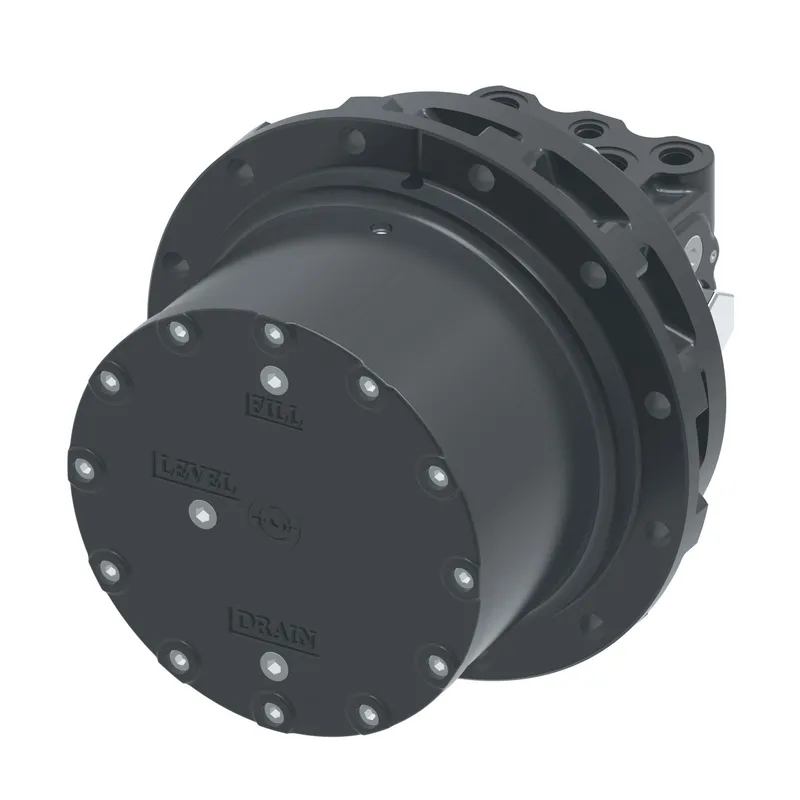

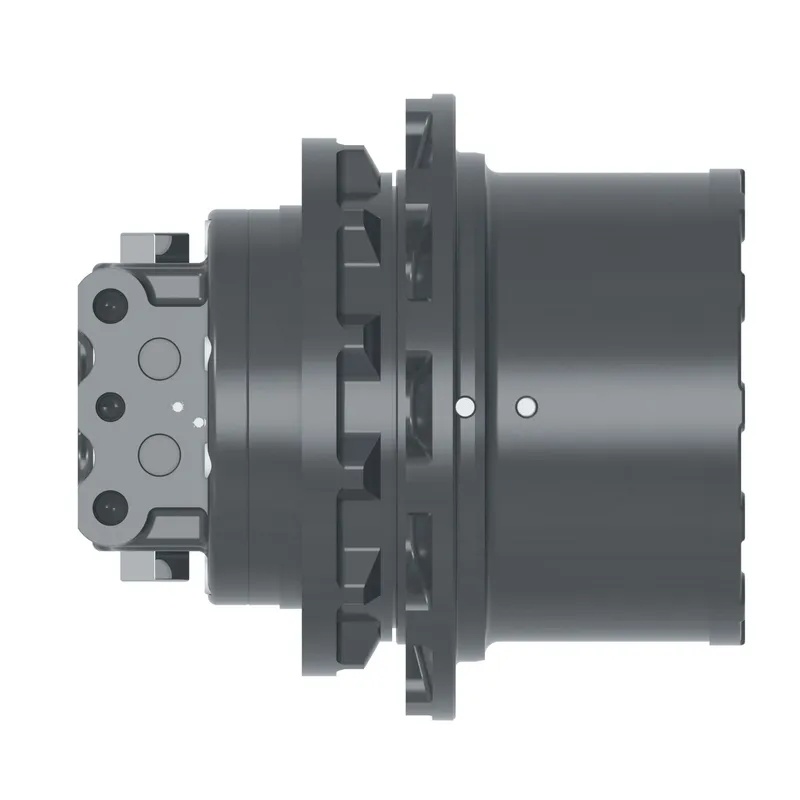

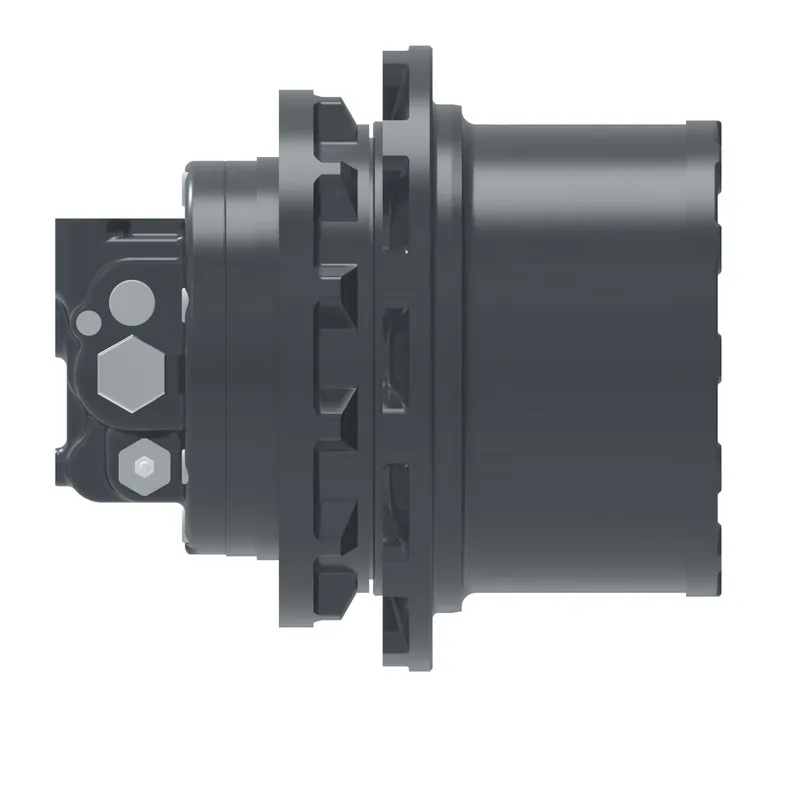

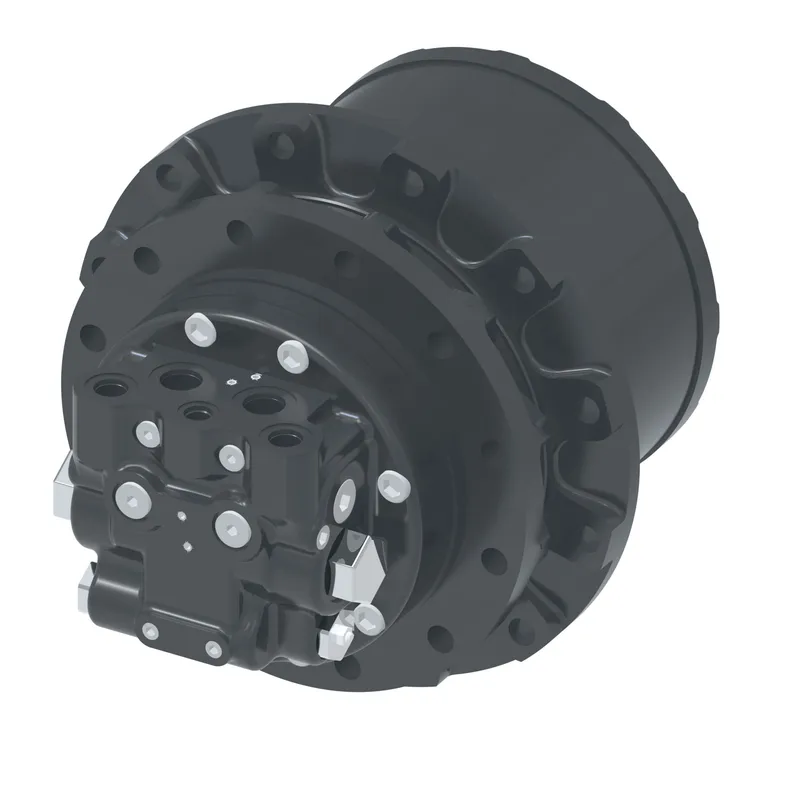

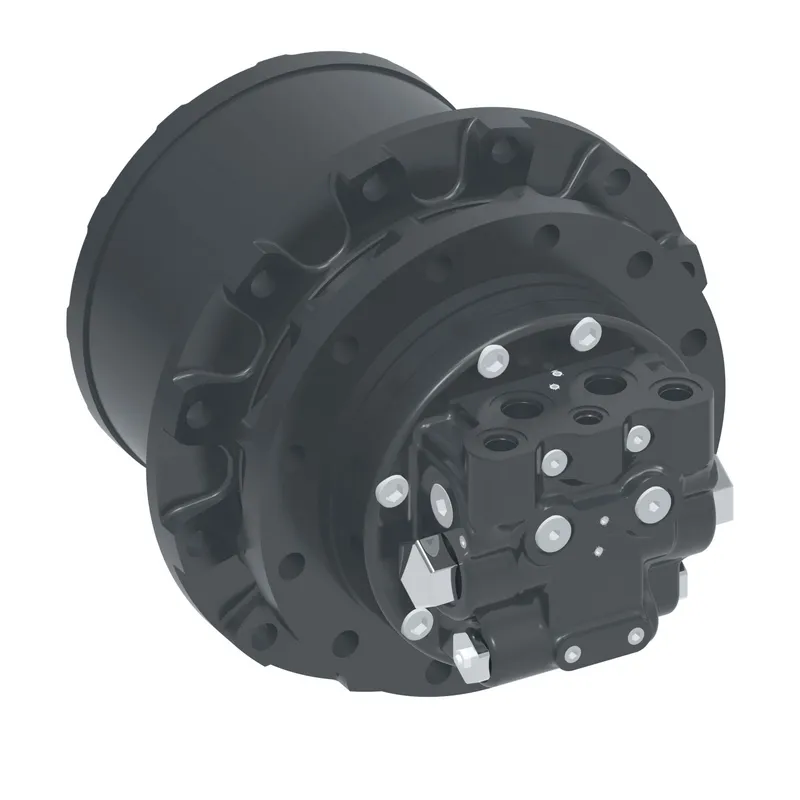

Danfoss TM CN1.5T(16-01-31), manufacturer part number 11010092701. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A B main port size | BSPP 3/8 |
| Anti cavitation | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss track type | Danfoss Track Device (motor+gear box) |
| Design code | First version |
| Device mounting | Standard |
| Displacement (1st 2nd) | 16 cm3/r (0.98 in3/r) |
| Flow rate GPM | 4.49 |
| Flow rate lpm | 17.0 |
| Gear ratio | 31.0 two stage |
| Gearbox mounting | Standard |
| Identification | Standard nameplate (Danfoss) |
| Maximum output speed RPM | 1056 |
| Motor mounting | Standard |
| Motor shaft | Standard |
| Old model code | JMV016RR010004003100A00A |
| Output torque LBF-IN | 13709.7 |
| Output torque Nm | 1549.0 |
| Paint | Standard: black |
| Parking brake setting | 14.7 bar (213 psi) |
| Product height in | 8.400 |
| Product height mm | 213.360 |
| Product length in | 10.100 |
| Product length mm | 256.540 |
| Product width in | 8.460 |
| Product width mm | 214.884 |
| Relief valve setting | None |
| Special requirement | None |
| Two speed setting | None |
| Working pressure bar | 182.0 |
| Working pressure psi | 2589 |
