Danfoss 11010015801

DTD044A 6TM Ningbo-1[BK]_7T RED 230K

MPN: 11010015801
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11010015801?

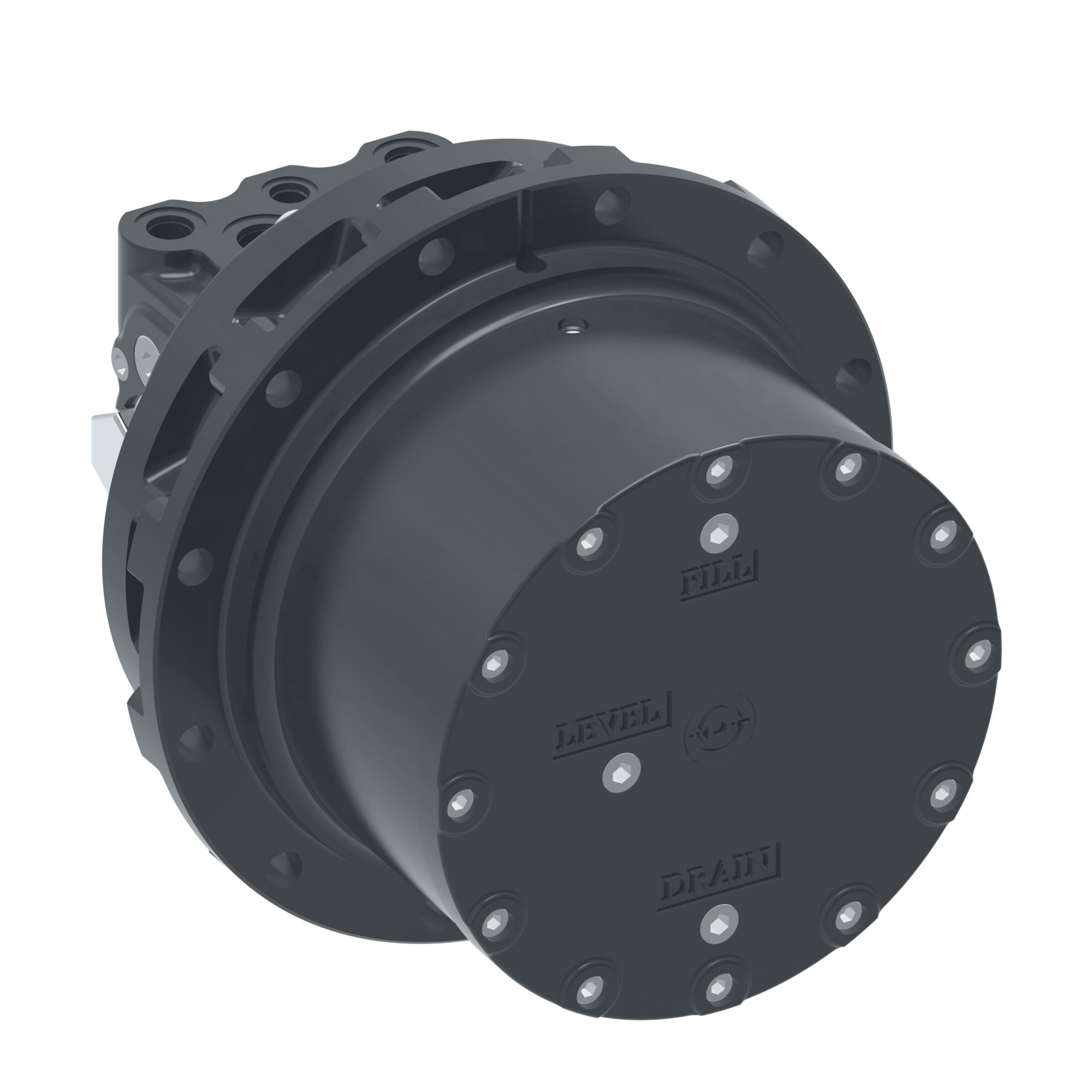

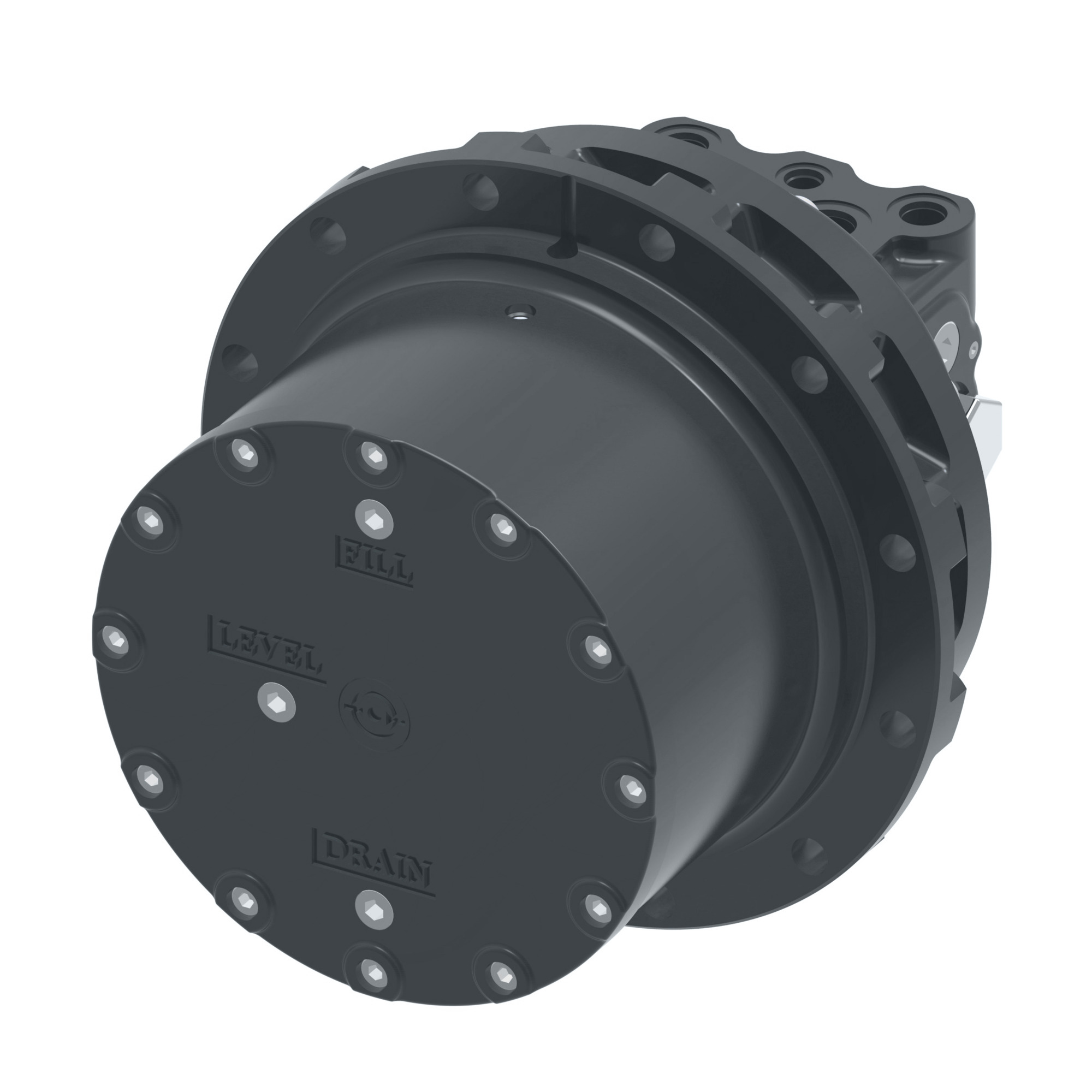

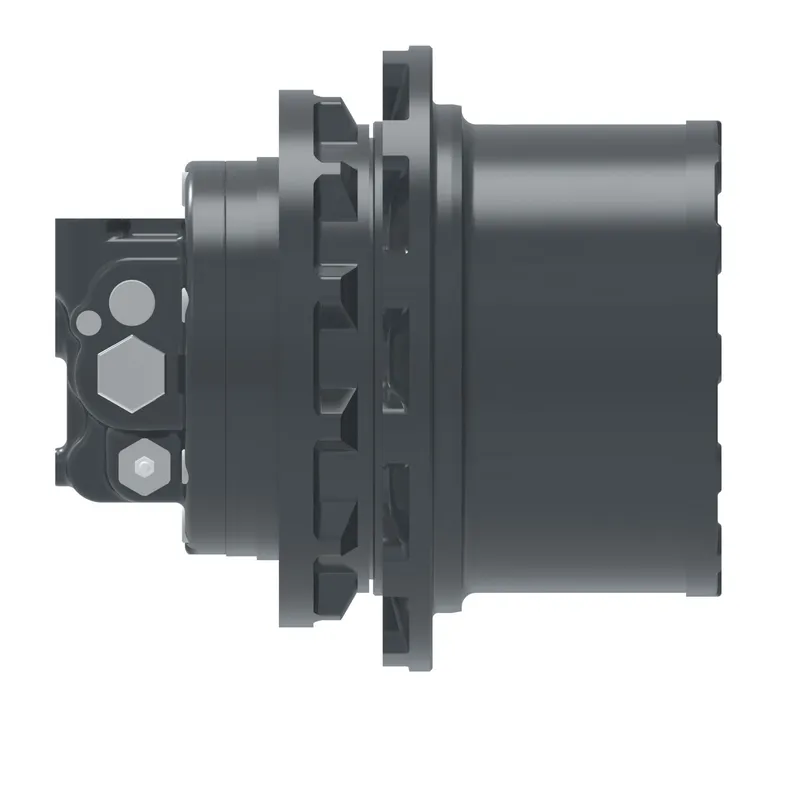

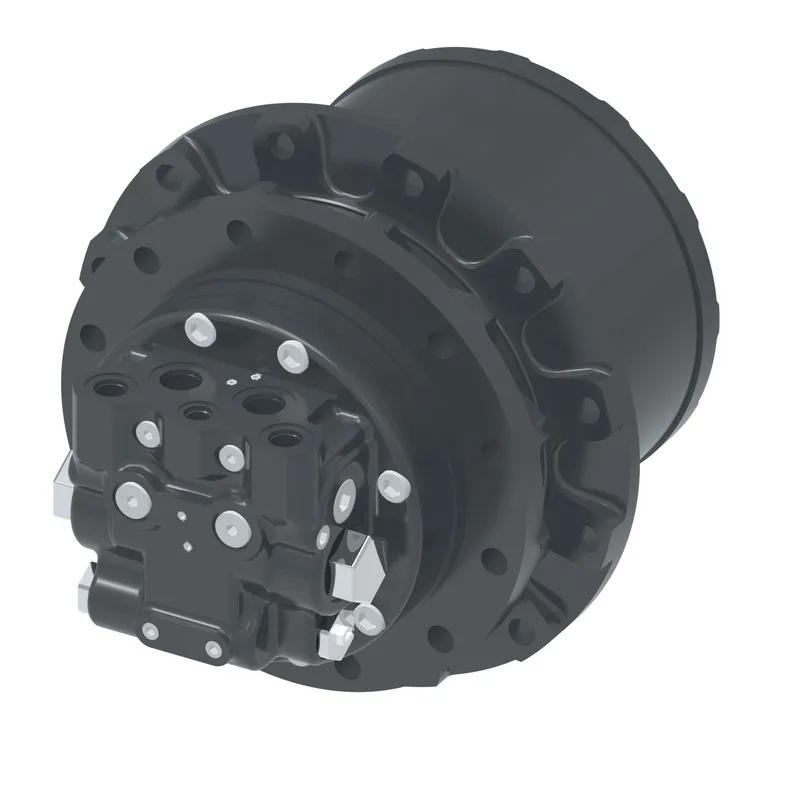

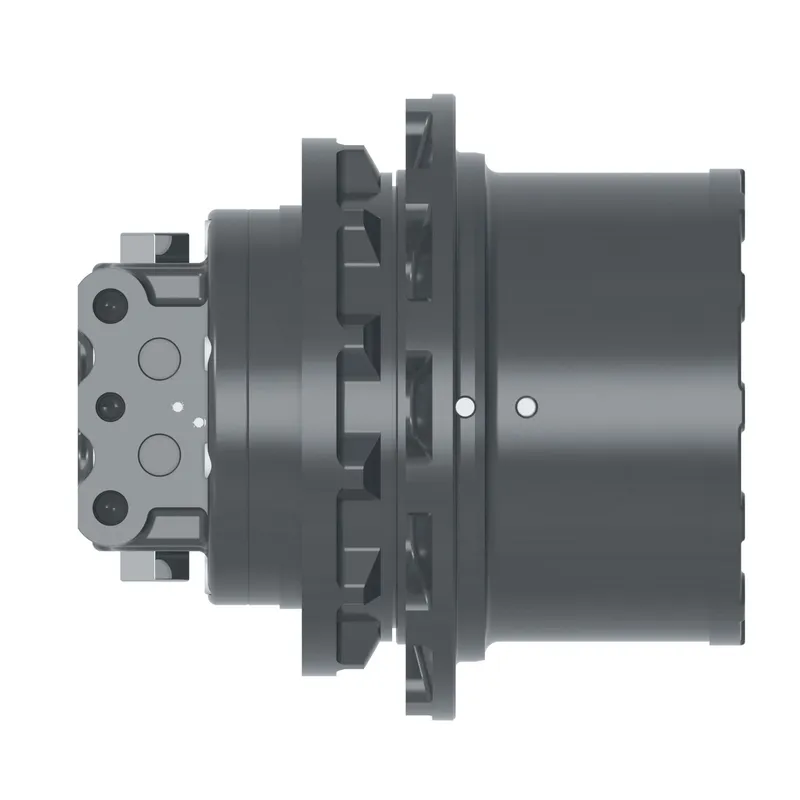

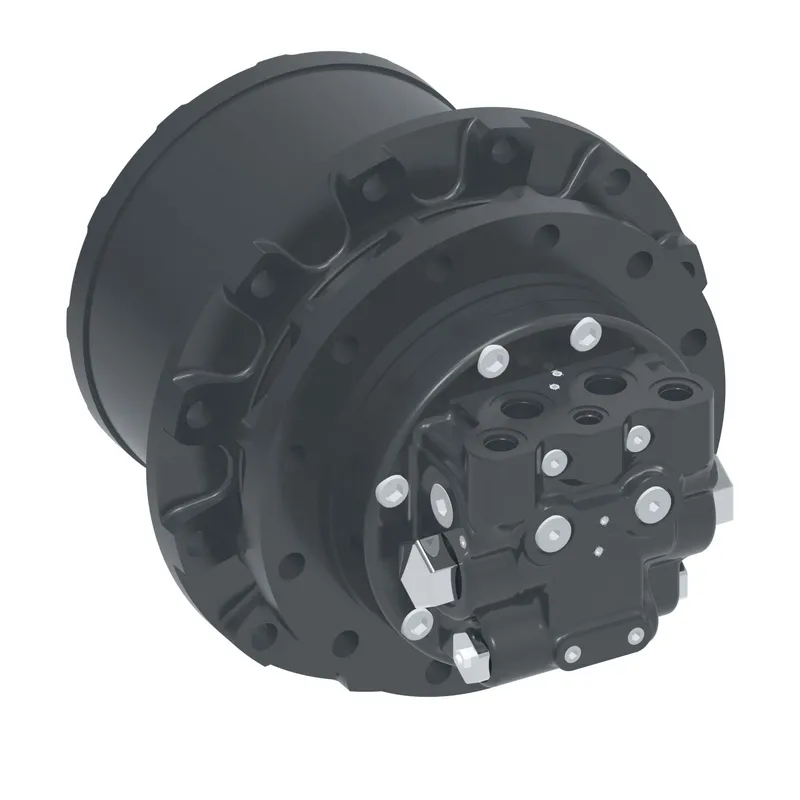

Danfoss DTD044A 6TM Ningbo-1[BK]_7T RED 230K, manufacturer part number 11010015801. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A B main port size	BSPP 1/2
Anti cavitation	None
Danfoss track type	Danfoss Track Device (motor+gear box)
Design code	First version
Device mounting	Standard
Displacement (1st 2nd)	43.7 23.1 cm3/r (2.67 1.41 in3/r)
Gear ratio	53.7 two stage
Gearbox mounting	Standard
Identification	Standard nameplate (Danfoss)
Motor mounting	Standard
Motor shaft	Standard
Paint	Standard: black
Parking brake setting	8.8 bar (128 psi)
Product height in	11.100
Product height mm	281.940
Product length in	13.400
Product length mm	340.360
Product width in	11.100
Product width mm	281.94
Relief valve setting	226bar (3271psi) 40lpm (10.6gp
Special requirement	None
Two speed setting	Manual two speed, standard
