Danfoss 11000673

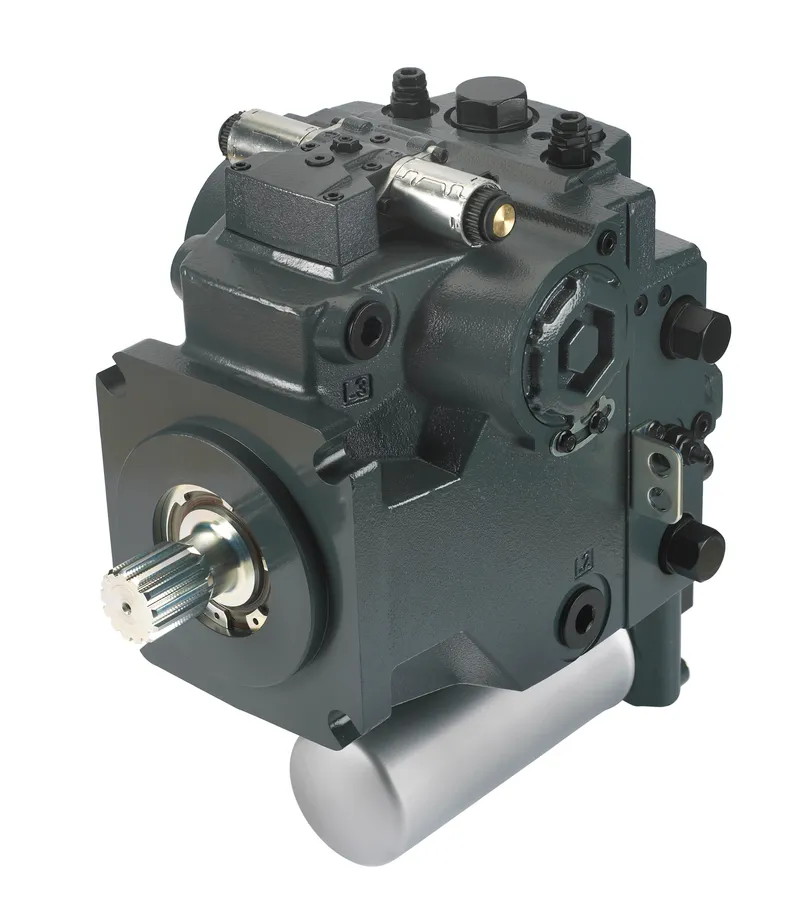

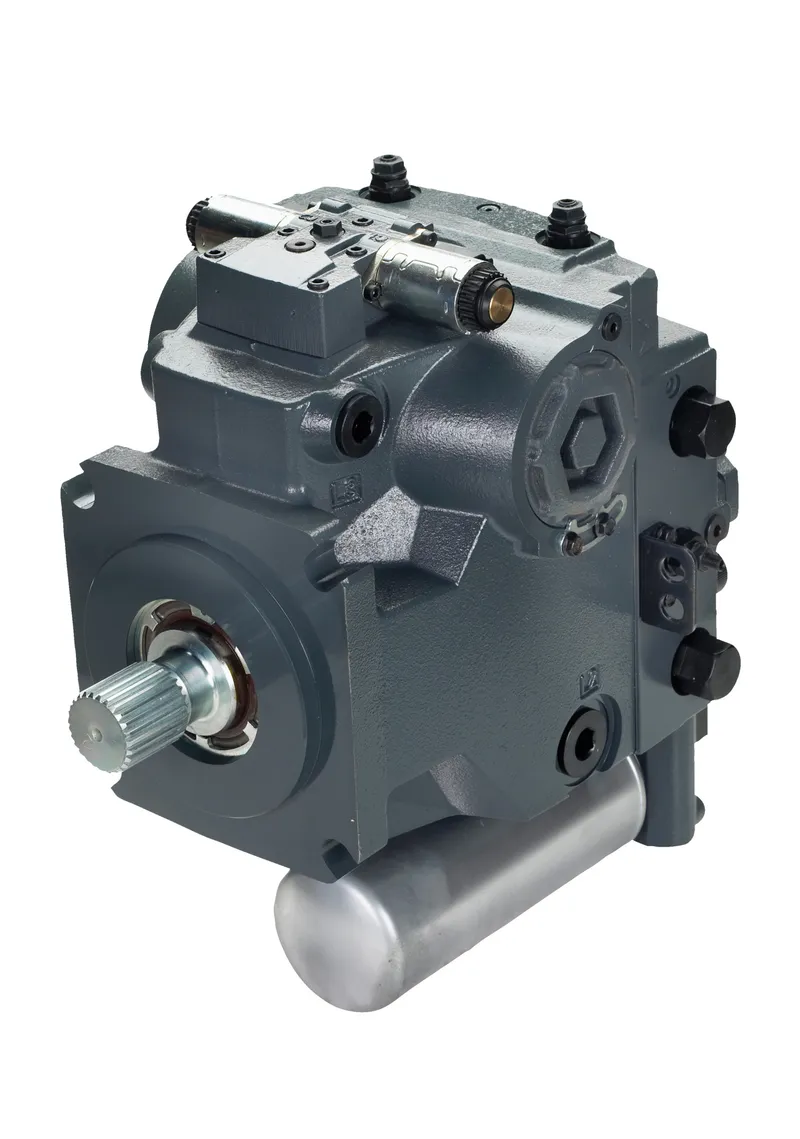

PUMP-VAR-DISPL CW H1PV165

MPN: 11000673
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11000673?

Danfoss PUMP-VAR-DISPL CW H1PV165, manufacturer part number 11000673. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	165cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version D
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 12V Deutsch DT04-2P connector
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, code 62 metric 4 bolt flange, remote filter
Mounting flange	SAE D 4 bolt flange
Input shaft	27 tooth, 16/32
Auxiliary pad	No auxiliary pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	420 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	420 bar
Charge pump	26cc/rev
Filtration	Remote full flow
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
