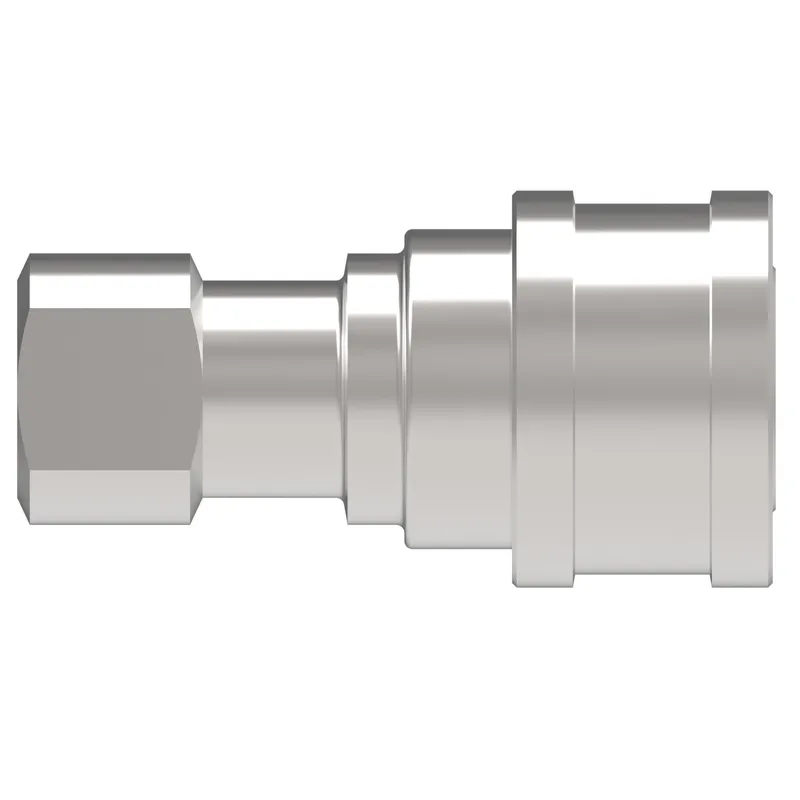

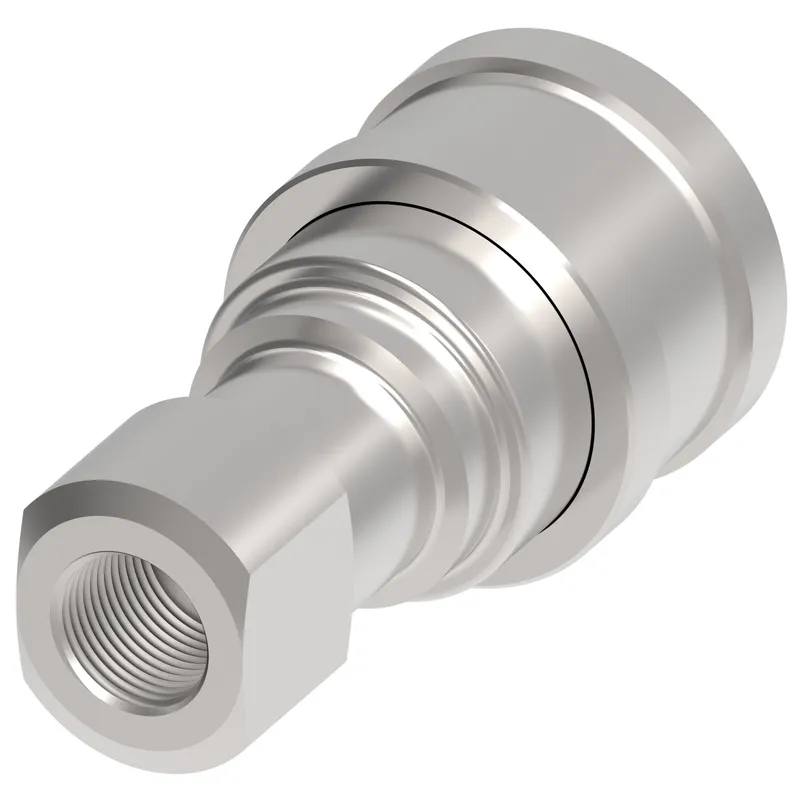

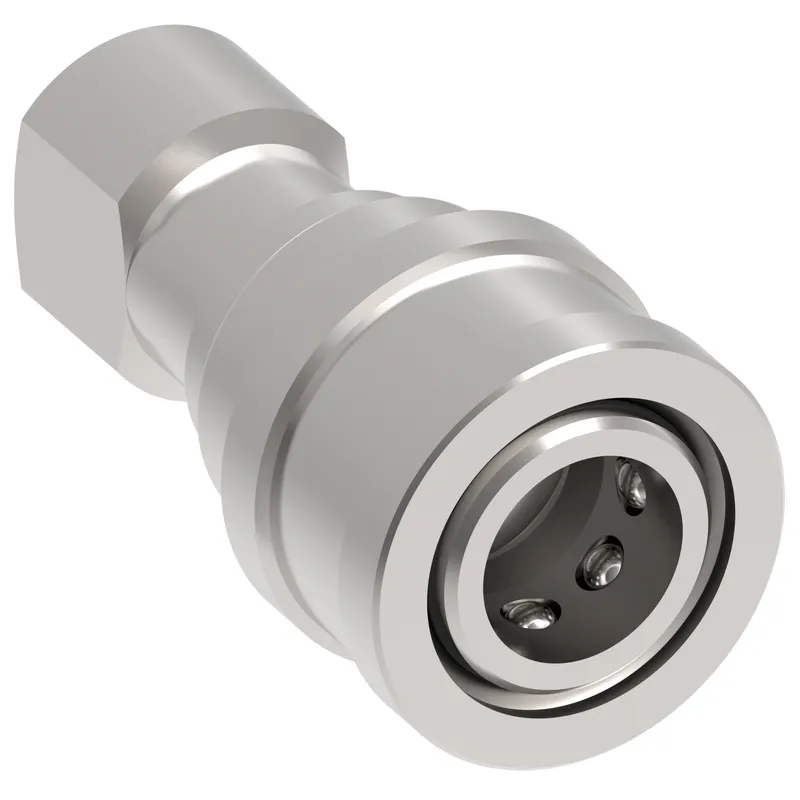

Danfoss 10H41BS192

COUPLING,HK,F,1"1/4,CS,-20BSP,EPDM

MPN: 10H41BS192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10H41BS192?

Danfoss COUPLING,HK,F,1"1/4,CS,-20BSP,EPDM, manufacturer part number 10H41BS192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	48.00
Air inclusion max in3	2.93
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1 1/4"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-20
End size 2	-20
End type 1	Female BSPP port washer seal.
Finish plating	Zinc trivalent
Flow rate GPM	76.00
Flow rate LPM	287.69
Fluid loss cc	48.00000
Hex size 1 IN	2.380
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	G 1 1/4
Valve type	2 way
Working pressure max psi	537
Working temperature max F	300
Working temperature min F	-65
