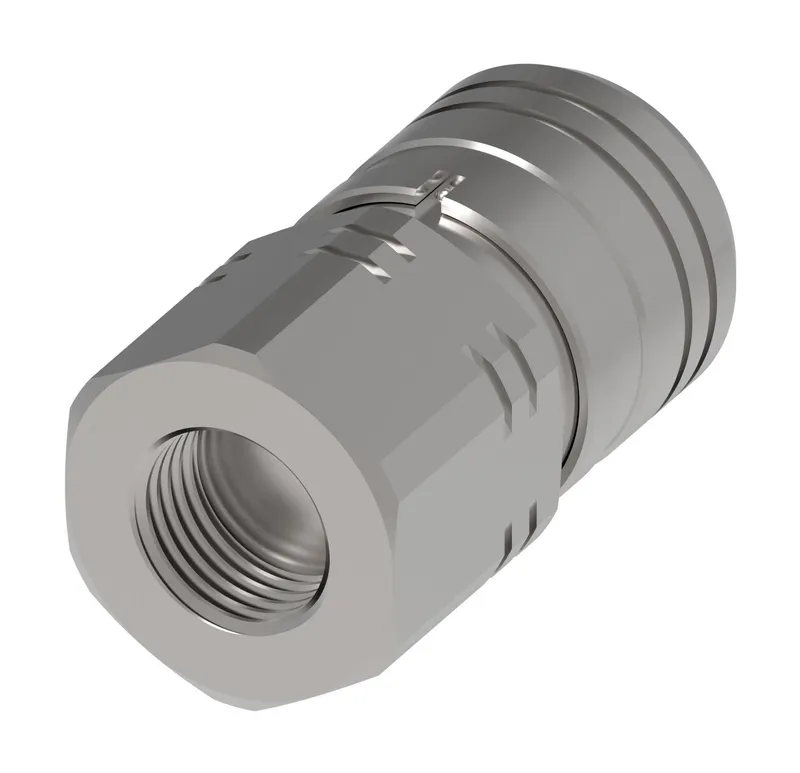

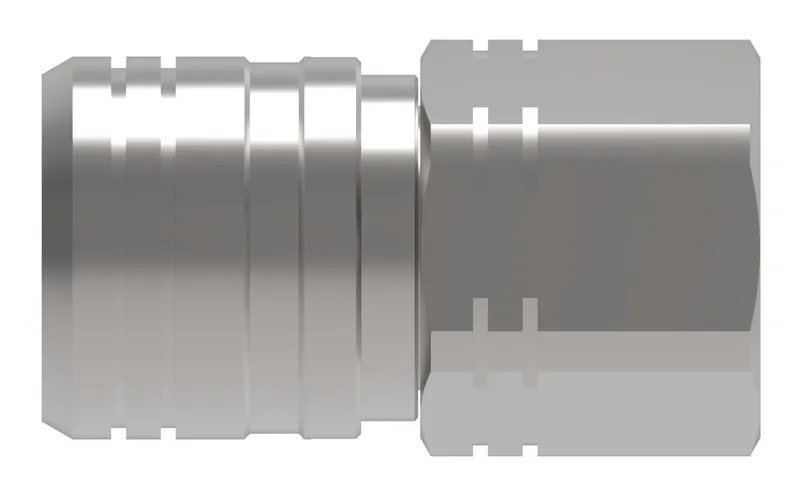

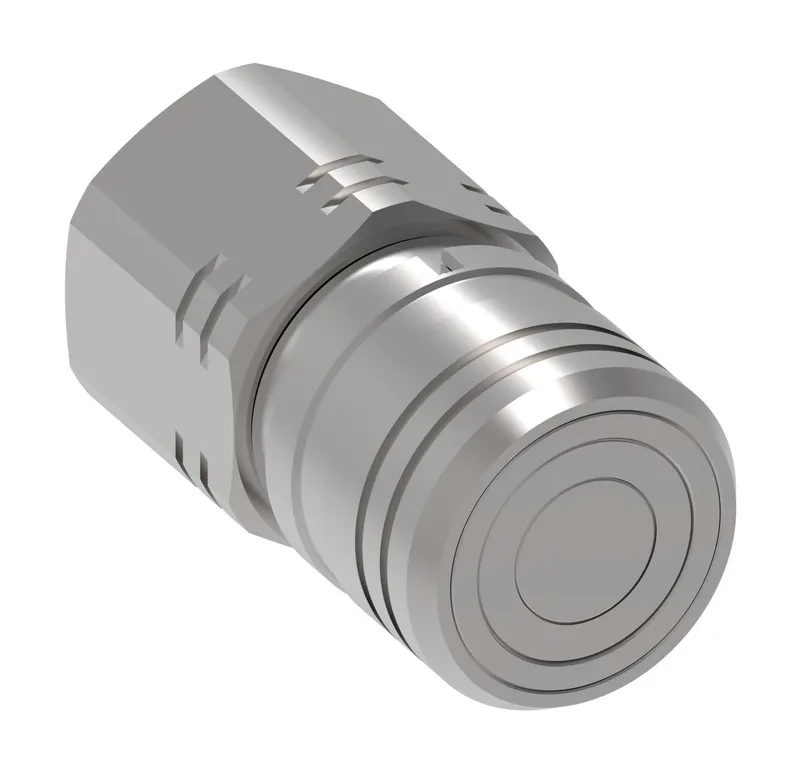

Danfoss 10FFS12L

COUPLING,FF,F,3/8,CS,12L,NBR

MPN: 10FFS12L
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10FFS12L?

Danfoss COUPLING,FF,F,3/8,CS,12L,NBR, manufacturer part number 10FFS12L. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.01
Angle shape	Straight
Application	Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles
Body size	3/8
Brand	Danfoss
Burst pressure min psi	20300
Certifications	ISO 16028
Compliances	REACH, RoHS Compliant
Connection style	Manual connect
End size 1	8LL
End type 1	24 deg. tube port light duty
Finish plating	Guardian sealtm
Flow rate GPM	10.60
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.00600
Hex size 1 IN	1.060
Item type	Female half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile(NBR)+Polyurethane(AU)
Sub brand	Hansen
Thread size 1	M12x1
Torque lbs-ft	31.50
Valve type	2 way
Working pressure max psi	5800
Working temperature max F	212
Working temperature min F	-13

10FFS12L: frequently asked questions

When can 10FFS12L be shipped?

10FFS12L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 10FFS12L in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 10FFS12L and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10FFS12L, subject to availability and destination.
