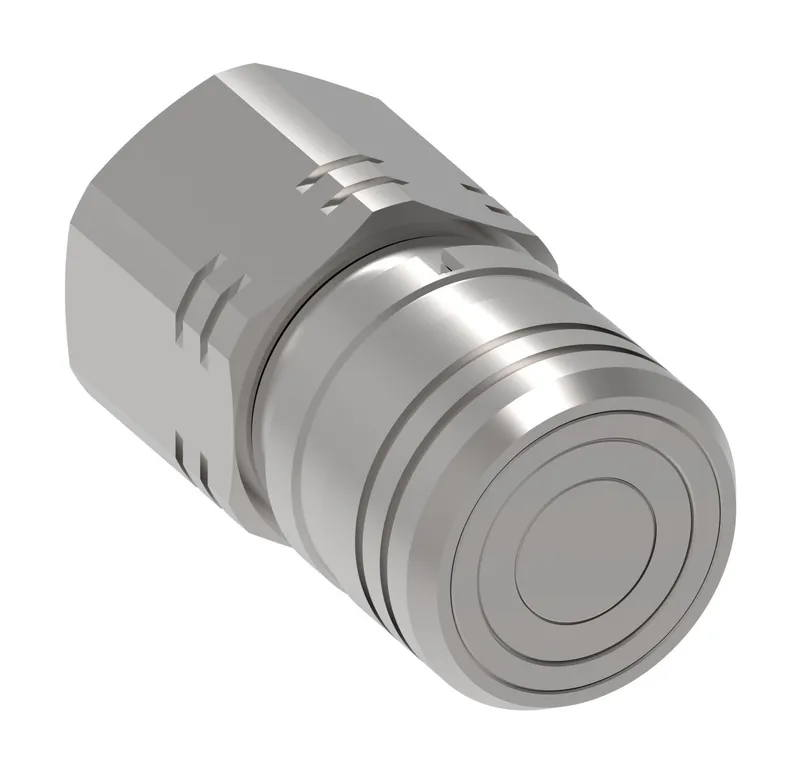

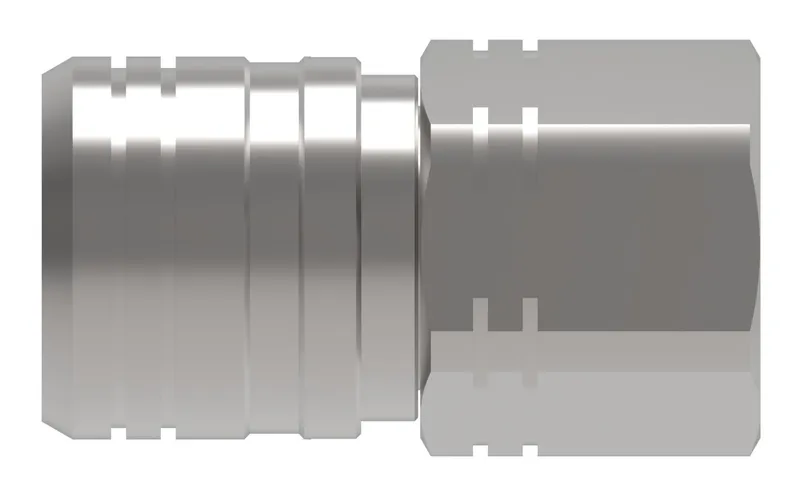

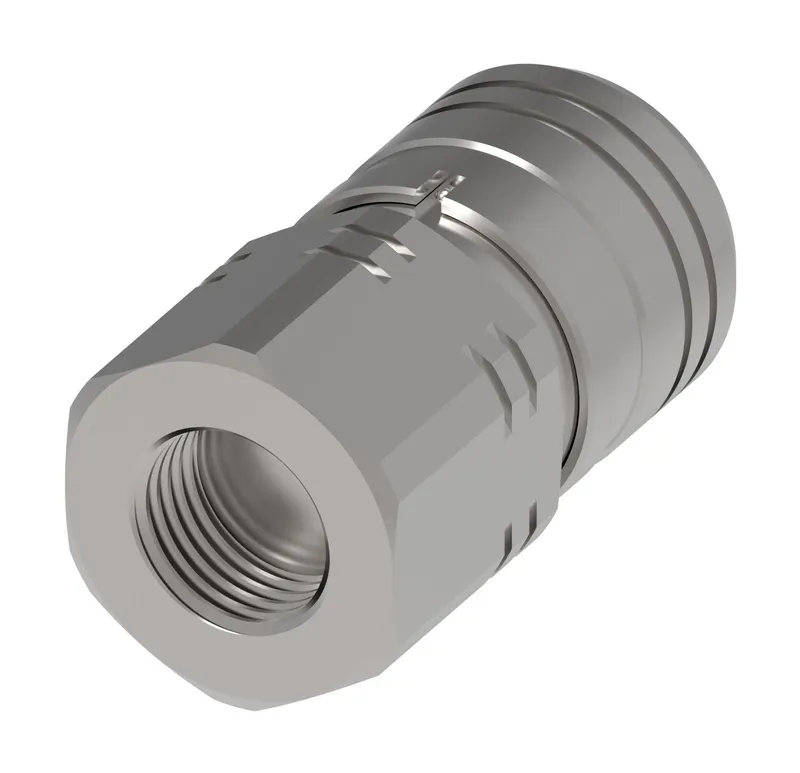

COUPLING,FF,F,3/8,CS,10L,NBR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10FFS10L be shipped?
10FFS10L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10FFS10L in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10FFS10L and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10FFS10L, subject to availability and destination.
Danfoss COUPLING,FF,F,3/8,CS,10L,NBR, manufacturer part number 10FFS10L. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Air inclusion max cc | 0.01 |
| Angle shape | Straight |
| Application | Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles |
| Body size | 3/8 |
| Brand | Danfoss |
| Burst pressure min psi | 20300 |
| Connection style | Manual connect |
| End size 1 | 10L |
| End type 1 | 24 deg. tube port light duty |
| Finish plating | Guardian sealtm |
| Flow rate GPM | 10.60 |
| Fluid compatibility | Hydraulic fluid |
| Fluid loss cc | 0.00600 |
| Hex size 1 IN | 1.060 |
| Item type | Female half |
| Latch type | Push to connect |
| Product material | Carbon steel |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile(NBR)+Polyurethane(AU) |
| Sub brand | Hansen |
| Thread size 1 | M16X1.5 |
| Valve type | 2 way |
| Working pressure max psi | 5800 |
| Working temperature max F | 212 |
| Working temperature min F | -13 |
