Home / Danfoss (Drives) / HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,STR
Available on request

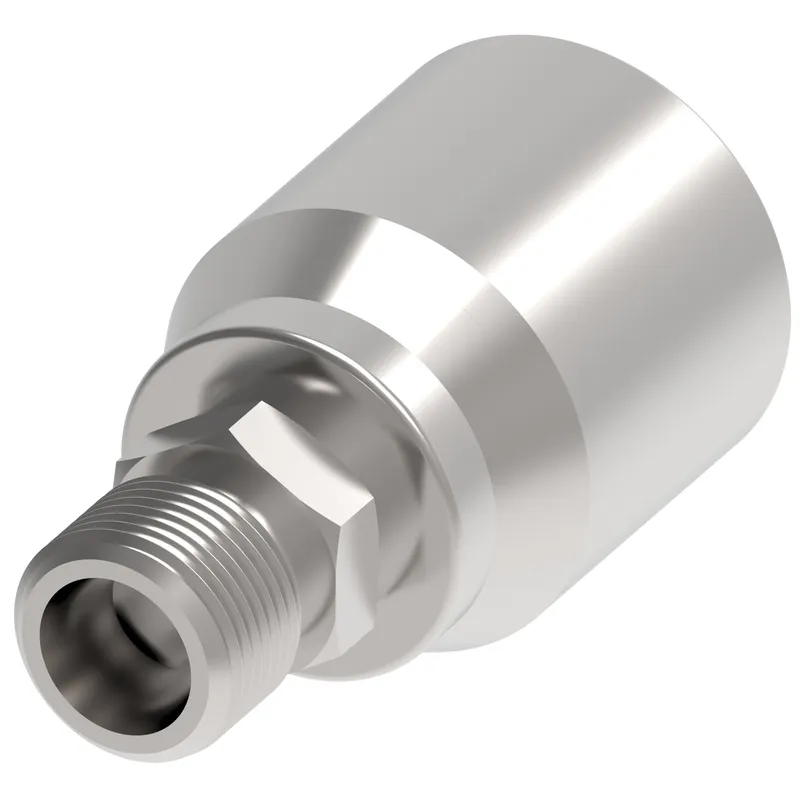

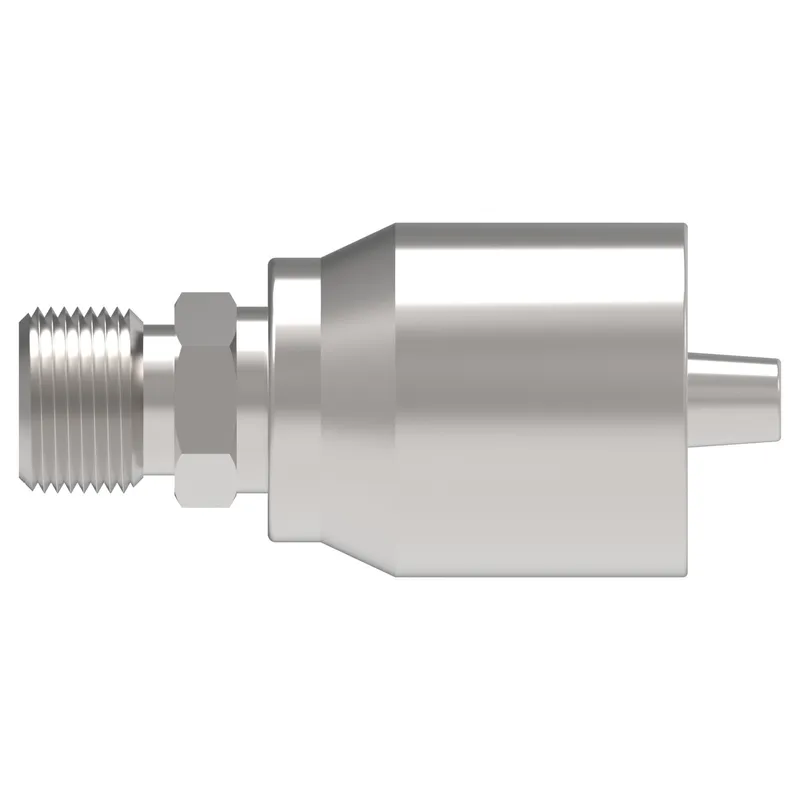

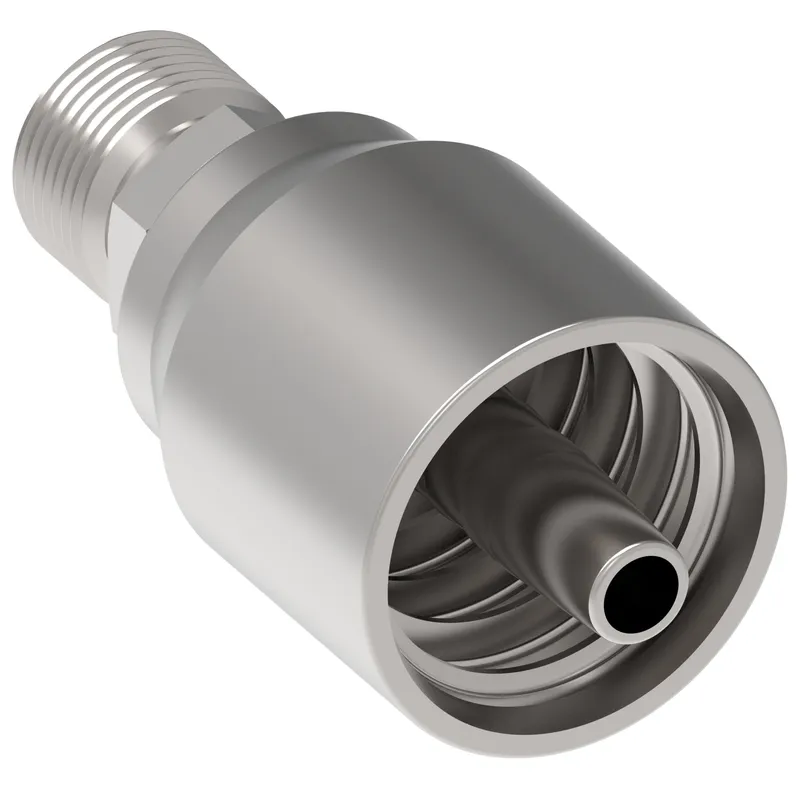

HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,STR

MPN: 10411Y-22-08Z · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBraided hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 10411Y-22-08Z be shipped?

10411Y-22-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 10411Y-22-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 10411Y-22-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10411Y-22-08Z, subject to availability and destination.

Danfoss HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,STR, manufacturer part number 10411Y-22-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.260
A dimension MM57.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End connection torque46-50 lb-ft(62-68 Nm)
End type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN0.945
Hex size 1 MM24.003
Hose cut off factor IN1.020
Hose cut off factor MM26.000
Hose size-8
Inside diameter IN0.3900
Inside diameter MM10.0000
Product height in1.212
Product height mm30.785
Product length in2.260
Product length mm57.404
Product materialCarbon steel
Product width in1.212
Product width mm30.785 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M22X1.5
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
