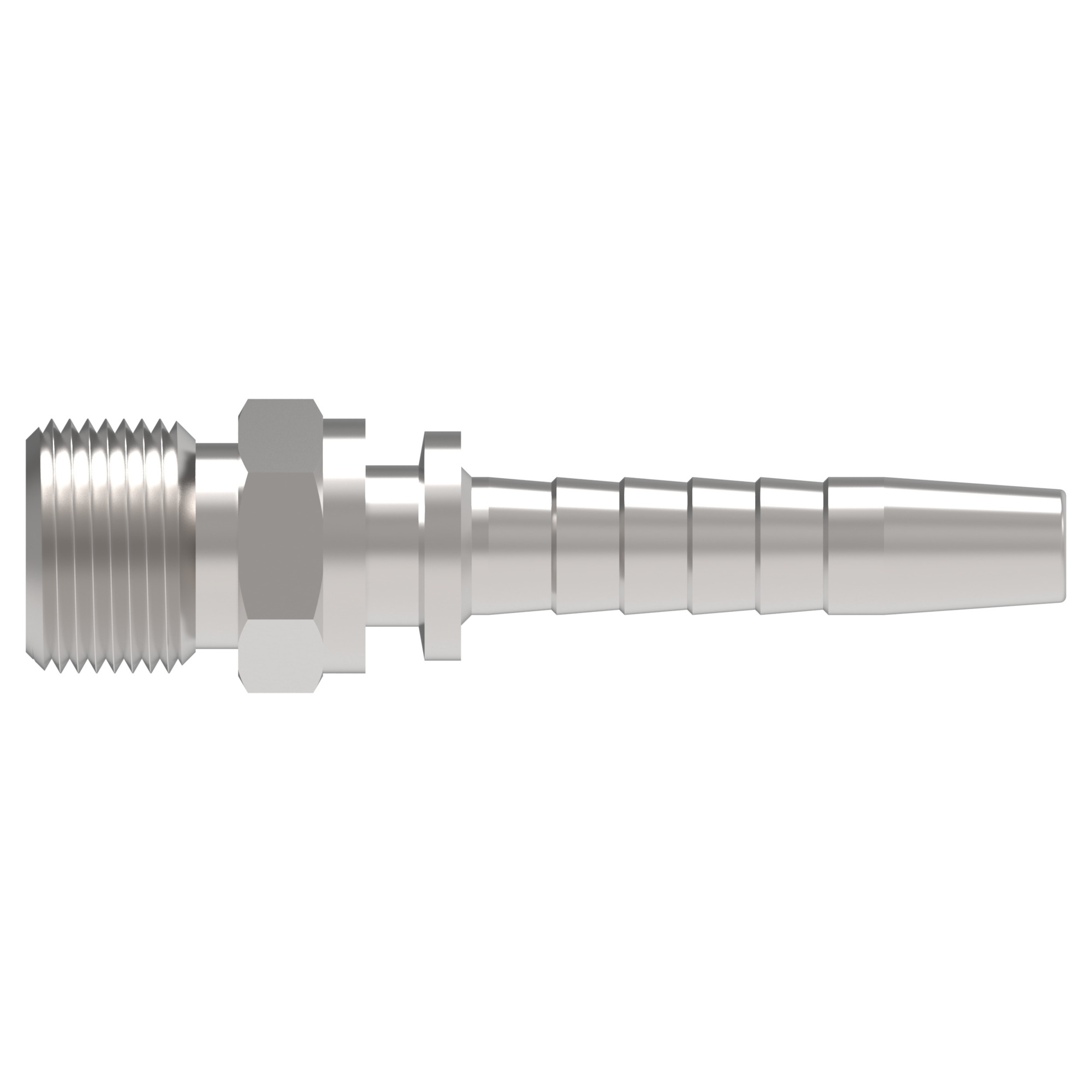

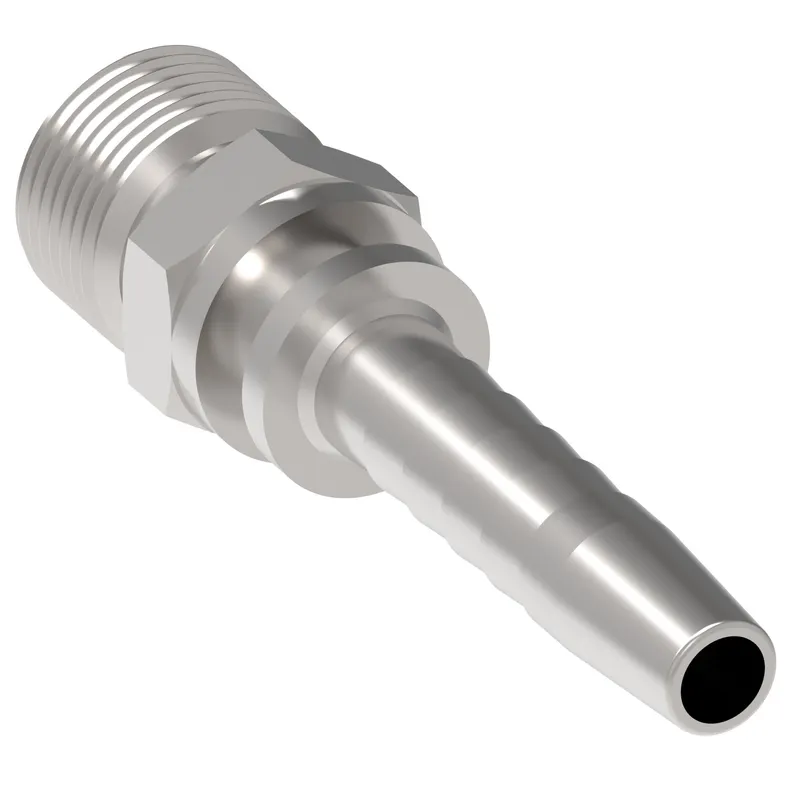

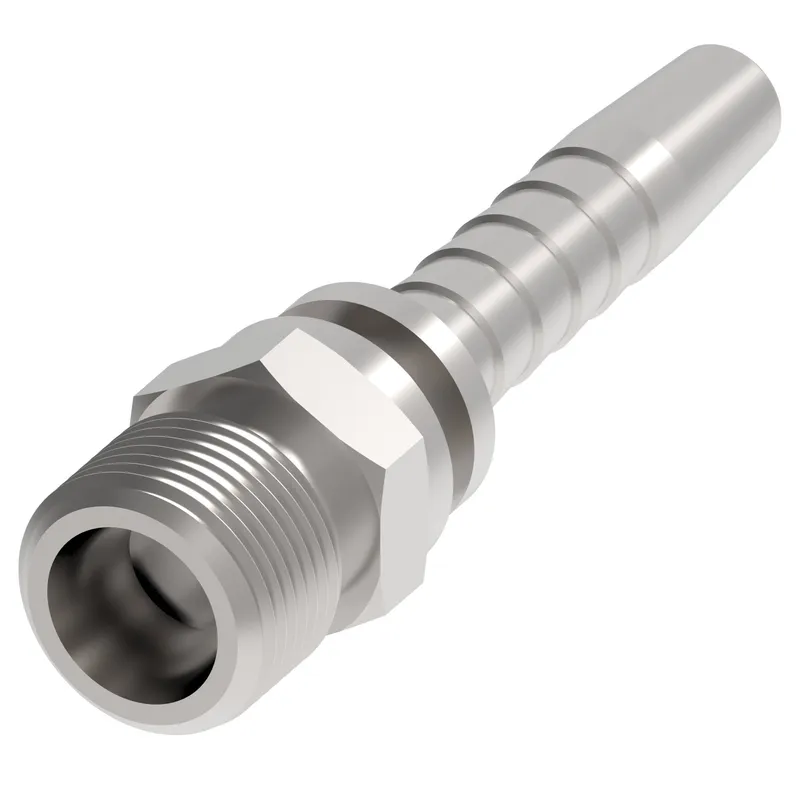

Danfoss 10411L-18-06FAZ

HOSE NIPPLE ASSY,2P/06,DKOL/18,CS,STR

MPN: 10411L-18-06FAZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10411L-18-06FAZ?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOL/18,CS,STR, manufacturer part number 10411L-18-06FAZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.267
A dimension MM	83.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	37-44 lb-ft(50-60 Nm)
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	2.086
Hose cut off factor MM	53.000
Hose size	-6
Inside diameter IN	0.2750
Inside diameter MM	7.0000
Product height in	0.945
Product height mm	24.000
Product length in	3.268
Product length mm	83.000
Product material	Carbon steel
Product width in	0.945
Product width mm	24.000 mm
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M18x1.5

10411L-18-06FAZ: frequently asked questions

When can 10411L-18-06FAZ be shipped?

10411L-18-06FAZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 10411L-18-06FAZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 10411L-18-06FAZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10411L-18-06FAZ, subject to availability and destination.
