Danfoss 08Z-666

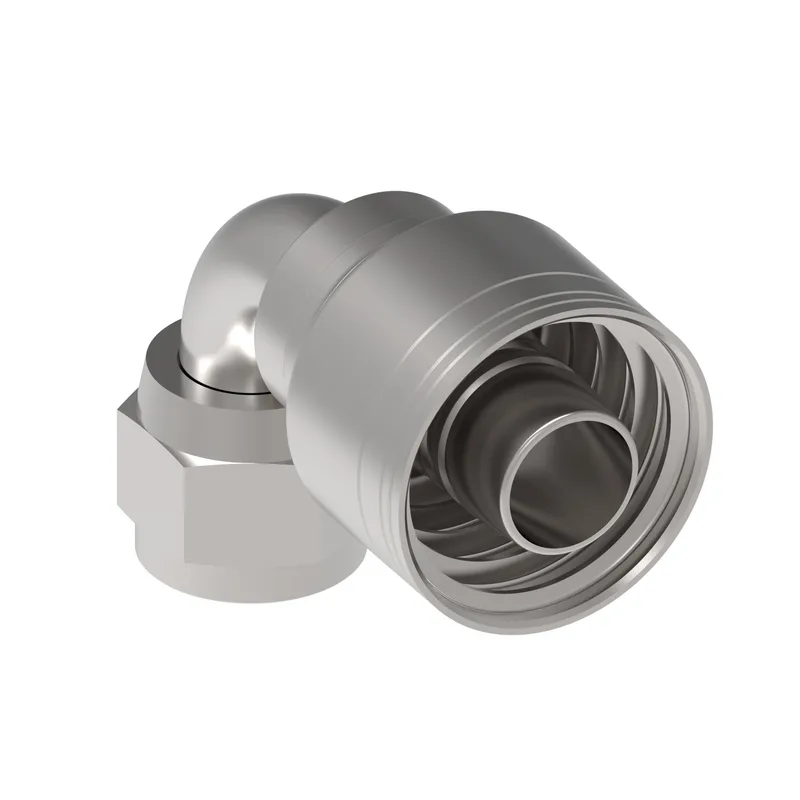

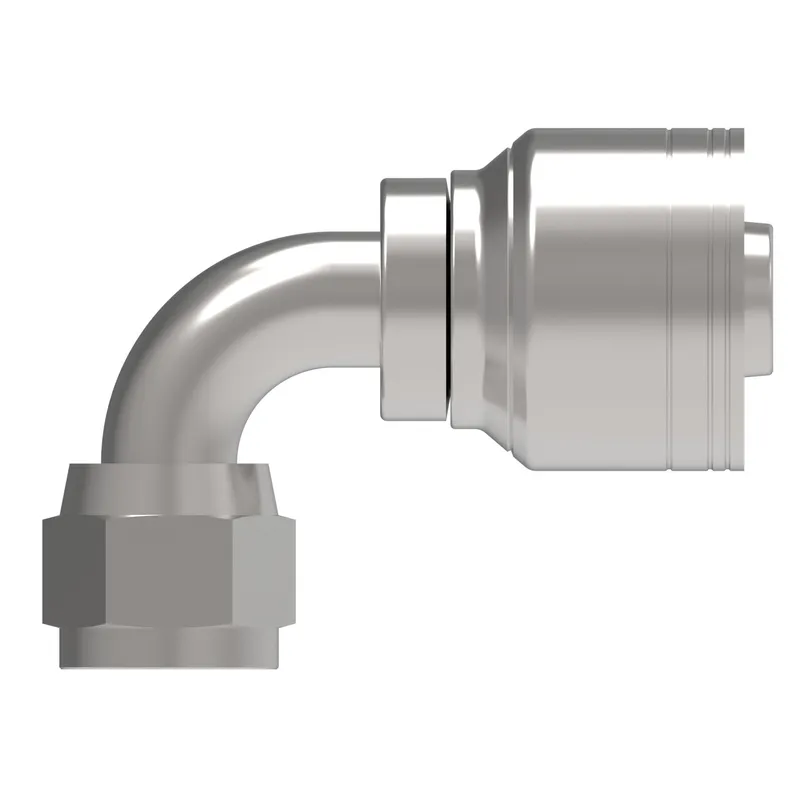

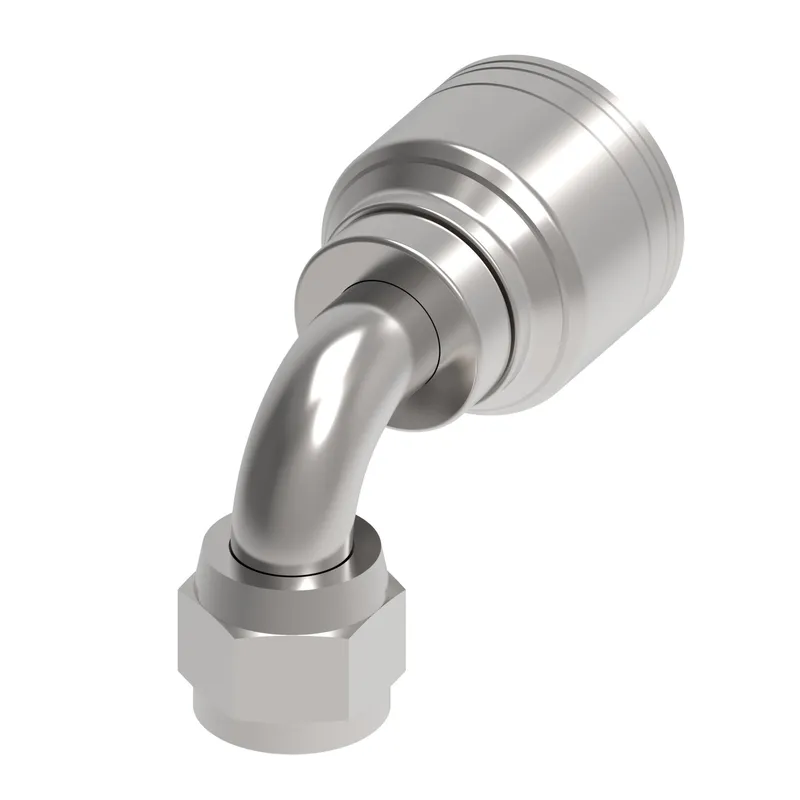

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

MPN
08Z-666
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-666?

Danfoss Hose End (perm) 1S/1R 90 D F SAE 37 Sw, manufacturer part number 08Z-666. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789294814
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.38
Compatible tube OD MM9.525
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN0.840
Drop dimension MM21.3
End size 1-6
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN0.680
Hex size 1 MM17.3
Hose cut off factor IN1.260
Hose cut off factor MM32.004
Hose size-8
Inside diameter IN0.240
Inside diameter MM6.096
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.375
Tube OD 1 MM9.525

08Z-666: frequently asked questions

When can 08Z-666 be shipped?

08Z-666 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-666 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-666 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-666, subject to availability and destination.
