Danfoss 06Z-A26

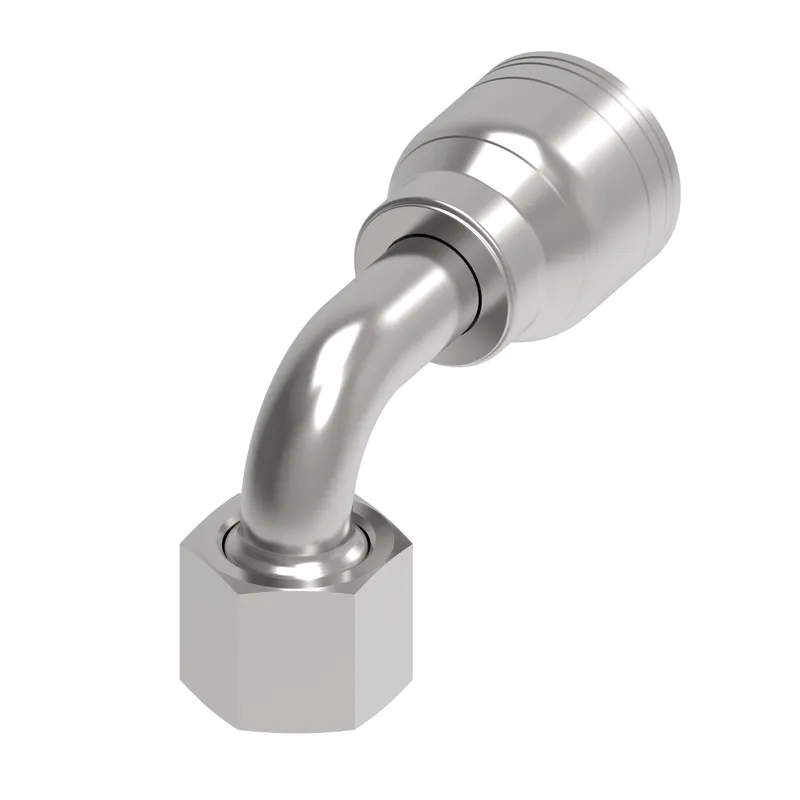

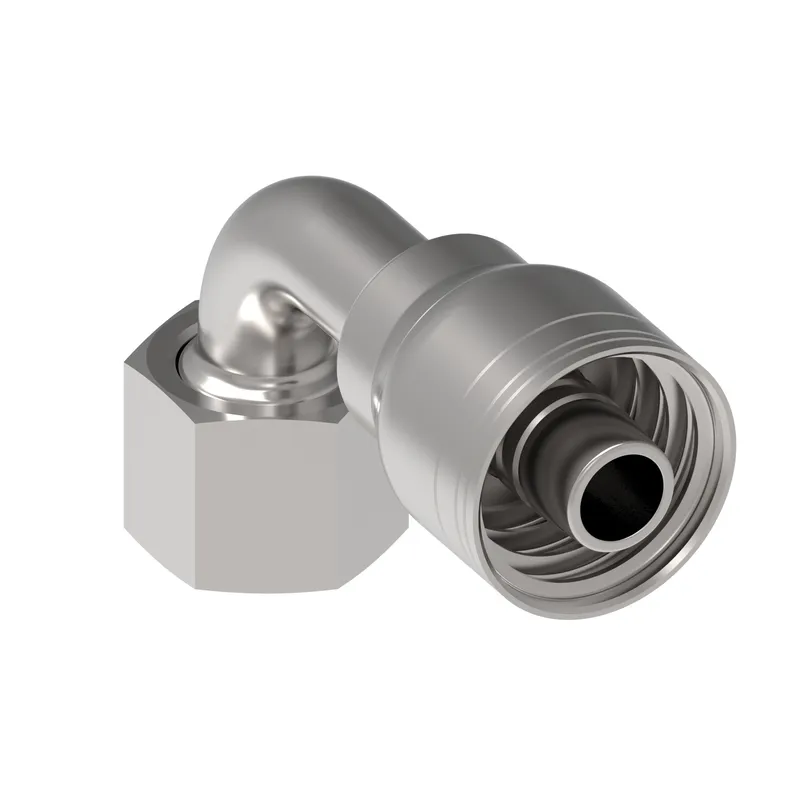

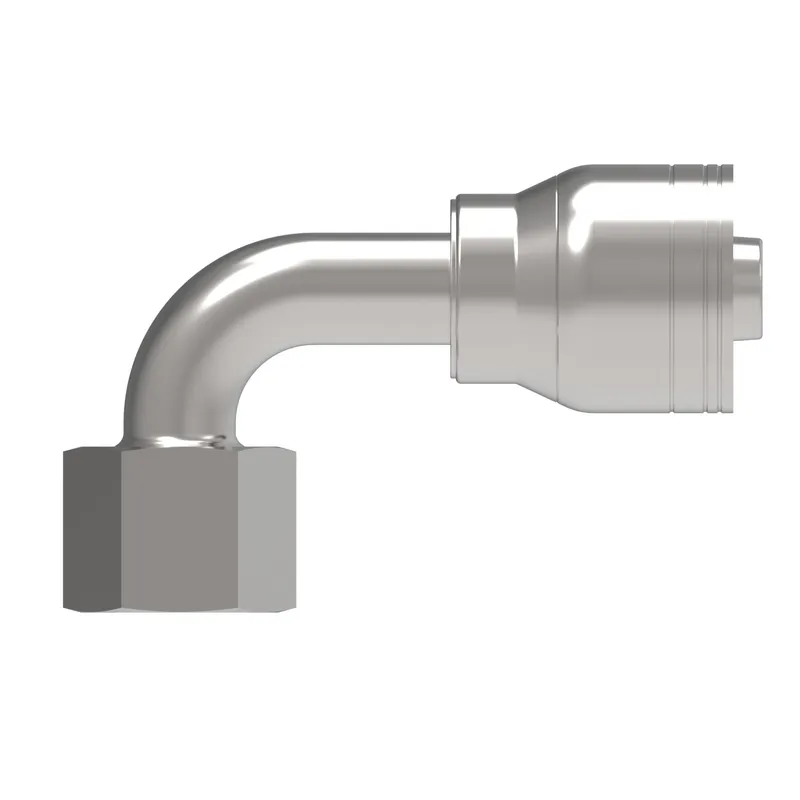

Hose End (perm) 1S/1R 90 D F. ORS SWVL

MPN: 06Z-A26
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-A26?

Danfoss Hose End (perm) 1S/1R 90 D F. ORS SWVL, manufacturer part number 06Z-A26. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789292841
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.370
Compatible hose ID MM	9.398
Compatible tube OD IN	0.38
Compatible tube OD MM	9.525
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	0.900
Drop dimension MM	22.90
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.813
Hex size 1 MM	20.600
Hose cut off factor IN	1.340
Hose cut off factor MM	34.036
Hose size	-6
Inside diameter IN	0.2400
Inside diameter MM	6.0960
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.375
Tube OD 1 MM	9.525

06Z-A26: frequently asked questions

When can 06Z-A26 be shipped?

06Z-A26 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 06Z-A26 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 06Z-A26 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 06Z-A26, subject to availability and destination.
