Danfoss 06Z-A24

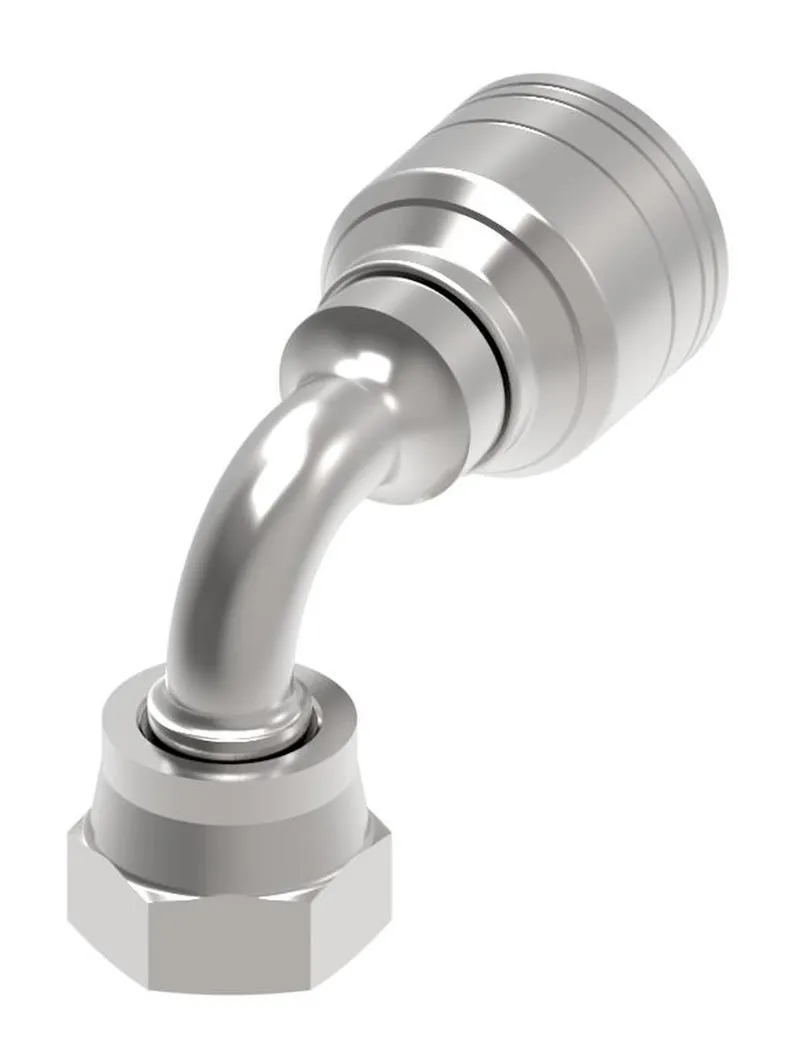

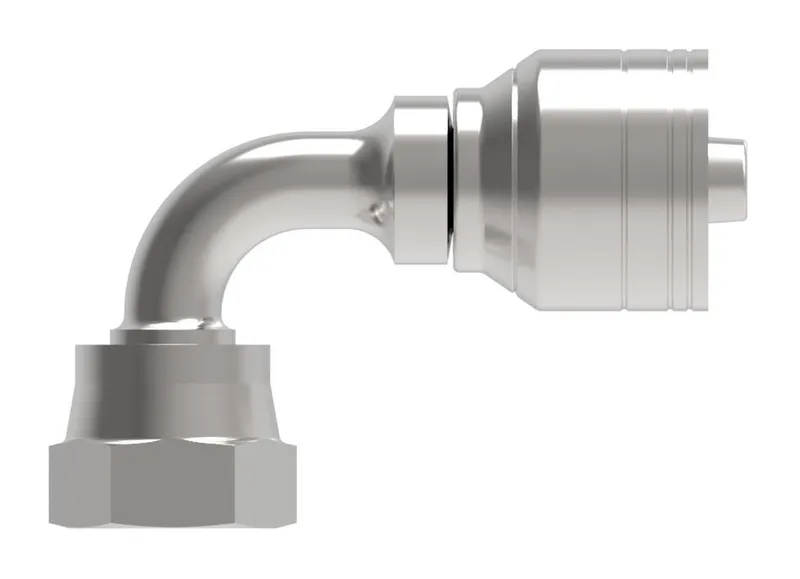

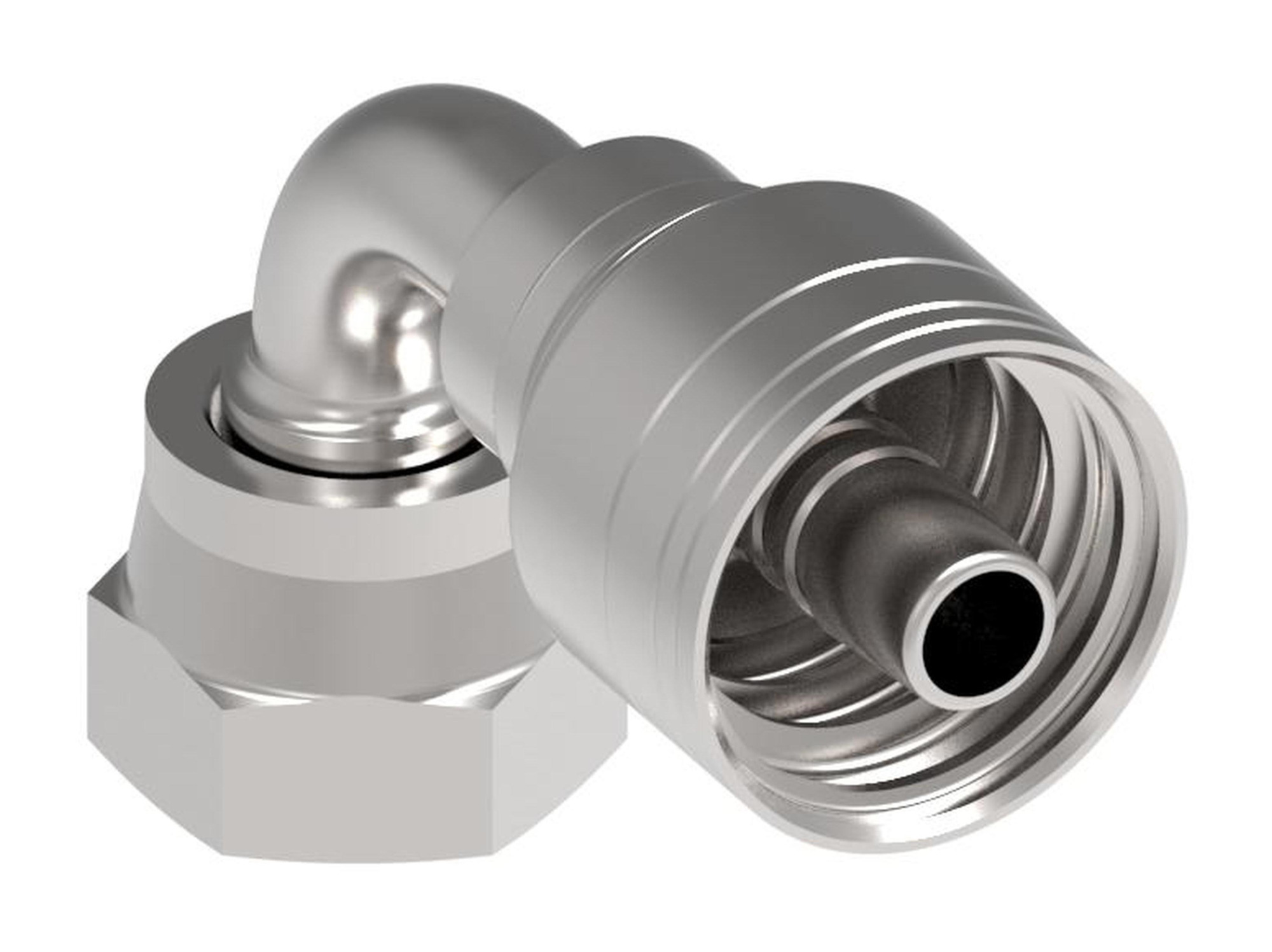

Hose End (perm) 1S/1R 90 D F. ORS SWVL

MPN: 06Z-A24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-A24?

Danfoss Hose End (perm) 1S/1R 90 D F. ORS SWVL, manufacturer part number 06Z-A24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789292834
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.370
Compatible hose ID MM	9.398
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	0.820
Drop dimension MM	20.80
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.690
Hex size 1 MM	17.500
Hose cut off factor IN	1.210
Hose cut off factor MM	30.734
Hose size	-6
Inside diameter IN	0.1700
Inside diameter MM	4.3180
Product material	Carbon steel
Thread sealant	No
