HOSE FTG, 1Z/4, JIC-F/4, -S, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 04Z-684-350BX be shipped?
04Z-684-350BX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 04Z-684-350BX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 04Z-684-350BX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 04Z-684-350BX, subject to availability and destination.
Danfoss HOSE FTG, 1Z/4, JIC-F/4, -S, 45D, manufacturer part number 04Z-684-350BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789328342 |
| A dimension IN | 1.810 |
| A dimension MM | 46.100 |
| Angle shape | 45 Degree |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Compatible hoses | H881 |
| Construction Style | Crimp |
| Drop dimension IN | 0.330 |
| Drop dimension MM | 8.40 |
| End connection torque | 11-12 lb-ft(15-16 Nm) |
| End size 1 | -4 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 MM | 14.000 |
| Hose cut off factor IN | 0.970 |
| Hose cut off factor MM | 24.600 |
| Hose size | -4 |
| Inside diameter IN | 0.1700 |
| Inside diameter MM | 4.2000 |
| Product height in | 0.330 |
| Product height mm | 8.400 |
| Product material | Carbon steel |
| Series | 1A/Z Series |
| Thread sealant | No |
| Thread size 1 | 7/16-20 UNF |
| Working pressure max BAR | 450 |
| Working pressure max PSI | 6550 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestHOSE FTG, 1Z/4, JIC-F/6, -S, 90D
Available on requestFtng (perm), SAE 37 R2

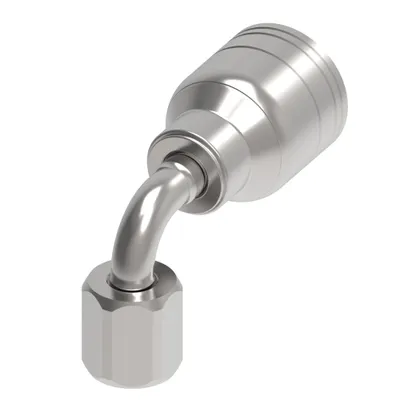

Available on requestFtng (perm) R2 Female JIC 90 Deg Elbow

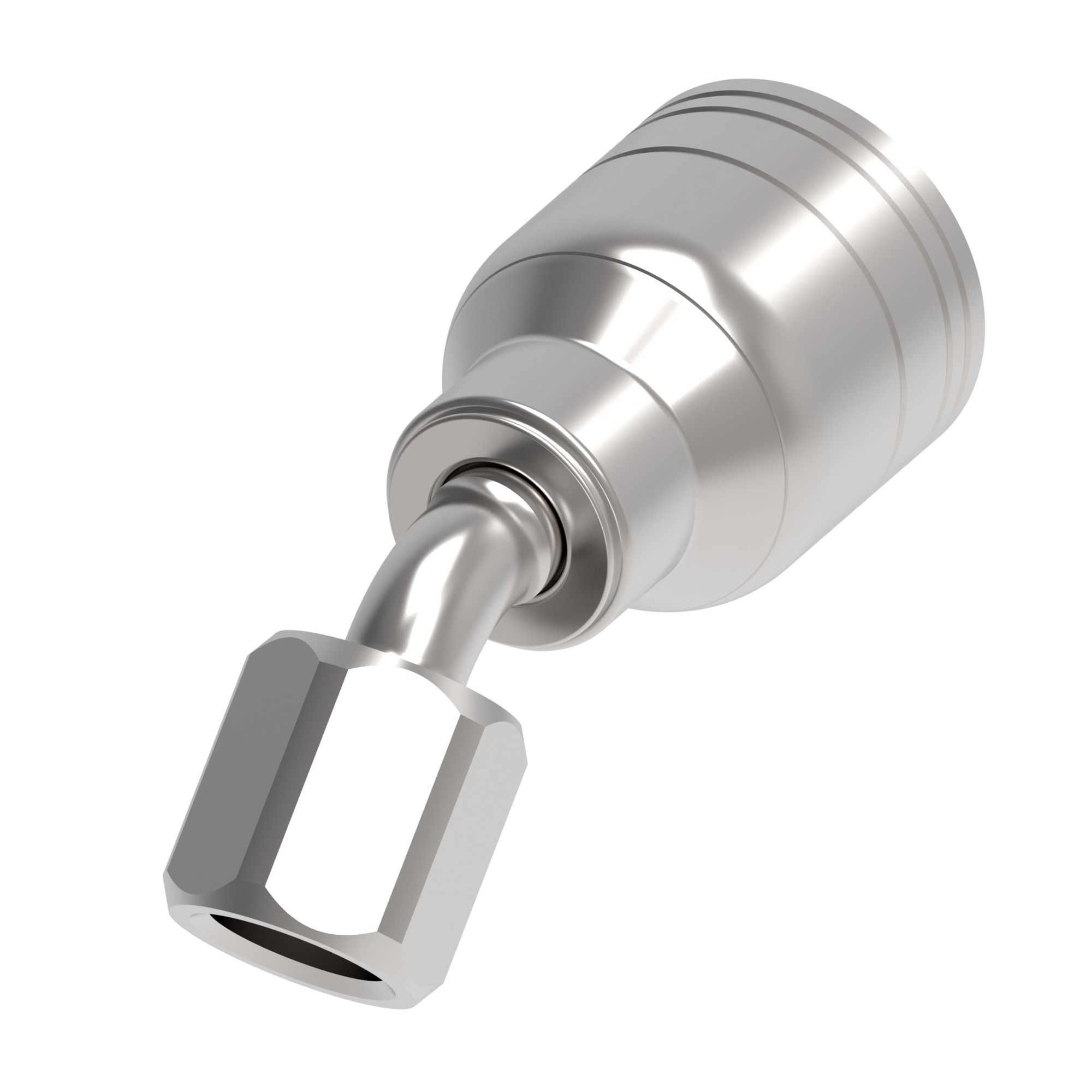

Available on requestFtng (perm) 1S/1R Female JIC 45 Deg Swvl
Available on requestFtng (perm) 1S/1R

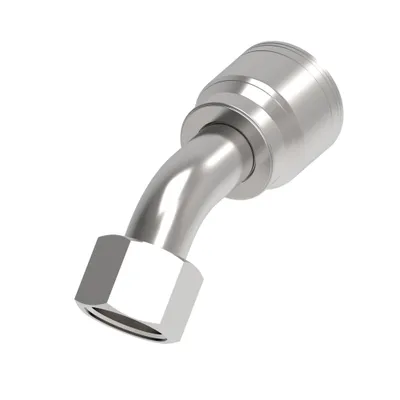

Available on requestFtng (perm) SAE 37 R2 Female JIC 45D

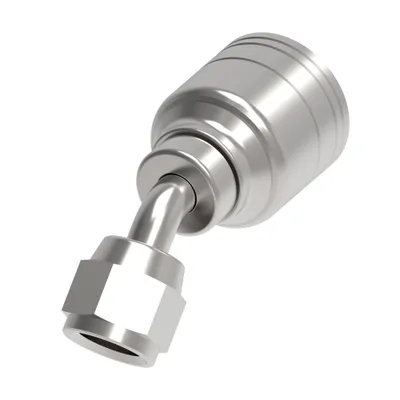

Available on requestHose End (perm) 45 D F SAE 37 Swivel
