Danfoss 02-414643

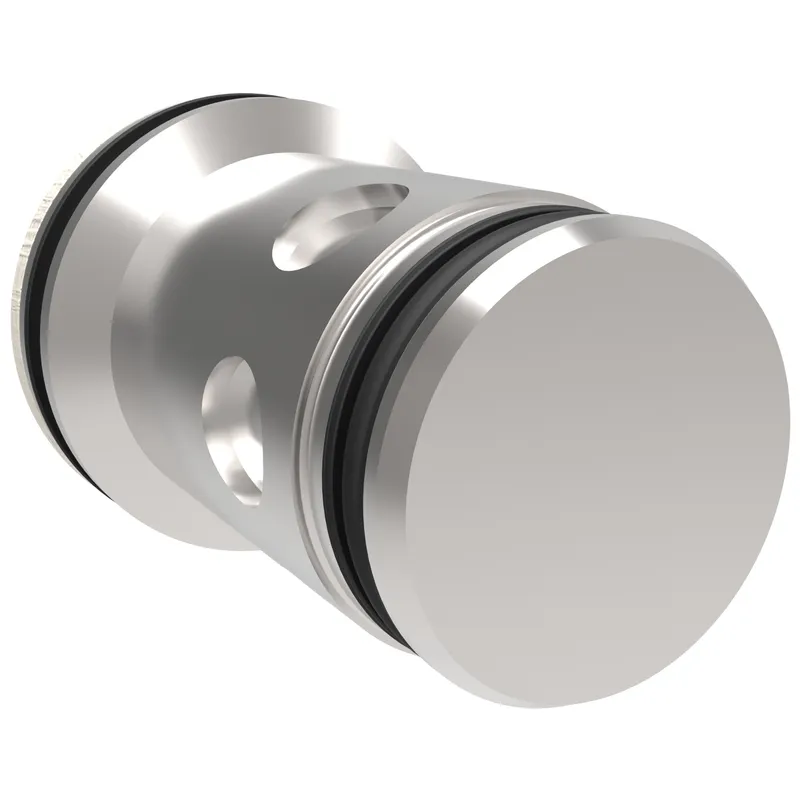

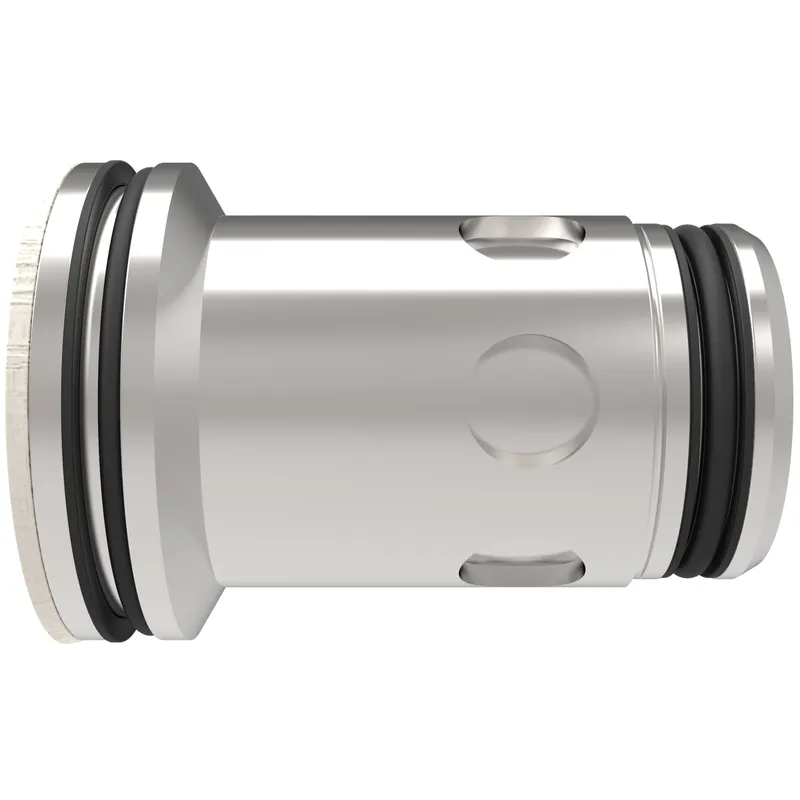

CVI-16-D10-L-50-EN106, CVI16D10L50EN106

MPN: 02-414643
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-414643?

Danfoss CVI-16-D10-L-50-EN106, CVI16D10L50EN106, manufacturer part number 02-414643. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Cracking pressure BAR	0.33
Cracking pressure PSI	5.0
Design Series	50 Design
Flow rate LPM	255
Flow rate USGPM	67.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Relief
Interface	No
Leakage	Standard
Model Code 1	CVI16D10L50EN106
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.250
Product height mm	31.750
Product length in	2.200
Product length mm	55.880
Product width in	1.250
Product width mm	31.75
Seal material	Buna-N
Size	NG 16
Special feature	High pressure seals
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
