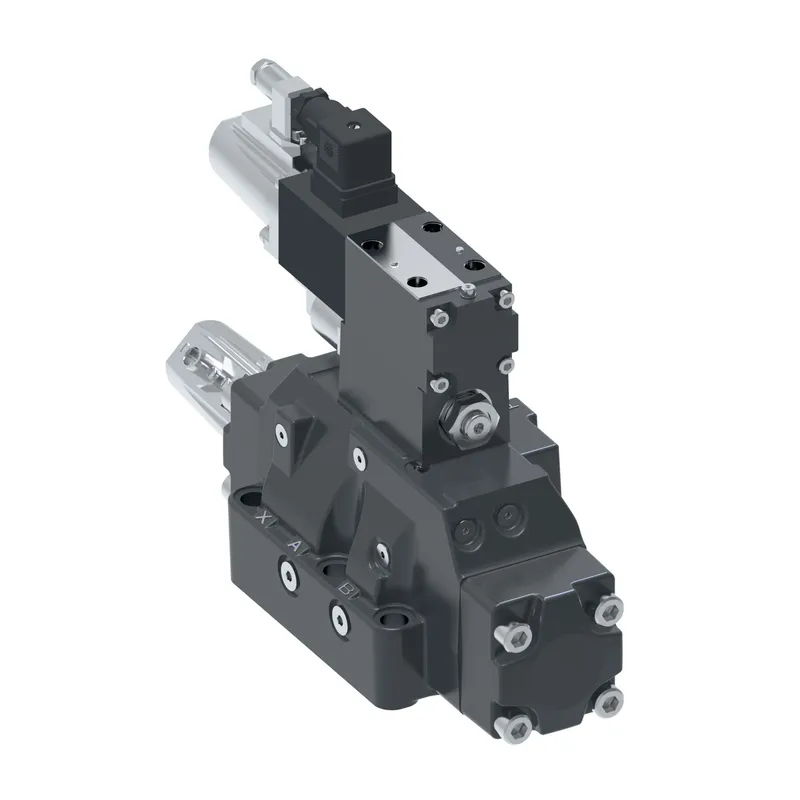

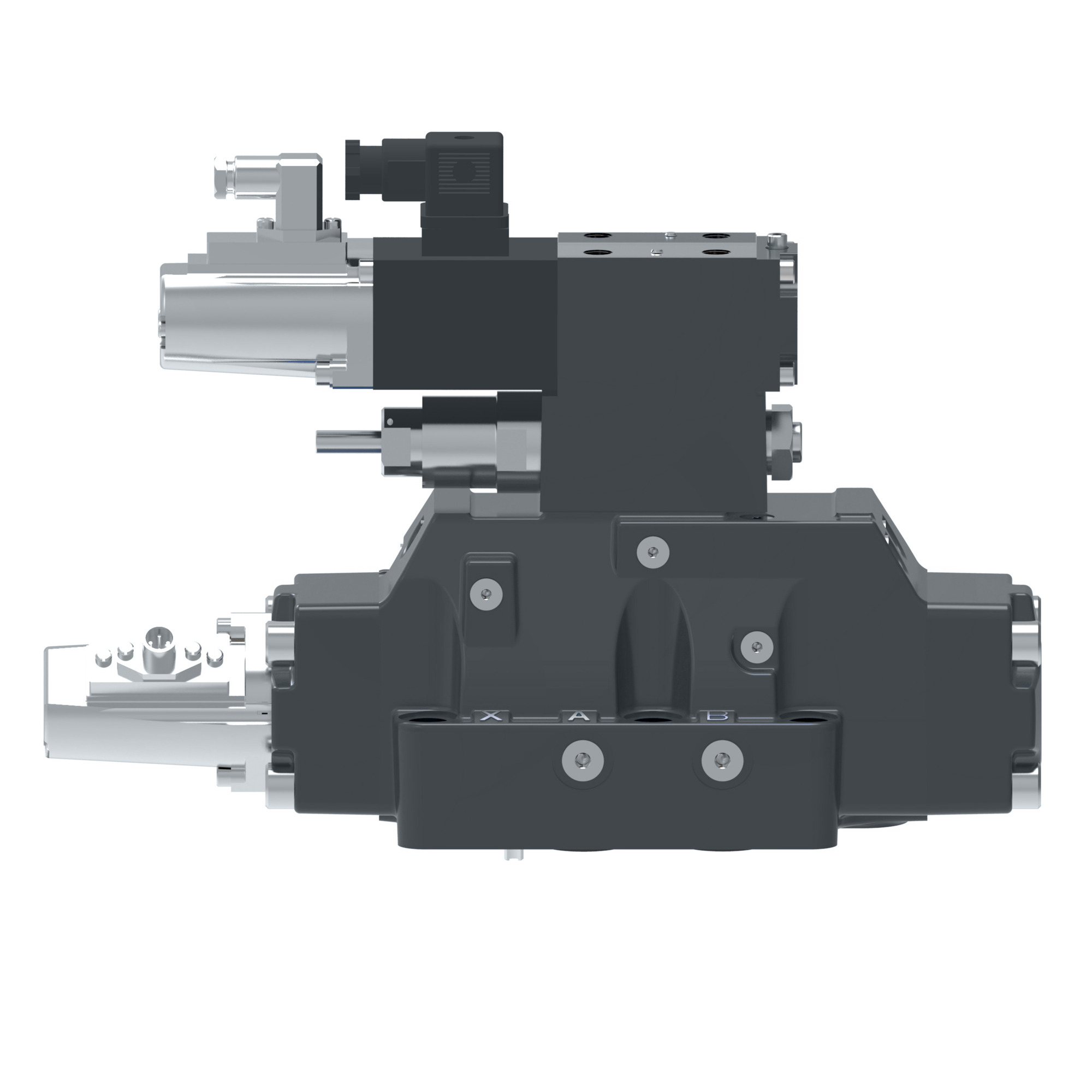

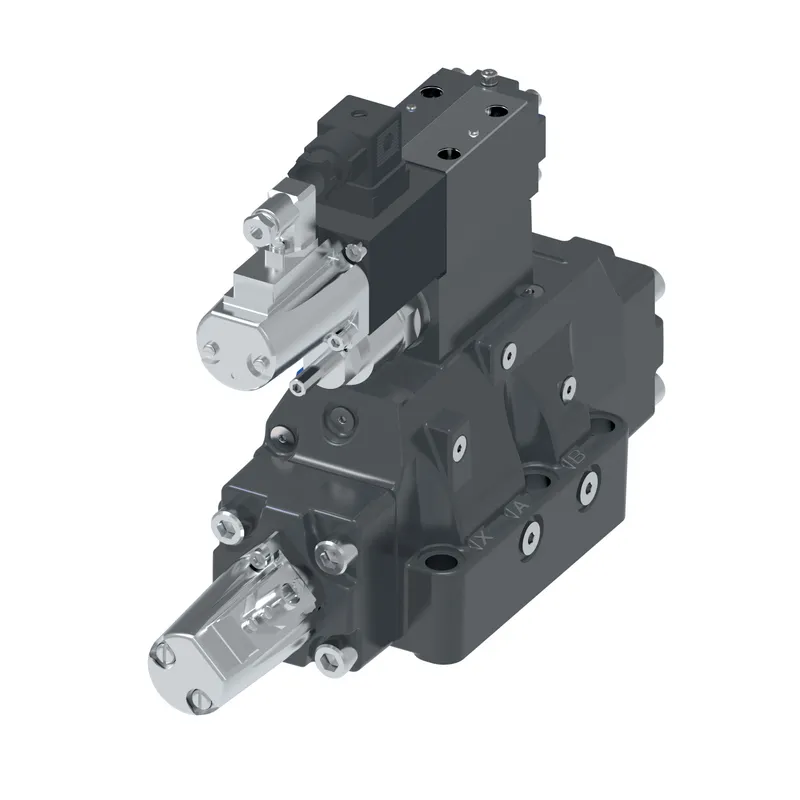

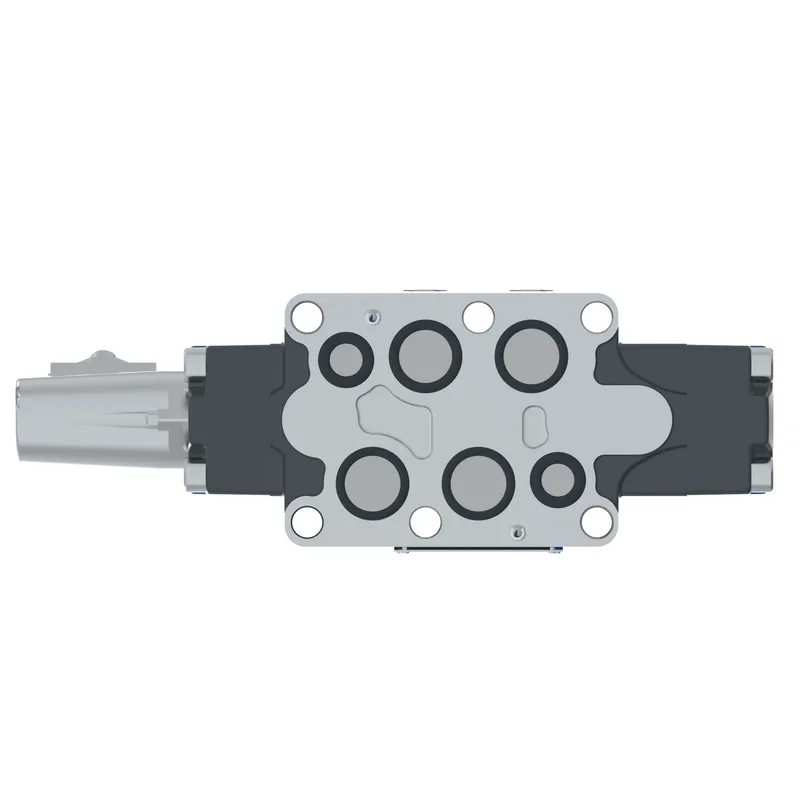

Danfoss 02-414635

KHDG5V-8-2C375N250-EX-VM-U1-H1-30, KHDG5V82C375N250EXVMU1H130

MPN: 02-414635
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-414635?

Danfoss KHDG5V-8-2C375N250-EX-VM-U1-H1-30, KHDG5V82C375N250EXVMU1H130, manufacturer part number 02-414635. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	375.00
A Port flow USGPM	99.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	250.00
B Port flow USGPM	66.00
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	30 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-08/NFPA D08/CETOP 8/NG25
Manual override	Plain
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KHDG5V82C375N250EXVMU1H130
On board electronics	No
Performance	Servo
Pilot supply	External
Product height in	9.960
Product height mm	252.984
Product length in	13.240
Product length mm	336.296
Product width in	4.630
Product width mm	117.602
ProFX compatible	No
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Two stage
Symmetric flow	No
Tank port rating BAR	350.0
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
