What is the Danfoss 02-399391?

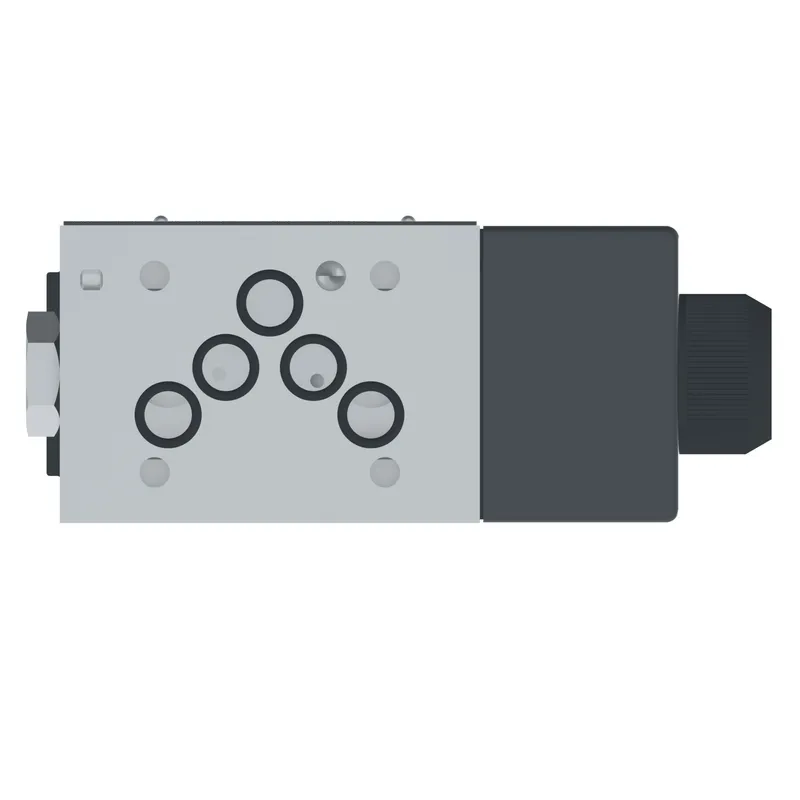

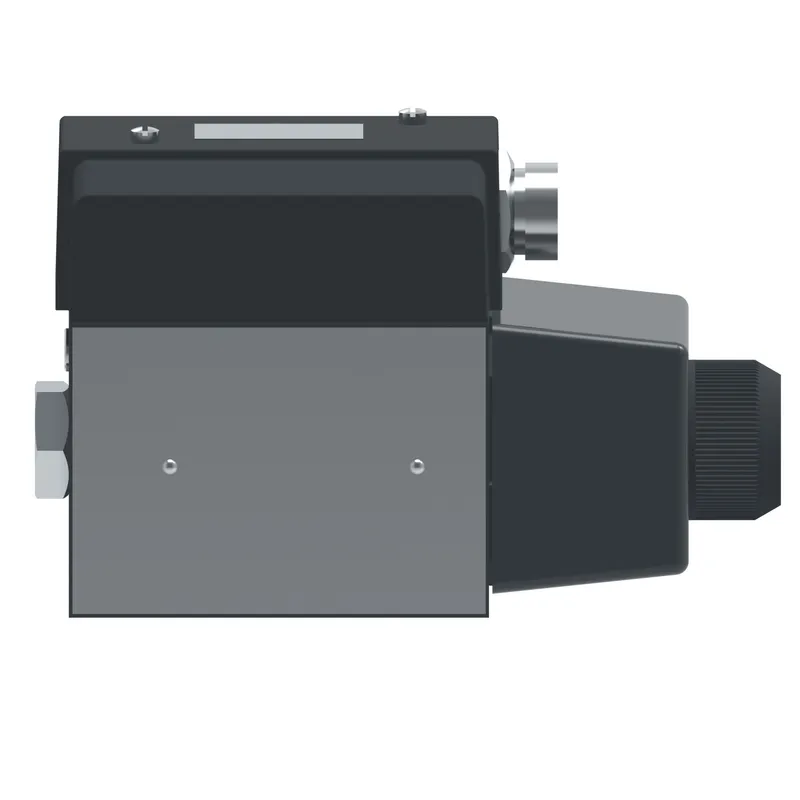

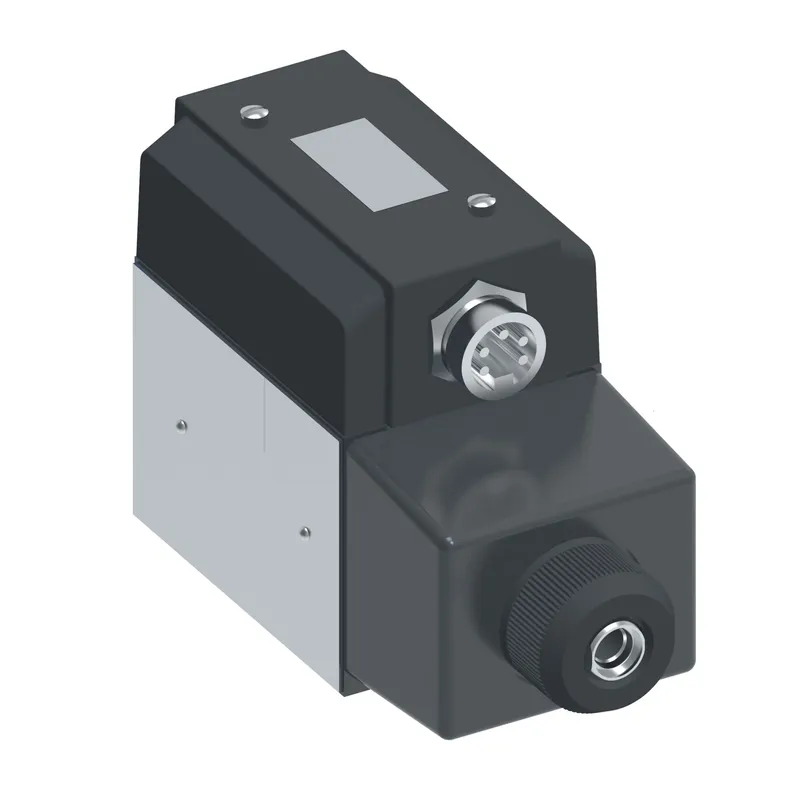

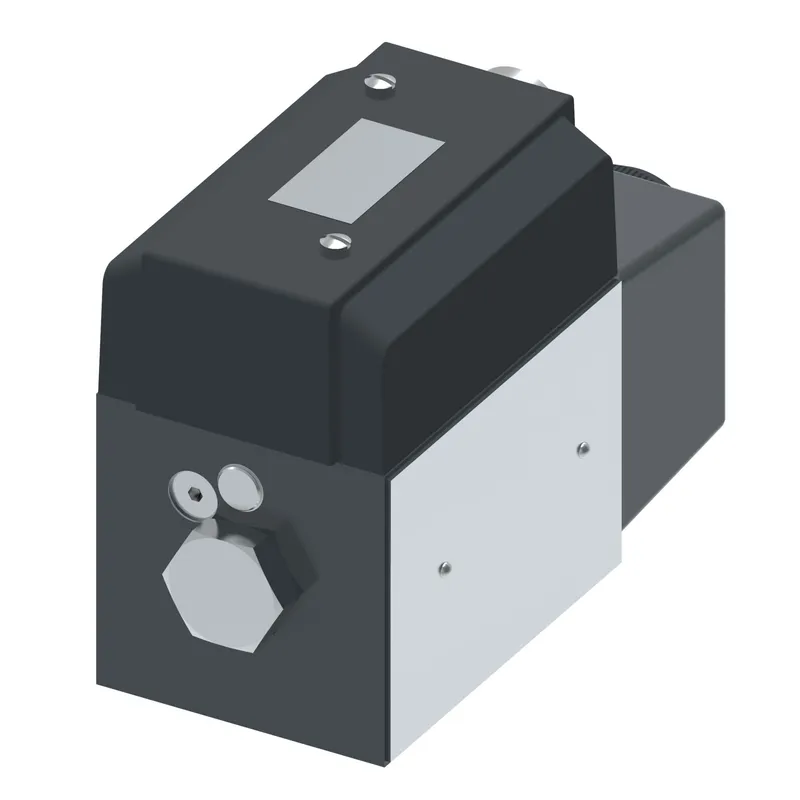

Danfoss DG4V4-012A-M-S3-PA5W-H5-10-S633, DG4V4012AMS3PA5WH510S633, manufacturer part number 02-399391. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series10 Series
Electrical ConnectionInstaplug male receptacle only
Energ Time50-50 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1DG4V4012AMS3PA5WH510S633
PerformanceStandard performance
Power Consumption45 watt
Pressure rating BAR315
Pressure rating PSI4500
Product height in4.590
Product length in8.440
Product length mm214.376
Product width in2.840
Product width mm72.136
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresVaristor added, special wiring
Spool Position MonitorYes
Spool TypeSpool 2
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR120.0
Tank port rating PSI1750
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
