Danfoss 02-399388

DG5V-10-H-0A-E-M-U-C-10, DG5V10H0AEMUC10

MPN
02-399388
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-399388?

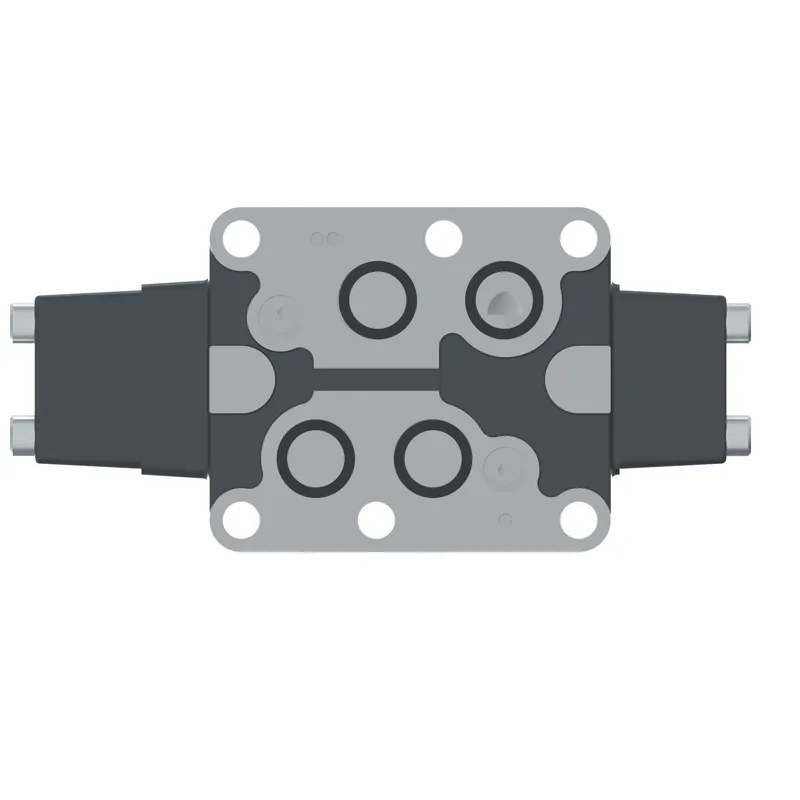

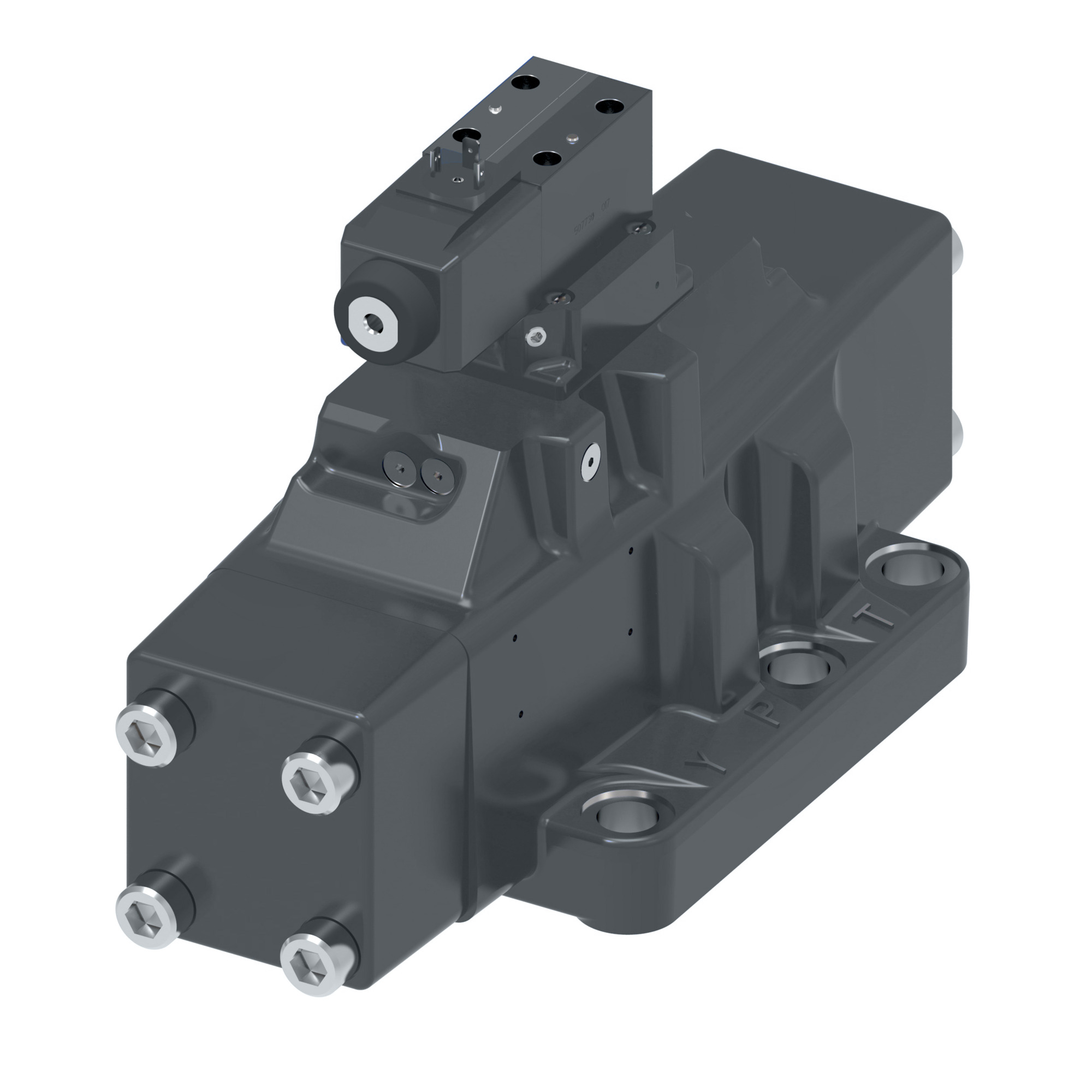

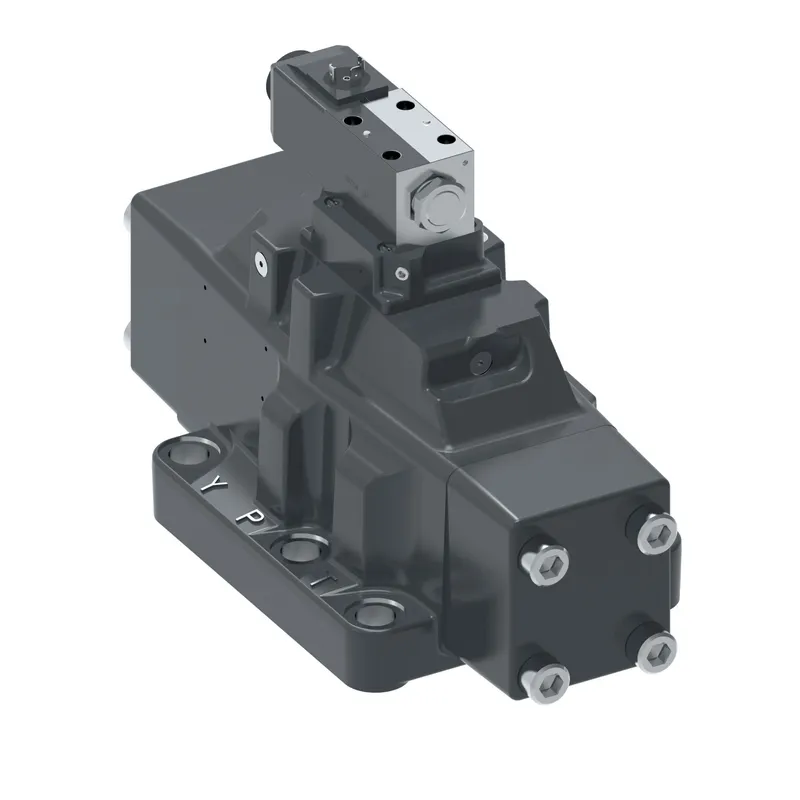

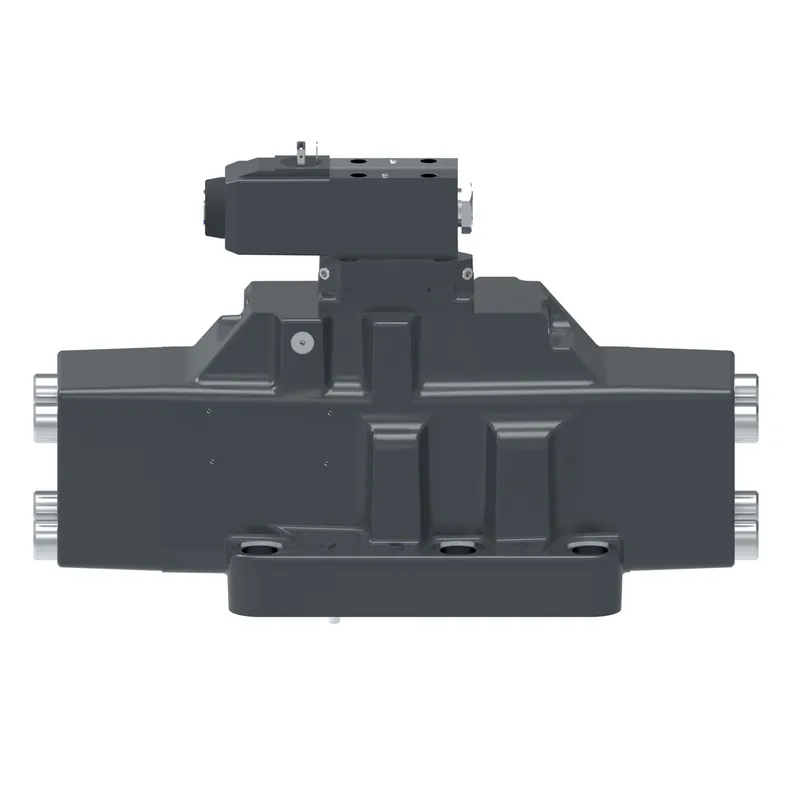

Danfoss DG5V-10-H-0A-E-M-U-C-10, DG5V10H0AEMUC10, manufacturer part number 02-399388. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating220 VAC 50Hz
Design Series10 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureExternal
Flow rate upto GPM290.0
Flow rate upto LPM1100.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-10
Manual overridePlain
Model CodeDG5V10H0AEMUC10
PerformanceHigh performance
Power Consumption54 VA
Pressure rating BAR350
Pressure rating PSI5000
Product height in9.870
Product height mm250.698
Product length in16.500
Product length mm419.100
Product width in7.500
Product width mm190.5
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 0
Spring ArrangementSpring offset end to end
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-399388: frequently asked questions

When can 02-399388 be shipped?

02-399388 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-399388 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-399388 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-399388, subject to availability and destination.
