What is the Danfoss 02-395181?

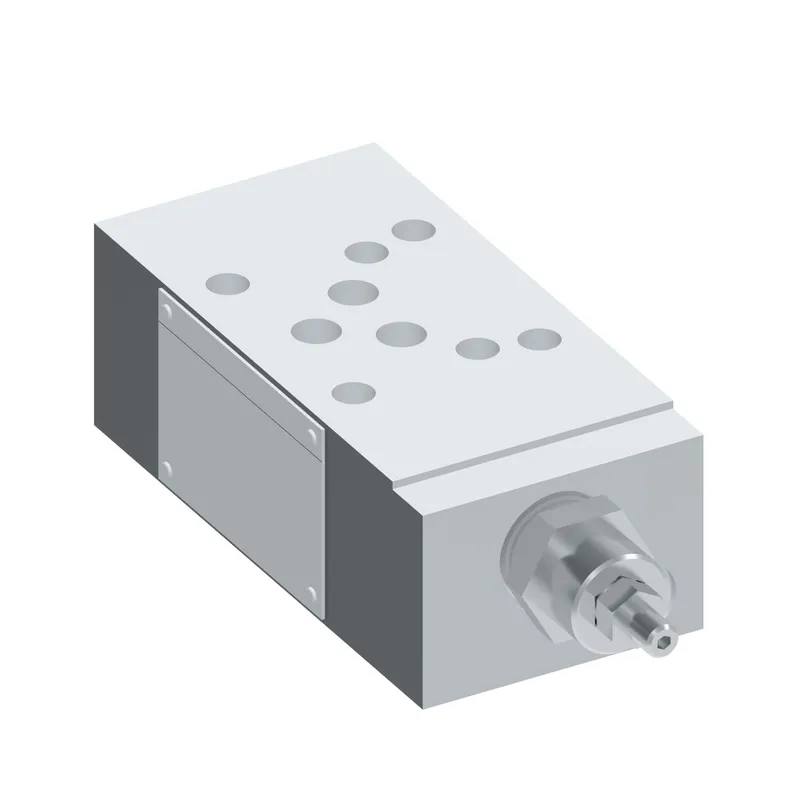

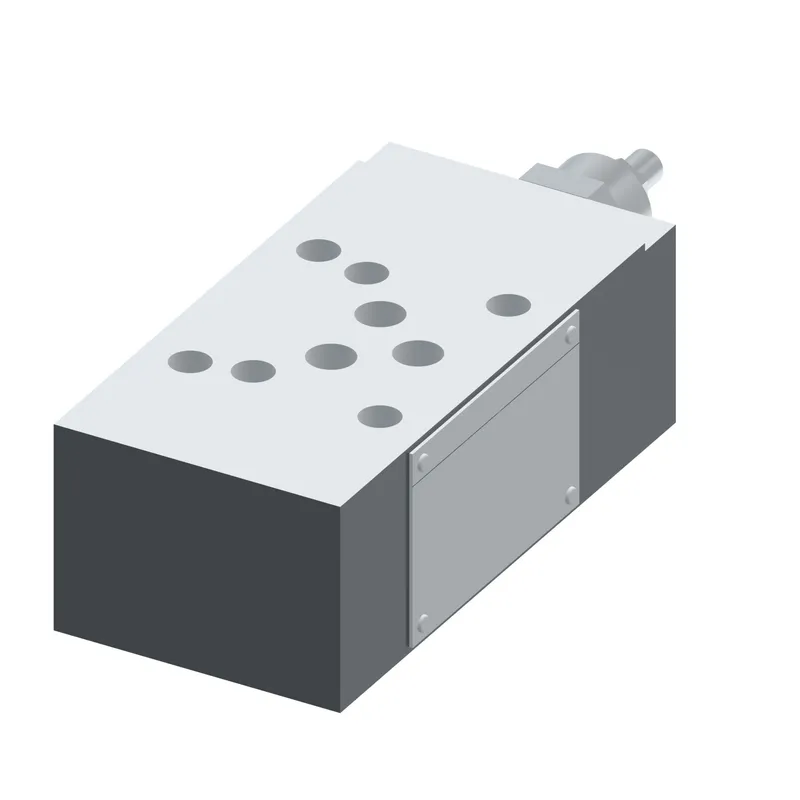

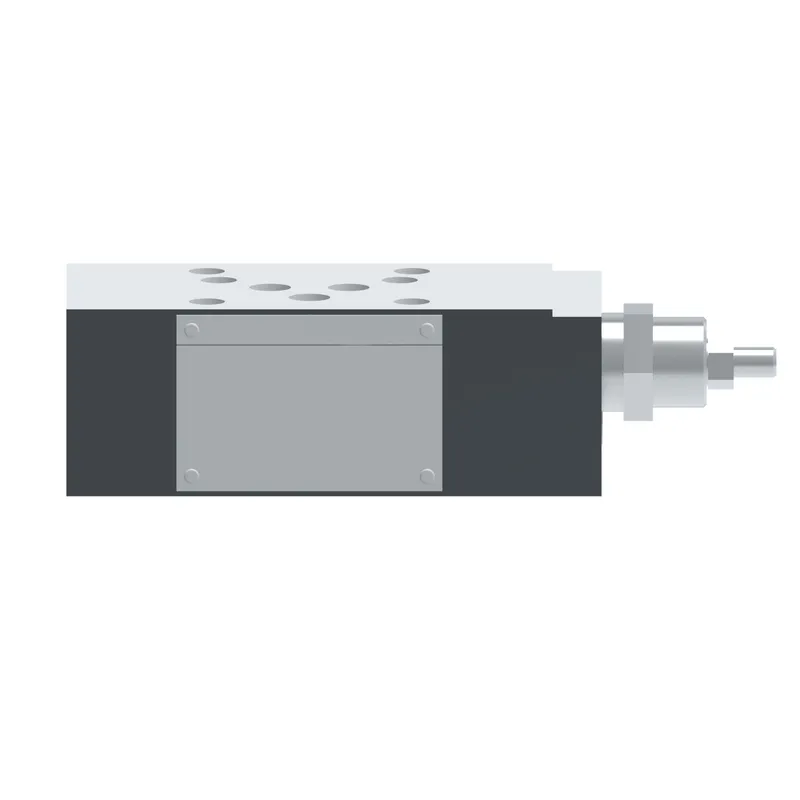

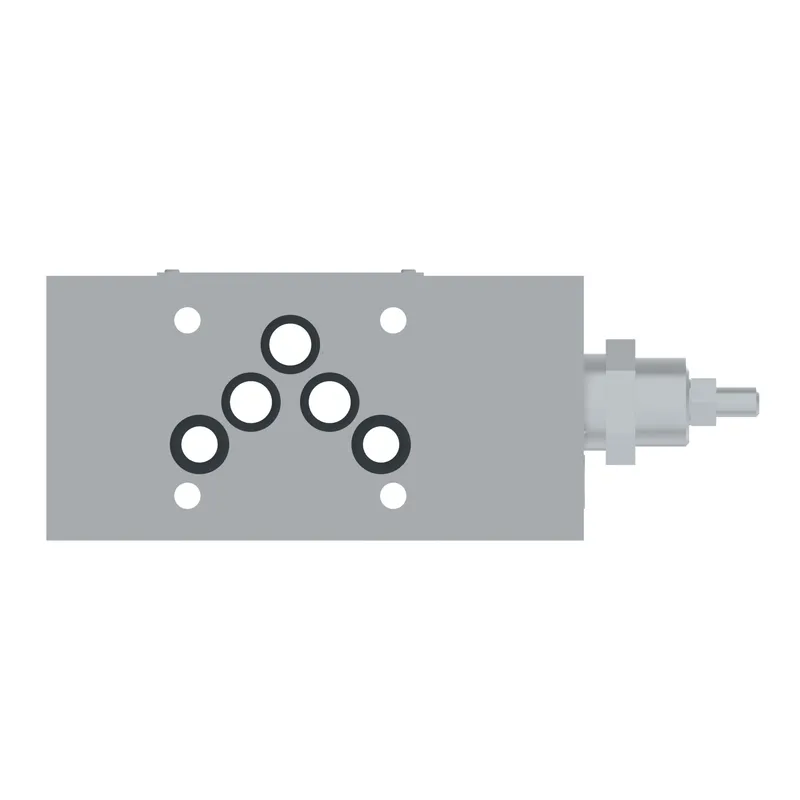

Danfoss DGMC-5-AT-FW-E-B-30, DGMC5ATFWEB30, manufacturer part number 02-395181. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeScrew and locknut
BrandVickers by Danfoss
Design Series30 Series
External drainYes
Flow rate upto LPM120
Flow rate upto USGPM32.0
Fluid Cleanliness17/15/12 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread TypeG1/8" (1/8" BSPF)
InterfaceISO4401-05
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMC5ATFWEB30
PerformanceStandard
Port drained intoT port
Port operated uponA cylinder port
Pressure adjustment range4-200 bar (60-2900 psi)
Product height in1.970
Product height mm50.038
Product length in7.390
Product length mm187.706
Product width in2.820
Product width mm71.628
Remote control portNo
Seal typeViton
Special featuresNone
Valve Mount TypeSubplate/manifold mounted
Valve typeSingle relief valve
Working temp max C80
Working temp max F176
Working temp min C0
Working temp min F32
