Danfoss 02-395135

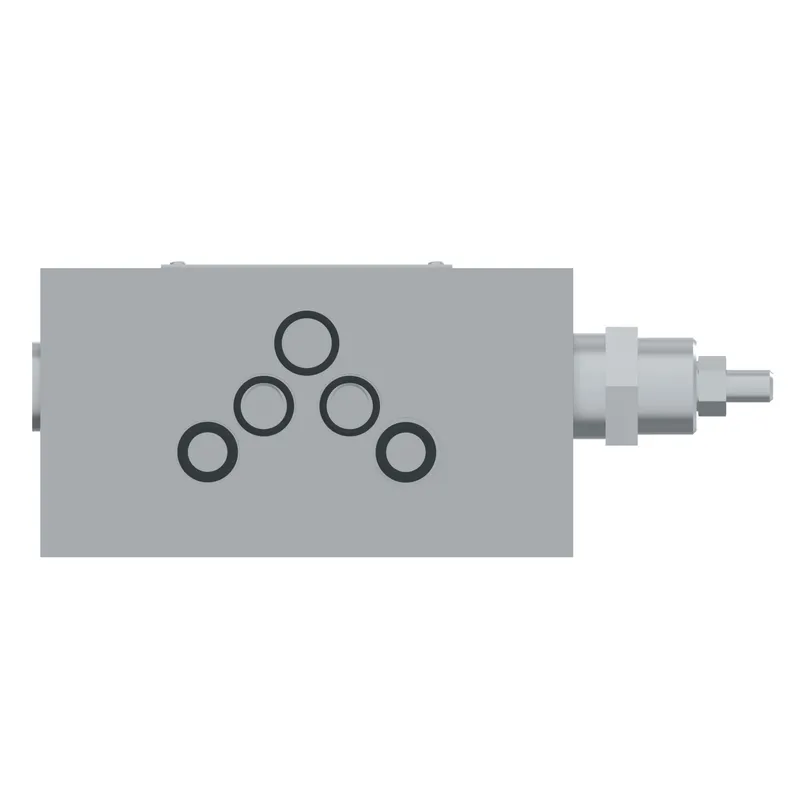

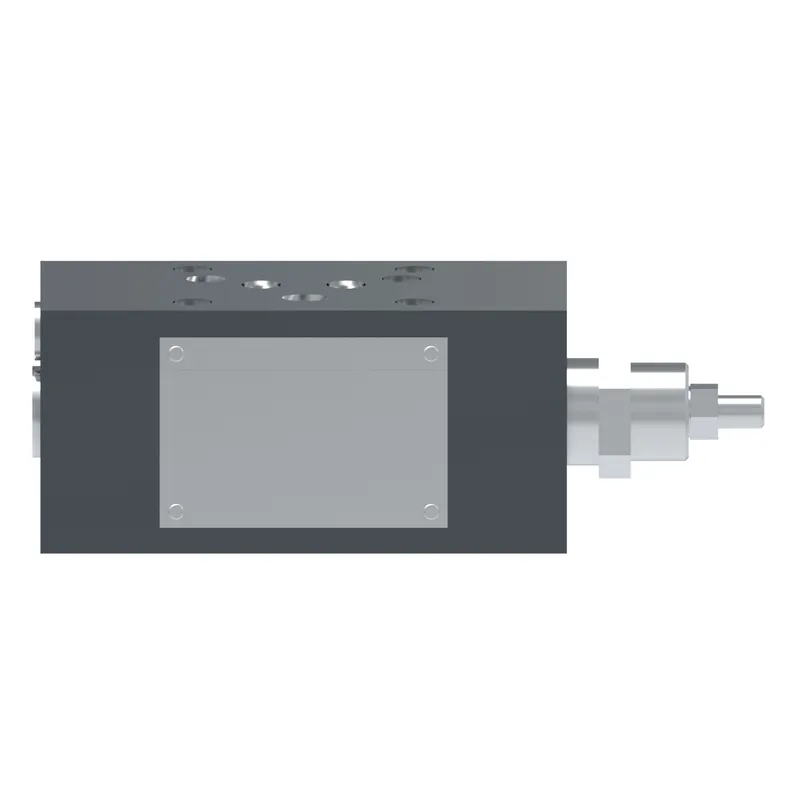

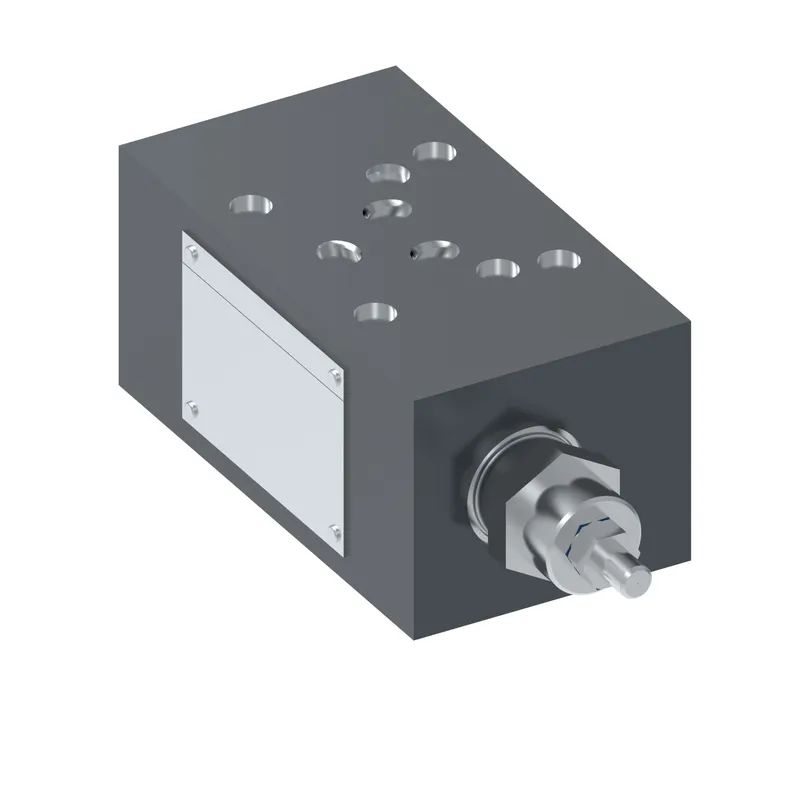

DGMX2-5N-PA-BW-S-30, DGMX25NPABWS30

MPN
02-395135
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-395135?

Danfoss DGMX2-5N-PA-BW-S-30, DGMX25NPABWS30, manufacturer part number 02-395135. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeScrew and locknut
BrandVickers by Danfoss
Design Series30 Series
External drainNo
Flow rate upto LPM120
Flow rate upto USGPM32.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread TypeSAE-4 o-ring boss port
InterfaceNFPA D05 (Alt A)
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMX25NPABWS30
PerformanceStandard
Pilot controlCylinder port A
Port operated uponP pressure port
Pressure adjustment range2.0-50 bar (30-725 psi)
Product height in2.360
Product height mm59.944
Product length in8.190
Product length mm208.026
Product width in2.820
Product width mm71.628
Remote control portNo
Seal typeViton
Special featuresNone
Valve Mount TypeSubplate/manifold mounted
Valve typeReducing/relieving valve
Working temp max C80
Working temp max F176
Working temp min C0
Working temp min F32

02-395135: frequently asked questions

When can 02-395135 be shipped?

02-395135 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-395135 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-395135 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-395135, subject to availability and destination.
