Danfoss 02-391907

Industrial valve

MPN
02-391907
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-391907?

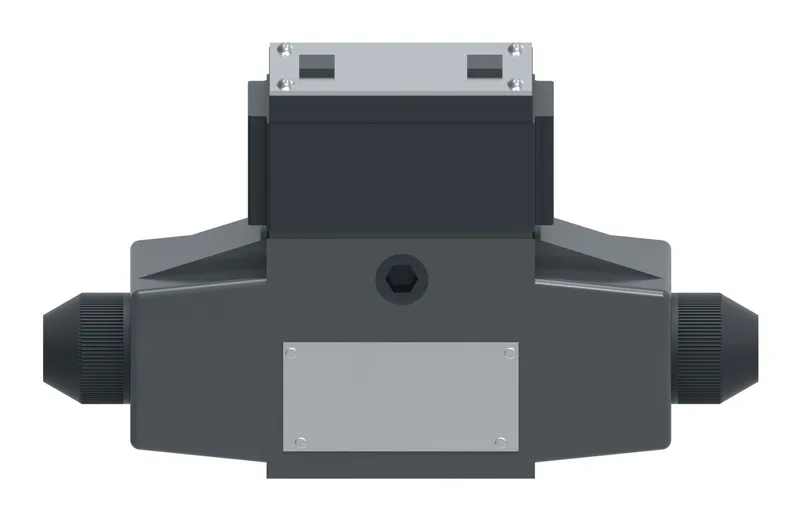

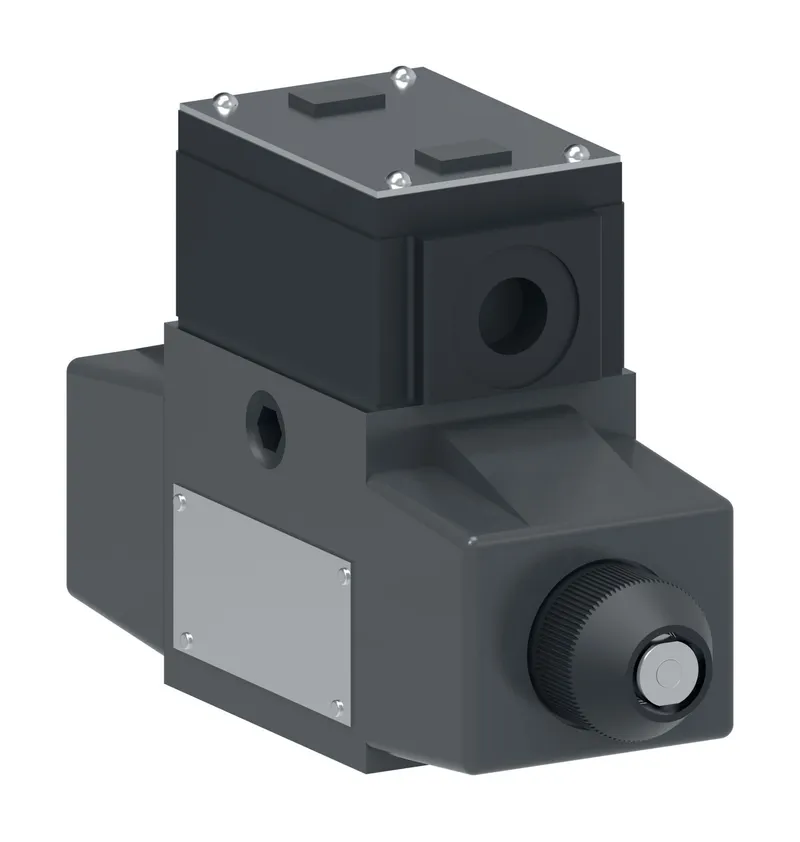

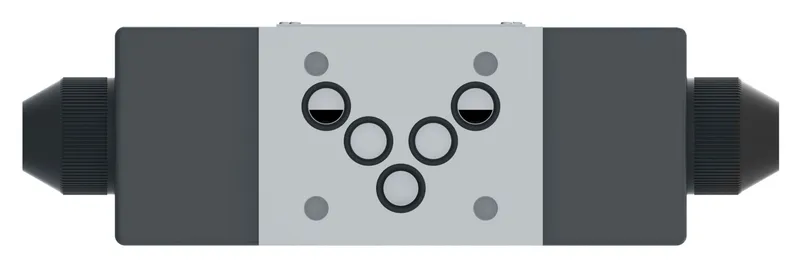

Danfoss DG4S4LW-012C-H-60-S599, DG4S4LW012CH60S599, manufacturer part number 02-391907. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series60 Series
Electrical ConnectionFlying lead coil wire housing
Energ Time50-80 ms
Flow rate upto GPM25.0
Flow rate upto LPM95.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightYes
InterfaceISO4401-05
Manual overrideNone
Model Code 1DG4S4LW012CH60S599
PerformanceStandard performance
Pressure rating BAR250
Pressure rating PSI3600
Product height in3.850
Product length in6.840
Product length mm173.736
Product width in2.580
Product width mm65.532
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresHeavier centre springs/CSA
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring centred, three position
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-391907: frequently asked questions

When can 02-391907 be shipped?

02-391907 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-391907 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-391907 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-391907, subject to availability and destination.
