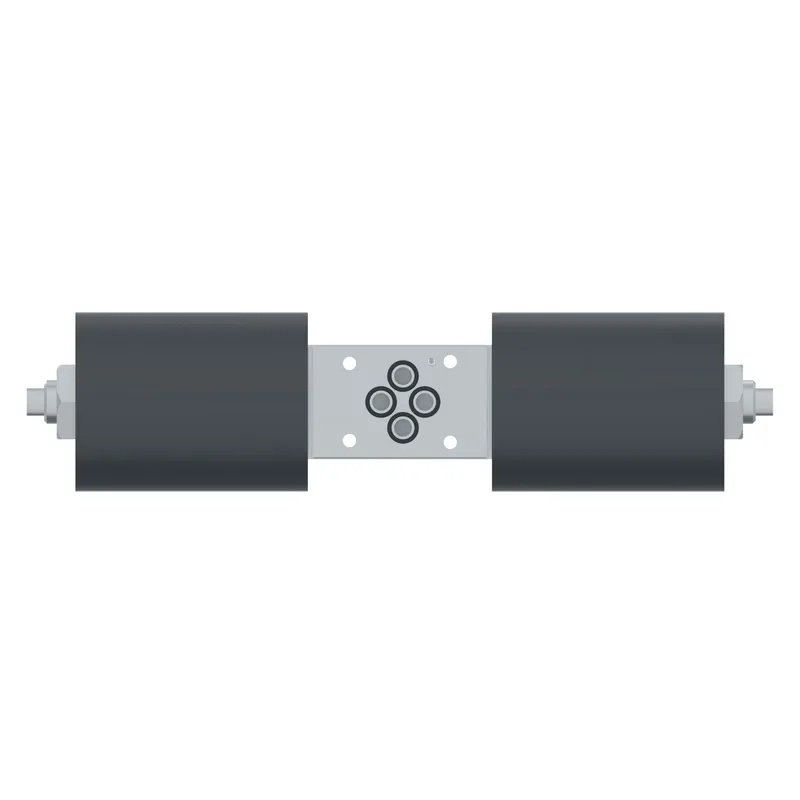

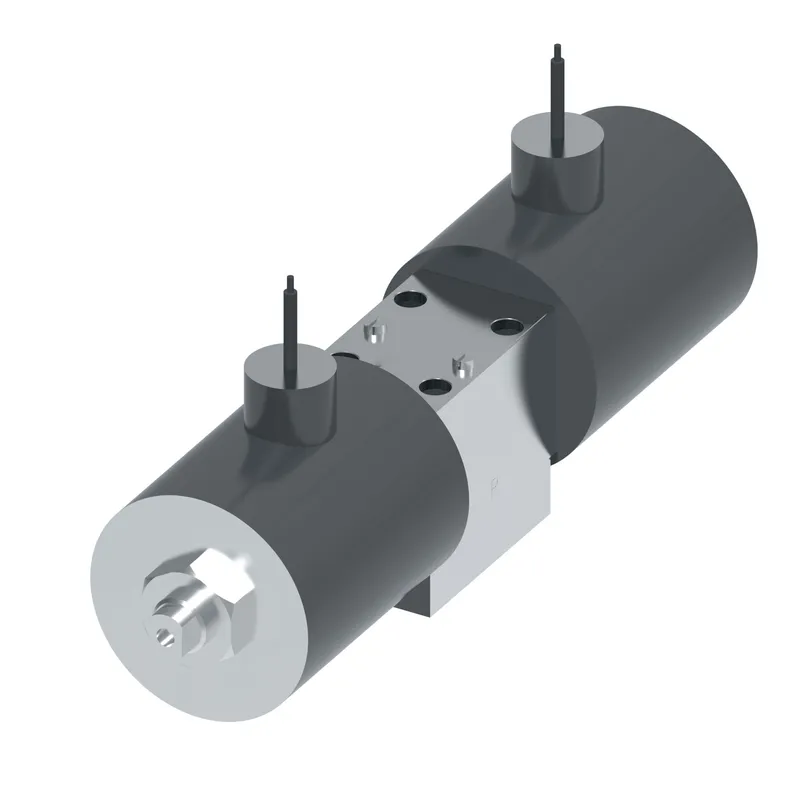

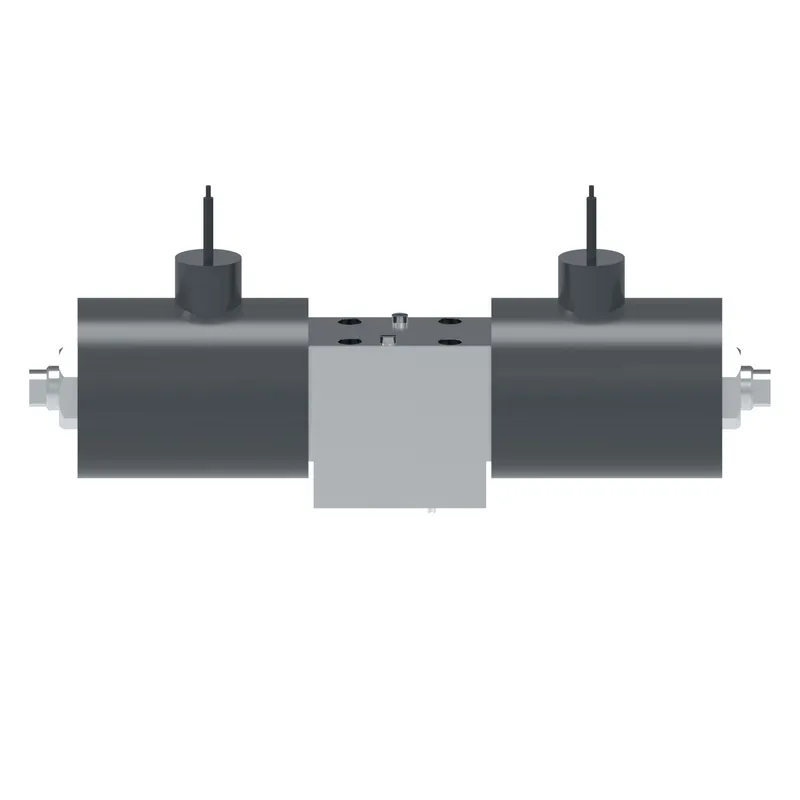

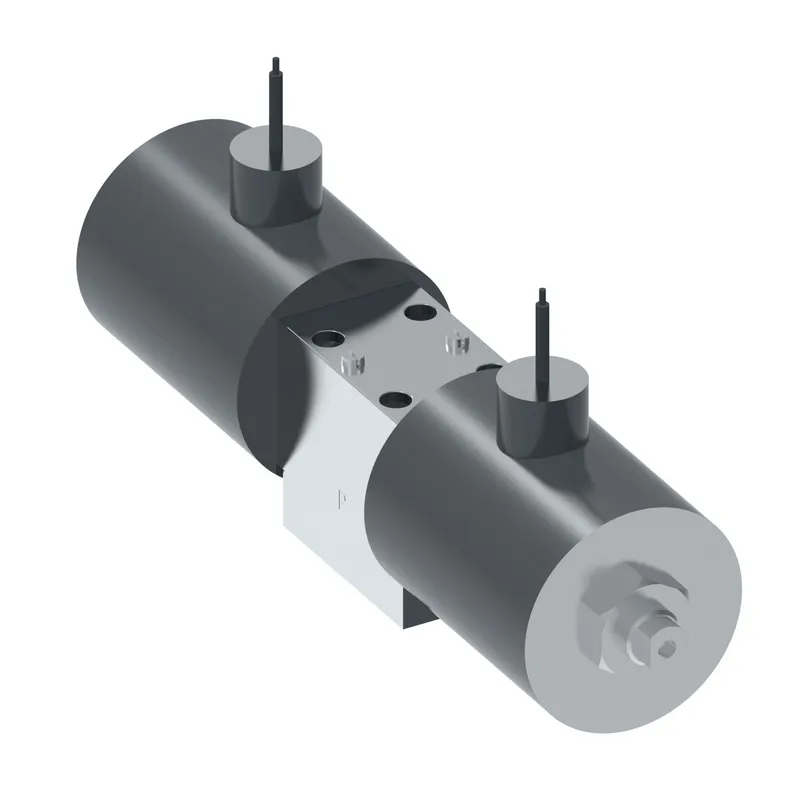

Danfoss 02-391834

F3-DG4V4-01-6C-M-X2-ER4- 10, F3DG4V4016CMX2ER410

MPN
02-391834
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-391834?

Danfoss F3-DG4V4-01-6C-M-X2-ER4- 10, F3DG4V4016CMX2ER410, manufacturer part number 02-391834. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating120 VAC 60Hz
Design Series10 Series
Electrical ConnectionHazardous solenoids UL/CSA
Energ Time20-35 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1F3DG4V4016CMX2ER410
PerformanceStandard performance
Power Consumption27.5 watts
Pressure rating BAR315
Pressure rating PSI4500
Product height in3.900
Product length in12.770
Product length mm324.358
Product width in2.840
Product width mm72.136
Seal typeWATER GLYCOL
Solenoid Energising IDStandard as per ANSI B93 9
Solenoid FeaturesHazardous location solenoids
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring centred
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-391834: frequently asked questions

When can 02-391834 be shipped?

02-391834 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-391834 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-391834 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-391834, subject to availability and destination.
