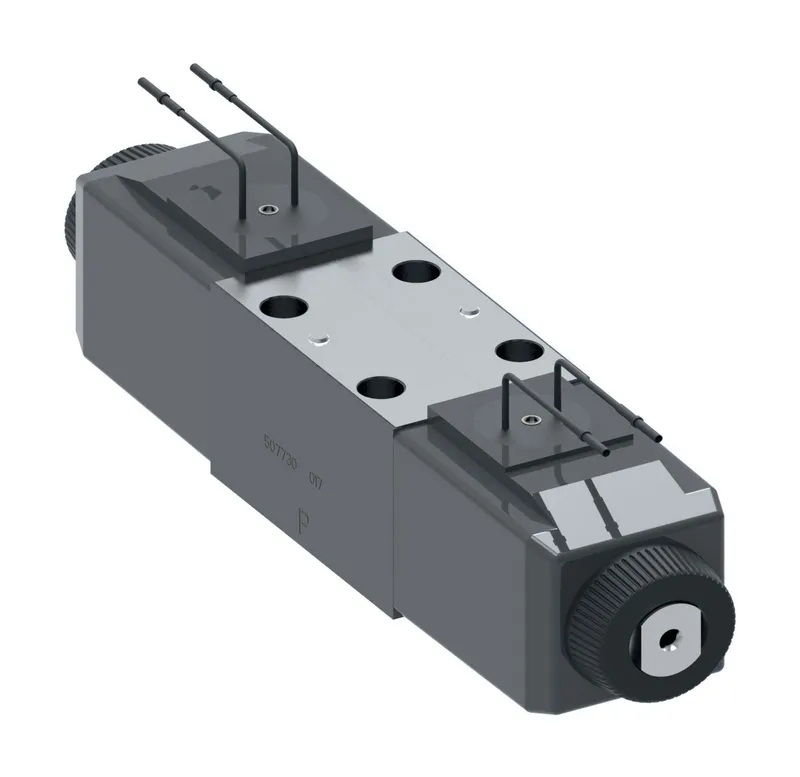

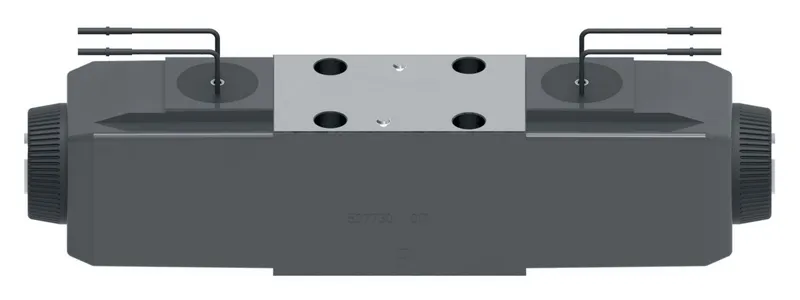

Danfoss 02-391545

KDG4V-3S-33C08A-M-KU-HA5 -60-EN616, KDG4V3S33C08AMKUHA560EN616

MPN
02-391545
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-391545?

Danfoss KDG4V-3S-33C08A-M-KU-HA5 -60-EN616, KDG4V3S33C08AMKUHA560EN616, manufacturer part number 02-391545. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM8.00
A Port flow USGPM2.10
Actuation TypeSolenoid controlled
B Port flow LPM8.00
B Port flow USGPM2.10
BrandVickers by Danfoss
Build orientationStandard as per ANSI B93 9
Build typeSpring centered
Coil voltage24 Volt DC
Command inputNone
Communication protocolNone
Design Series60 Series
Electrical ConnectionTop exit flying lead
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-03/NFPA D03/CETOP 3/NG06
Manual overridePlain
Maximum pressure BAR350
Maximum pressure PSI5000
MeteringMeter in
Model Code 1KDG4V3S33C08AMKUHA560EN616
On board electronicsNo
PerformanceStandard
Product height in3.580
Product height mm90.932
Product length in8.640
Product length mm219.456
Product width in1.810
Product width mm45.974
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresDeutsch connector coils and special 0.90 dia. orifice in P port
Spool TypeP blocked, A & B to tank
StageSingle stage
Symmetric flowYes
Tank port rating BAR100.0
Tank port rating PSI1450
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
