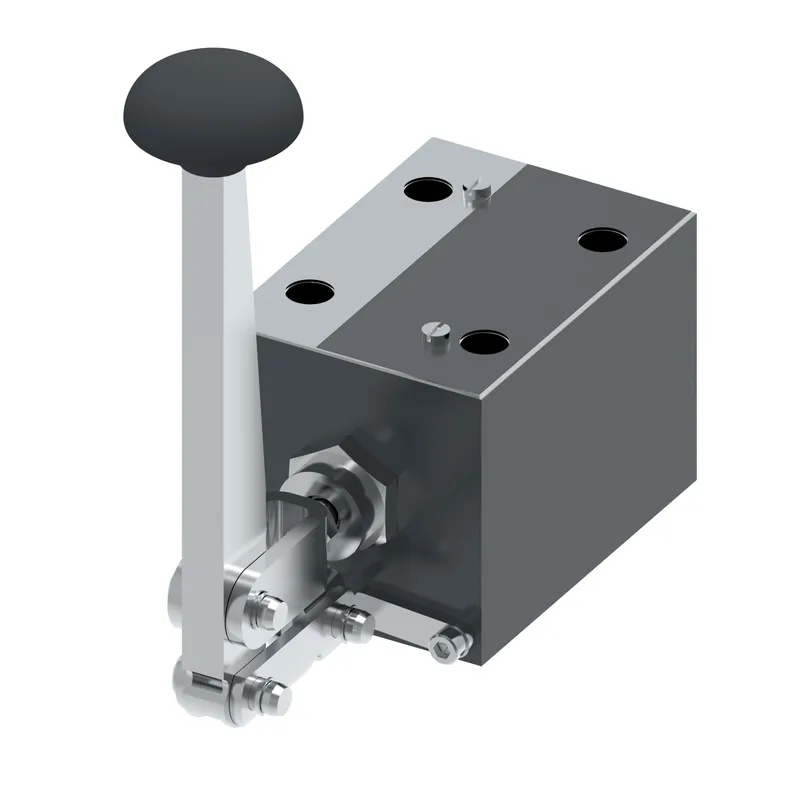

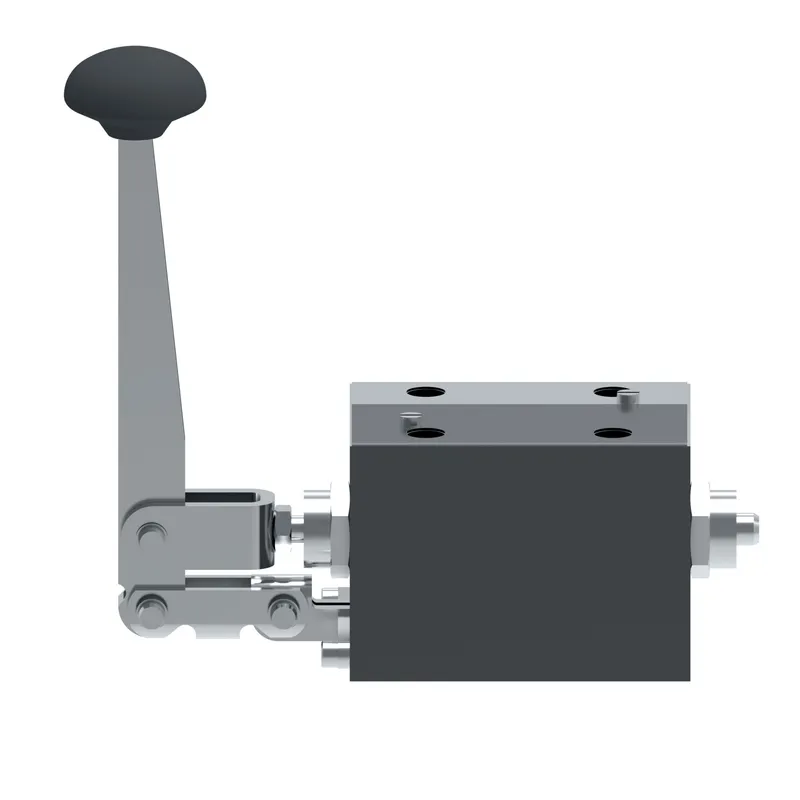

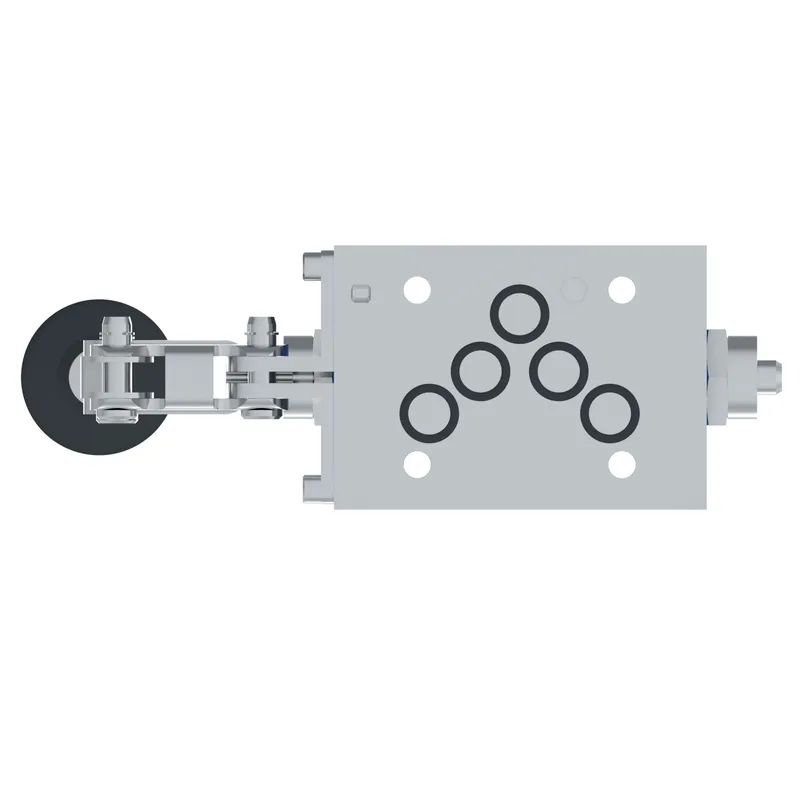

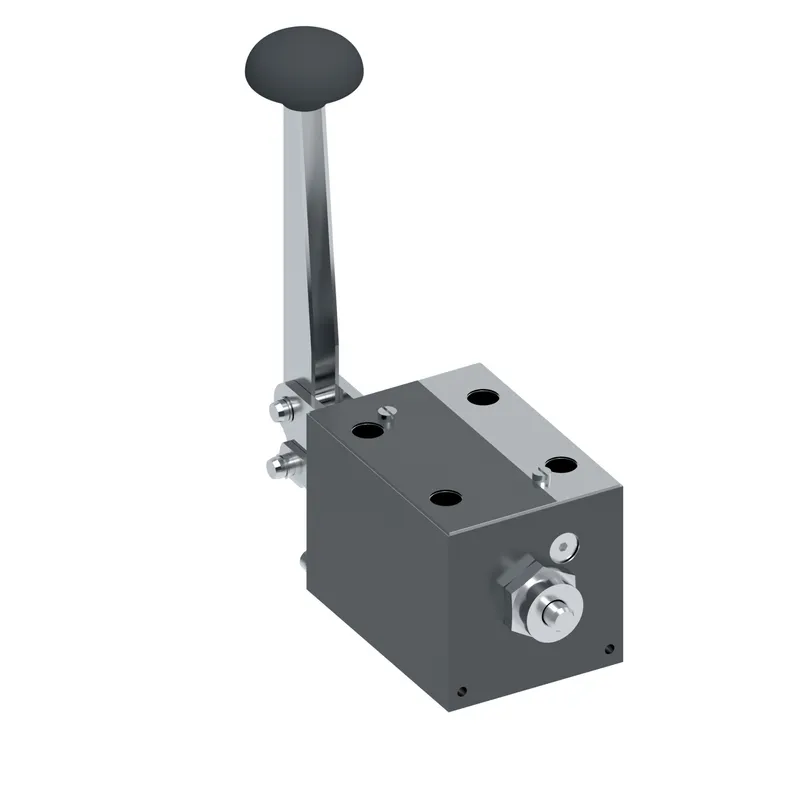

Danfoss 02-391299 – F3-DG17V4-018N-10, F3DG17V4018N10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-391299 be shipped?
02-391299 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-391299 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-391299 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-391299, subject to availability and destination.
Danfoss F3-DG17V4-018N-10, F3DG17V4018N10, manufacturer part number 02-391299. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Manual lever operated |
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 10 Series |
| Electrical Connection | None |
| Flow rate upto GPM | 30.0 |
| Flow rate upto LPM | 114.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-05/NFPA D05 |
| Manual override | None |
| Model Code 1 | F3DG17V4018N10 |
| Pressure rating BAR | 310 |
| Pressure rating PSI | 4500 |
| Product height in | 7.060 |
| Product length in | 6.900 |
| Product length mm | 175.260 |
| Product width in | 2.750 |
| Product width mm | 69.85 |
| Seal type | Buna-N |
| Solenoid Energising ID | None |
| Spool Type | Spool 8 |
| Spring Arrangement | No spring detented |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank port rating BAR | 70.0 |
| Tank port rating PSI | 1000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve type | Directional control valve |
| Working temp max C | 50 |
| Working temp max F | 122 |
| Working temp min C | 20 |
| Working temp min F | 70 |
More Danfoss (Drives) parts
Available on requestDG17V4-018CL-10, DG17V4018CL10
Available on requestDG5V-8-H-6C-M-FW-B-10-EN 21, DG5V8H6CMFWB10EN21Available on requestDG5V-8-H-2C-M-FW-B-10-EN 21, DG5V8H2CMFWB10EN21

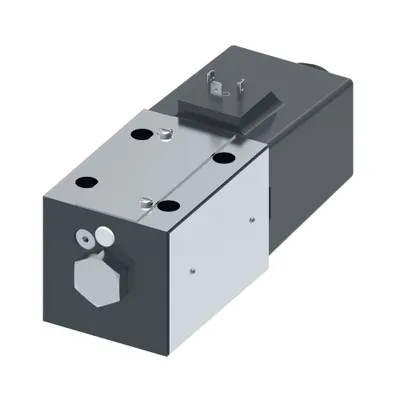

Available on requestDG4V4-016B-M-U-H-5-10, DG4V4016BMUH510

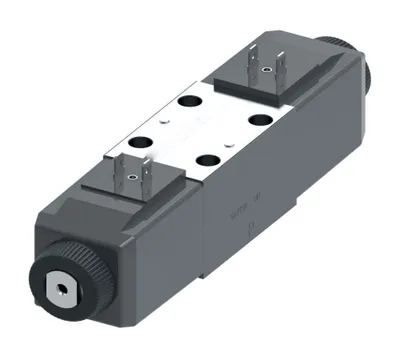

Available on requestDG4V-3S-6C-H-M-SP2-D2-H7 -60-EN490, DG4V3S6CHMSP2D2H760EN490

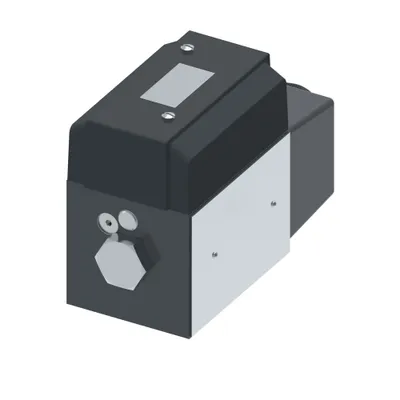

Available on requestDG4V4-012A-M-W-G-5-10, DG4V4012AMWG510

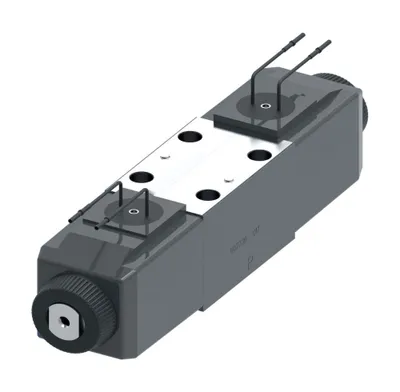

Available on requestKDG4V-3S-33C08A-M-KU-HA5 -60-EN616, KDG4V3S33C08AMKUHA560EN616

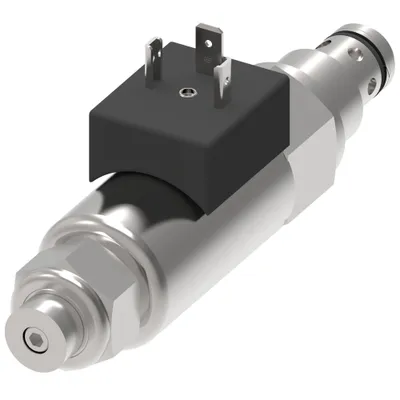

Available on requestEPV10-0-V-12D-0-U-10, EPV10-0-V-12D-0-U-10
