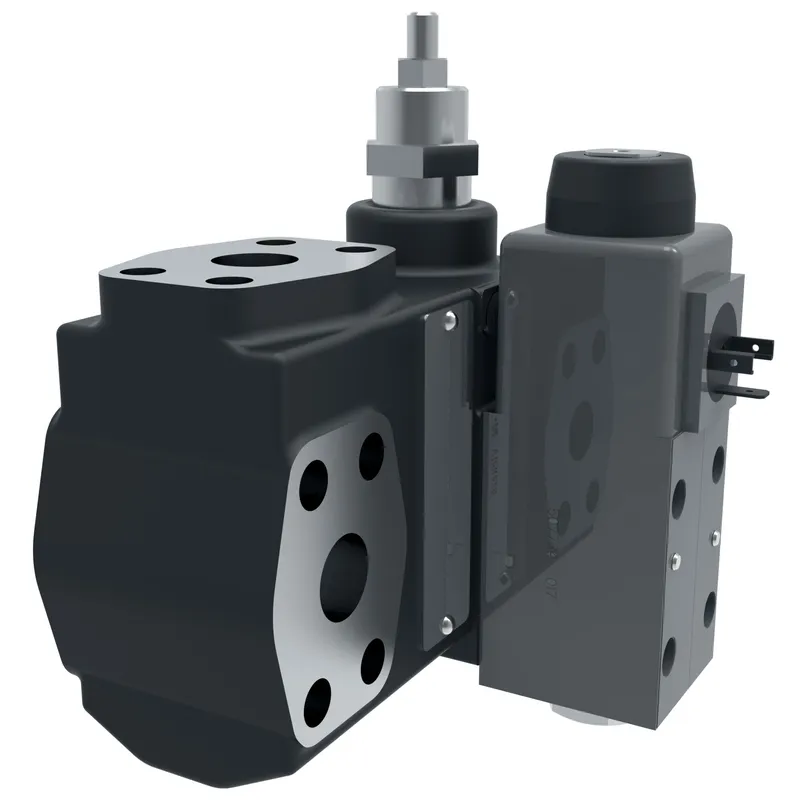

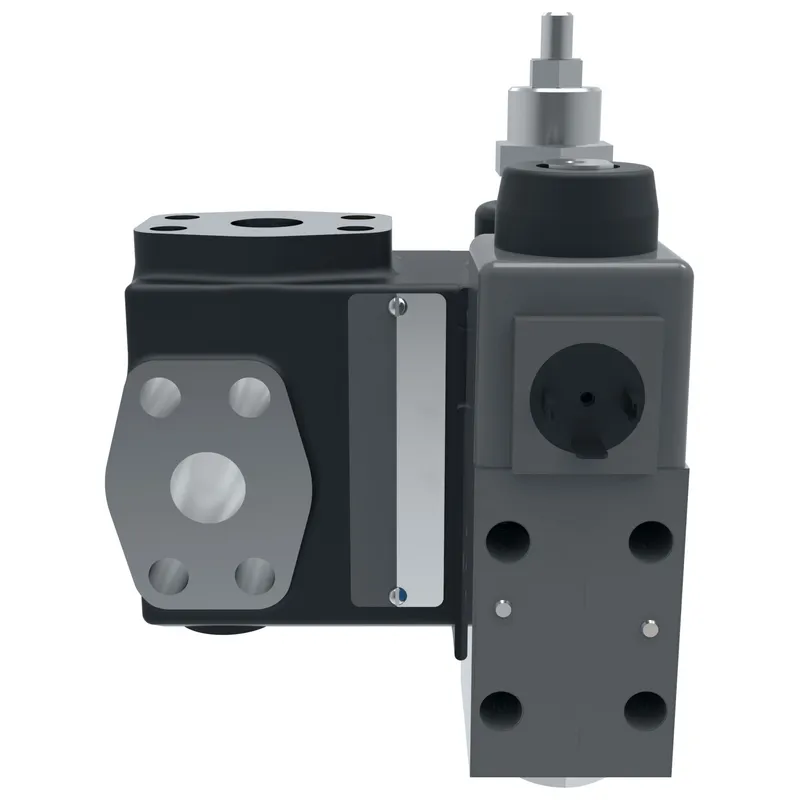

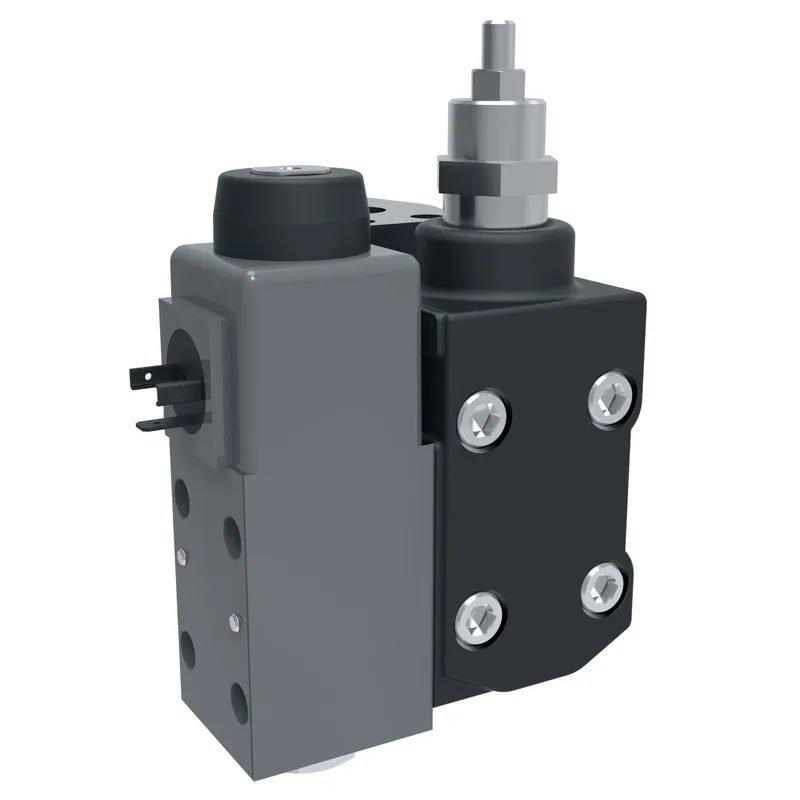

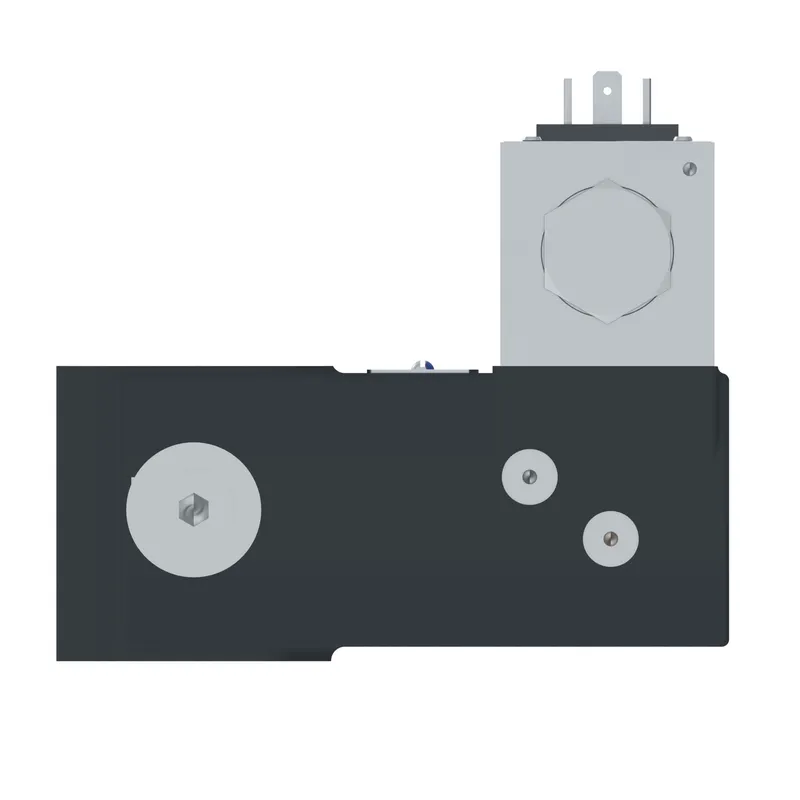

Danfoss 02-364029

CPF2S-12-A-W-3S-M-U-B5-2 0, CPF2S12AW3SMUB520

MPN
02-364029
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-364029?

Danfoss CPF2S-12-A-W-3S-M-U-B5-2 0, CPF2S12AW3SMUB520, manufacturer part number 02-364029. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range10-50 bar (145-725 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Coil voltage110 VAC 50Hz/120 VAC 60Hz
Design Series20 Series
DrainInternal
Electrical connectionISO 4400 (DIN 43650) connector
Flow rate lpm600.0
Flow rate USGPM160.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Gauge port threadG 1/4 BSP thd
Hi-vent springNo
Indicator LightNo
Manual overridePlain
Maximum pressure BAR275
Maximum pressure PSI4000
Model Code 1CPF2S12AW3SMUB520
PerformanceStandard
Product height in7.090
Product height mm180.086
Product length in7.550
Product length mm191.770
Product width in6.500
Product width mm165.1
Seal materialNitrile
SizeSAE 1 1/2"
Special featureNone
StageTwo stage
Tank pressure bar210
Tank pressure PSI3000
Valve Mount TypeFlange mounted
Valve typeRelief single pressure with vent
Working temperature max C80
Working temperature max F176
Working temperature min C-20
Working temperature min F-4

02-364029: frequently asked questions

When can 02-364029 be shipped?

02-364029 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-364029 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-364029 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-364029, subject to availability and destination.
