Danfoss 02-363806

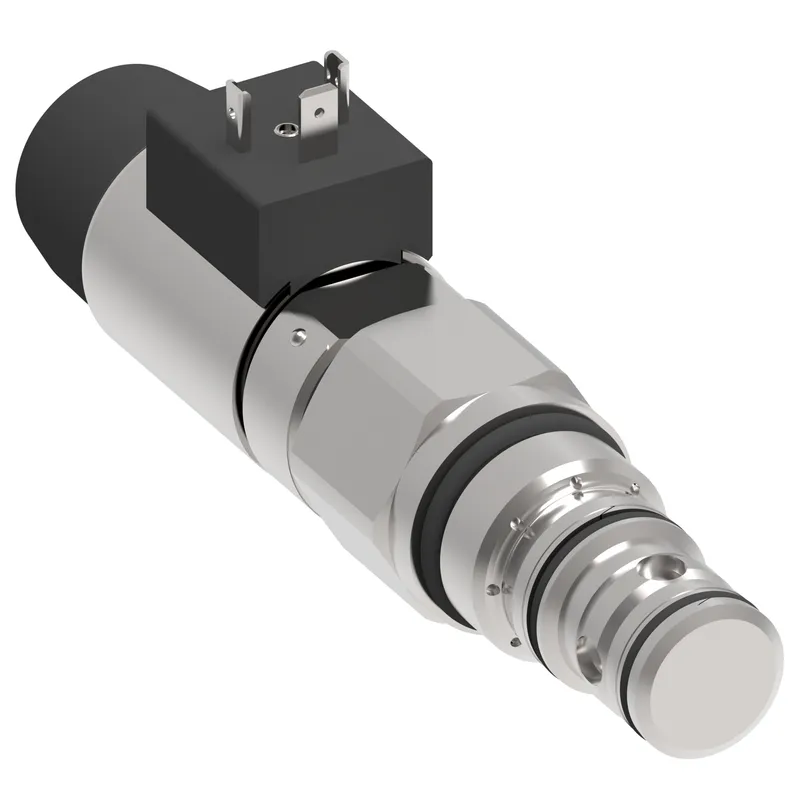

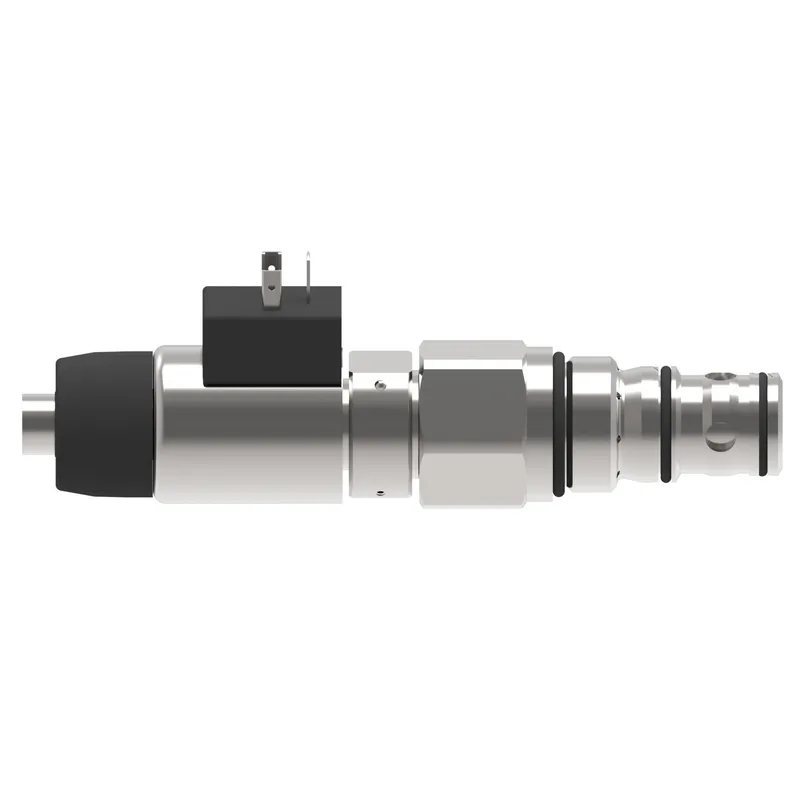

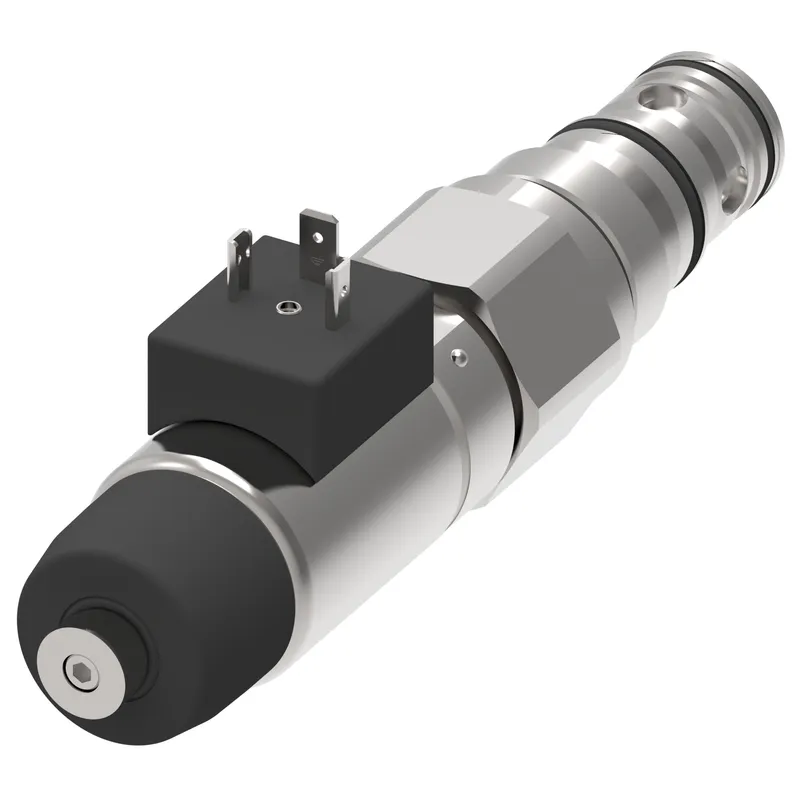

EPV16-B-04-0-N-24D-U-13, EPV16-B-04-0-N-24D-U-13

MPN
02-363806
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-363806?

Danfoss EPV16-B-04-0-N-24D-U-13, EPV16-B-04-0-N-24D-U-13, manufacturer part number 02-363806. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

BrandVickers by Danfoss
CavityC-16-3S
Coil seriesEPV Series
Coil terminationDIN43650-A
DiodeNo
Flow rate GPM11.00
Flow rate LPM40.000
Fluid compatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionProp Flow Control
HousingNo
Installation typeScrew-in Cartridge
Leakage10 cc/min
Minimum working pressure BAR100.00
Minimum working pressure PSI1454.00
Model Code 1EPV16-B-04-0-N-24D-U-13
Number of housing ports3
Number of valve ports3
Operating temperature-30 C to 90 C (-22 to 194 F)
OperationElecro Proportionally Ctrl
Override typeNone
Port sizeNone
Port typeCartridge Only
Pressure rating BAR280.00
Pressure rating PSI4000.00
Product height in1.710
Product height mm43.434
Product length in7.290
Product length mm185.166
Product width in1.710
Product width mm43.434 mm
Recommended filtration level15/13/11
Seal typeBuna-N
Special featuresNone
StylePoppet
Torque into aluminium cavity108-122 Nm
Torque into steel cavity136-149 Nm
Voltage24 V
Voltage typeDC
Working pressure max BAR280.00
Working pressure max PSI4000.00

02-363806: frequently asked questions

When can 02-363806 be shipped?

02-363806 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-363806 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-363806 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-363806, subject to availability and destination.
