Danfoss 02-361727

DG5S4-02-521C-H-T-M-M-U-BL6-30-EN540, DG5S402521CHTMMUBL630EN540

MPN
02-361727
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

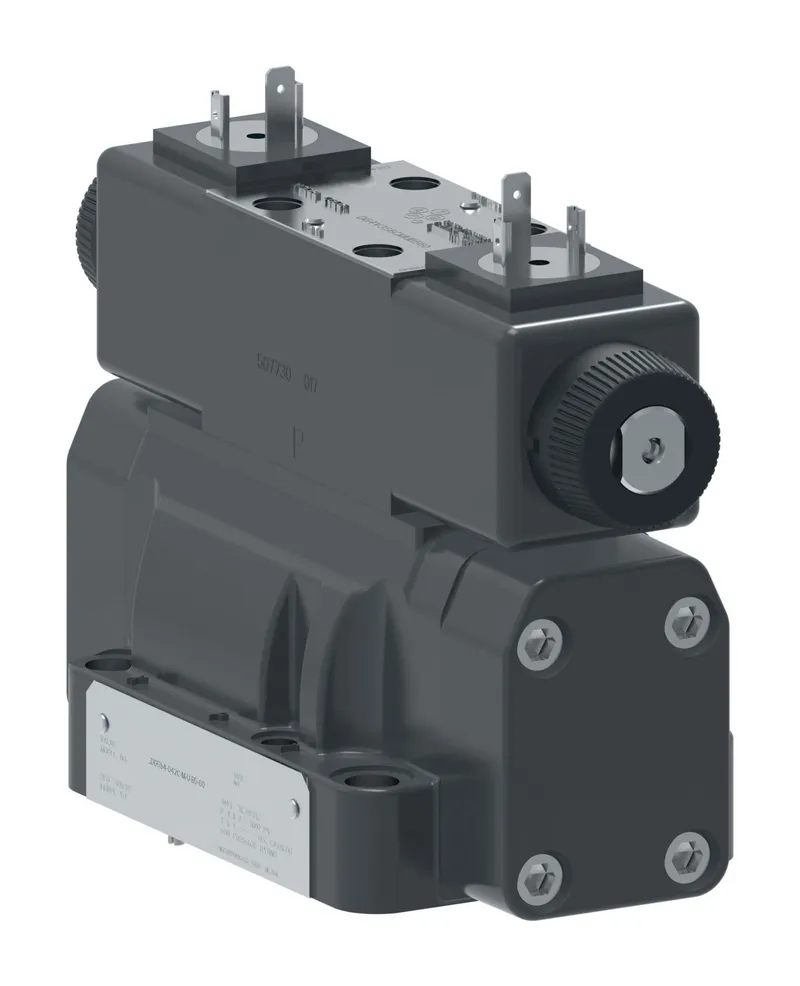

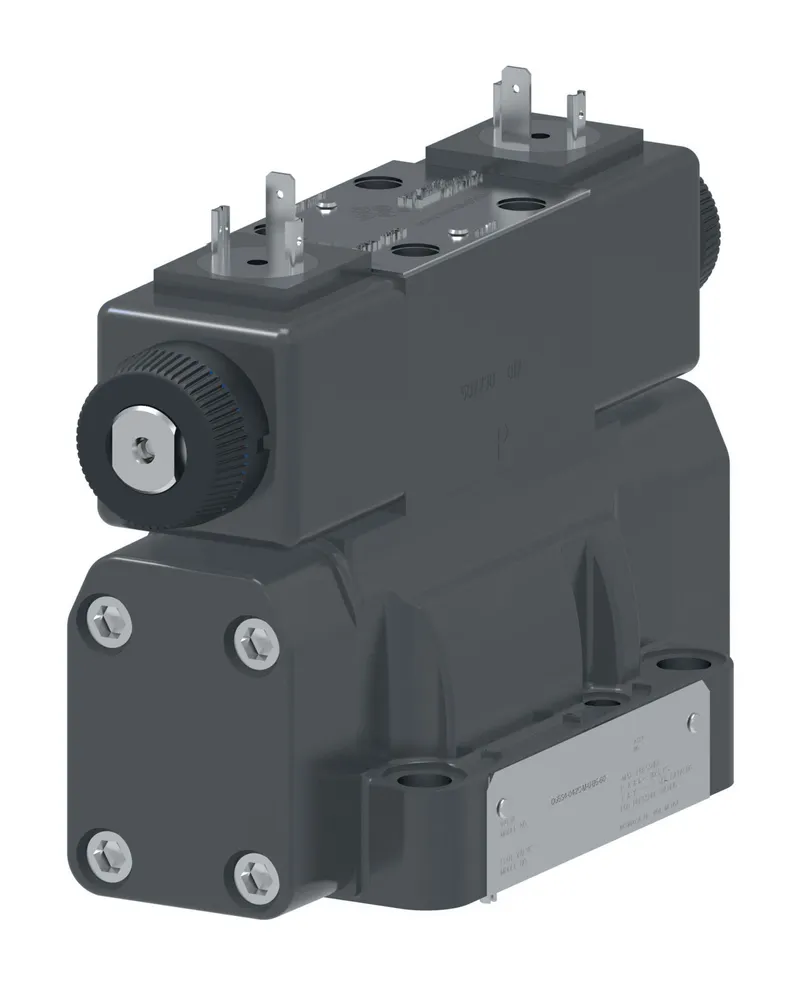

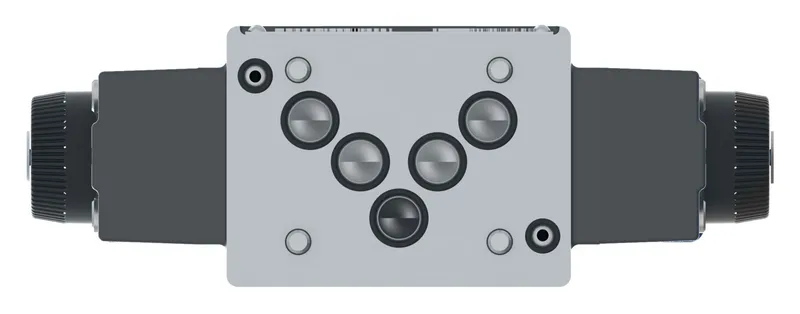

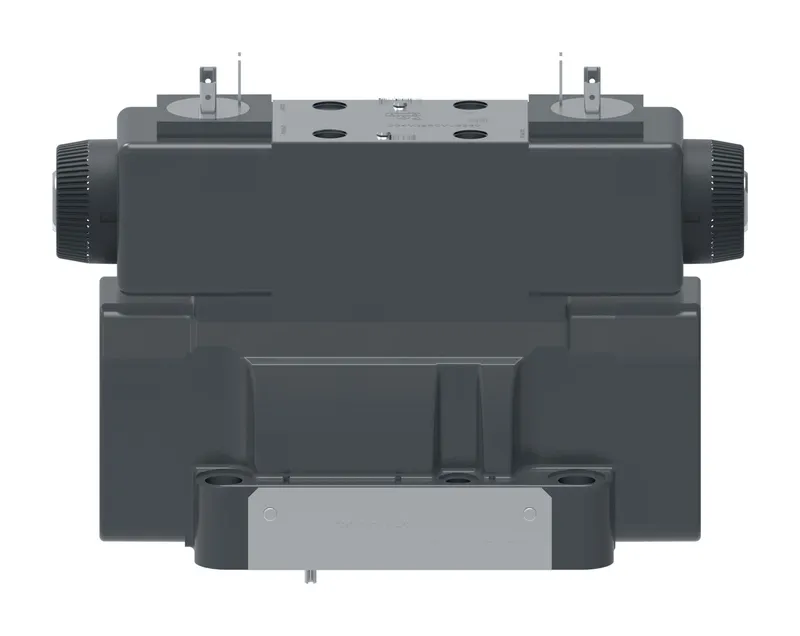

What is the Danfoss 02-361727?

Danfoss DG5S4-02-521C-H-T-M-M-U-BL6-30-EN540, DG5S402521CHTMMUBL630EN540, manufacturer part number 02-361727. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series30 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureInternal
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
Int pilot drainInternal
InterfaceISO4401-05
Manual overrideWaterproof
Model Code 1DG5S402521CHTMMUBL630EN540
PerformanceHigh performance
Pressure rating BAR210
Pressure rating PSI3000
Product height in6.170
Product height mm156.718
Product length in7.870
Product length mm199.898
Product width in2.630
Product width mm66.802
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresHigh performance pilot valve, special body, low leakage, metric mounting bolts, larger end cap mounting bolts, special orifice inP port
Spool Position MonitorNo
Spool TypeSpool 521
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR160.0
Tank port rating PSI2300
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-18
Working temp min F0

02-361727: frequently asked questions

When can 02-361727 be shipped?

02-361727 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-361727 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-361727 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-361727, subject to availability and destination.
