Danfoss 02-361718

Industrial valve

MPN
02-361718
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-361718?

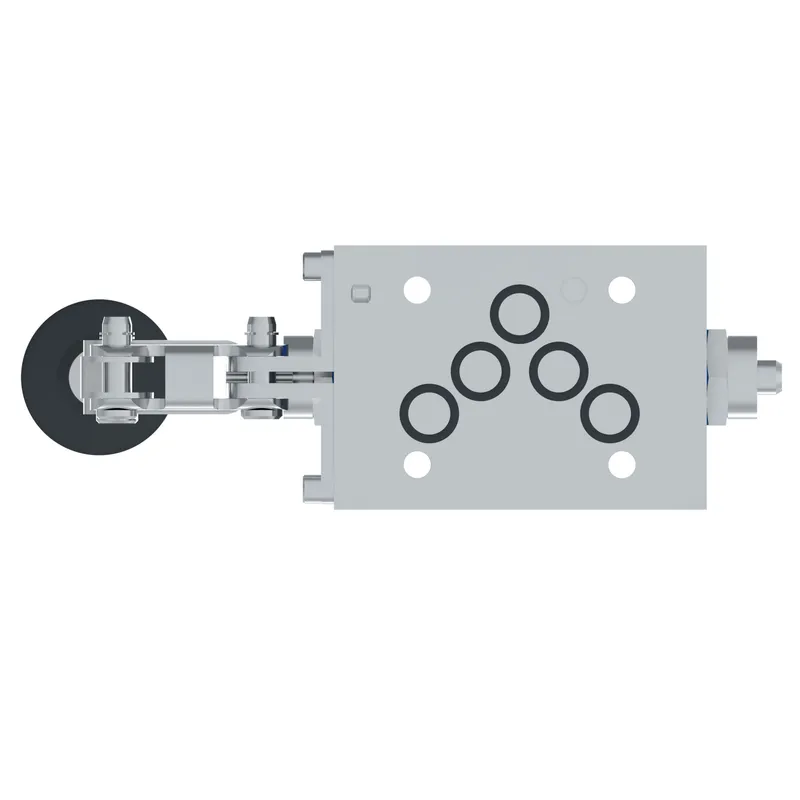

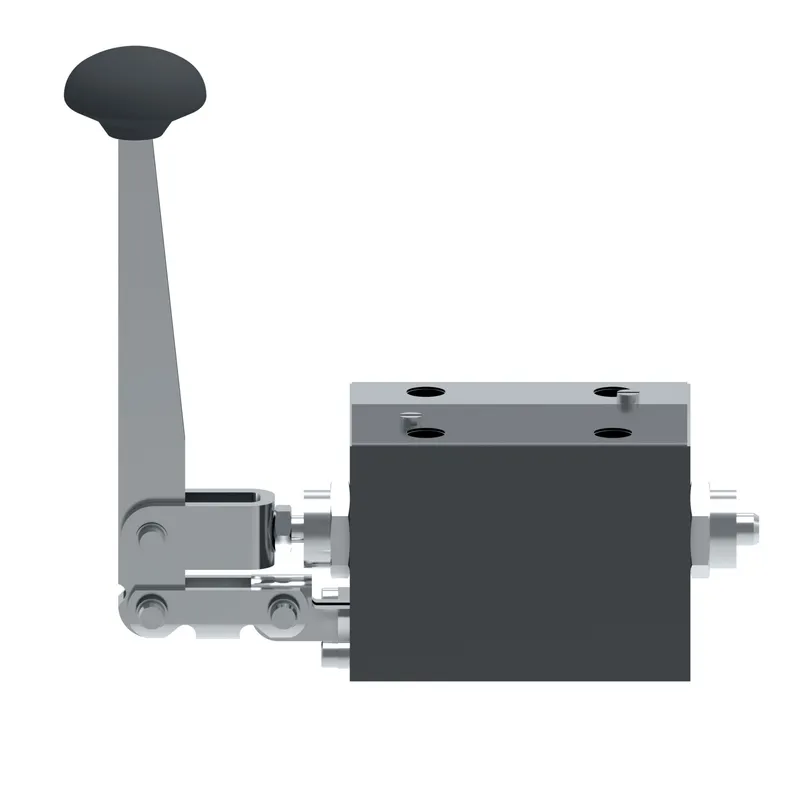

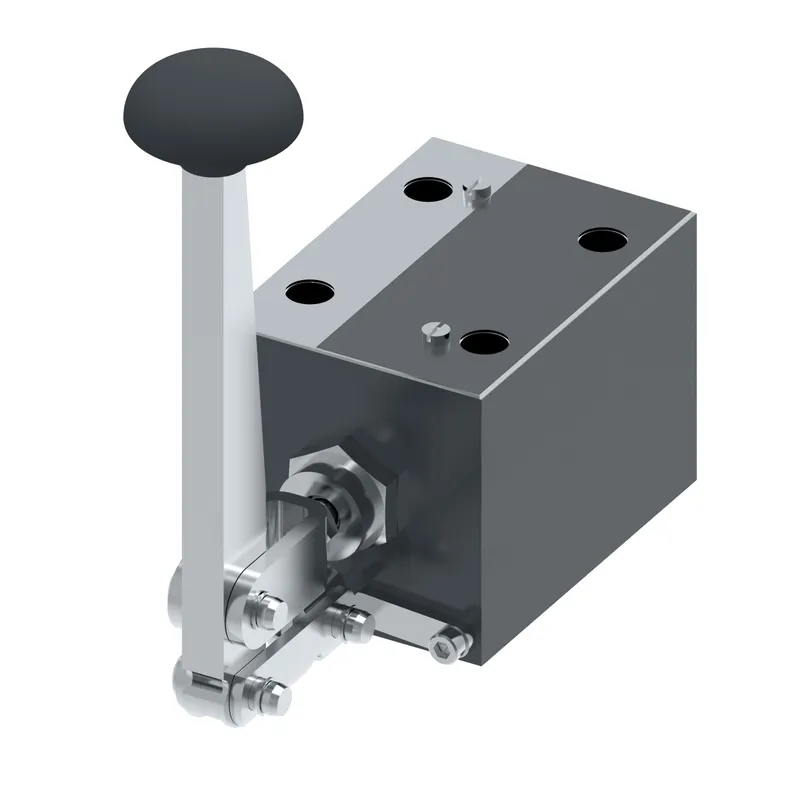

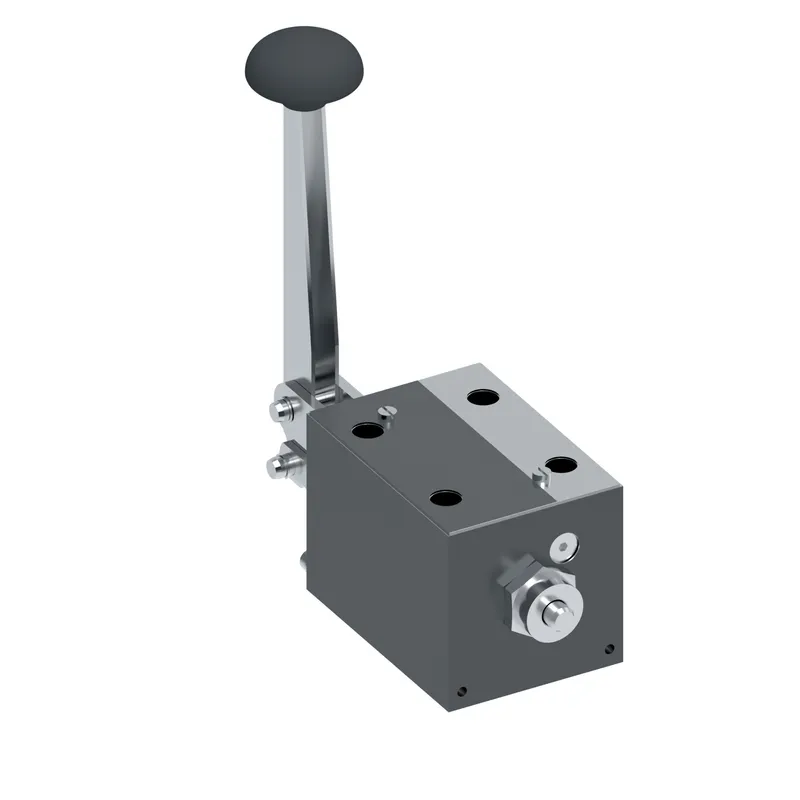

Danfoss DG17V4-010C-H-10-S588, DG17V4010CH10S588, manufacturer part number 02-361718. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeManual lever operated
BrandVickers by Danfoss
Coil RatingNone
Design Series10 Series
Electrical ConnectionNone
Flow rate upto GPM30.0
Flow rate upto LPM114.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05
Manual overrideNone
Model Code 1DG17V4010CH10S588
PerformanceStandard performance
Pressure rating BAR315
Pressure rating PSI4500
Product height in6.420
Product length in8.820
Product length mm224.028
Product width in2.750
Product width mm69.85
Seal typeBuna-N
Solenoid Energising IDNone
Special featuresSpecial body
Spool Position MonitorNo
Spool TypeSpool 0
Spring ArrangementSpring centred
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-361718: frequently asked questions

When can 02-361718 be shipped?

02-361718 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-361718 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-361718 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-361718, subject to availability and destination.
