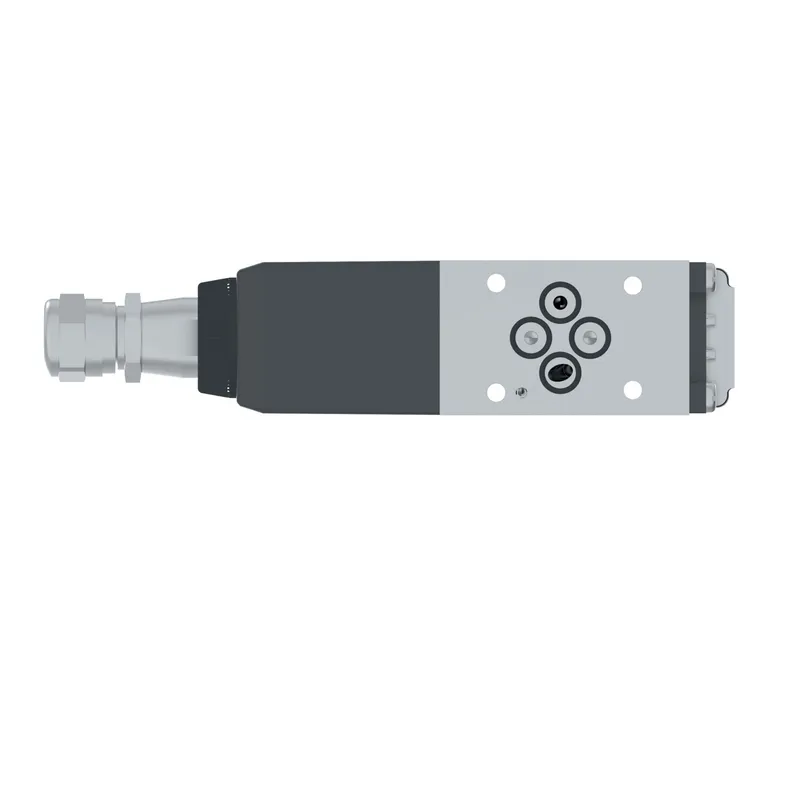

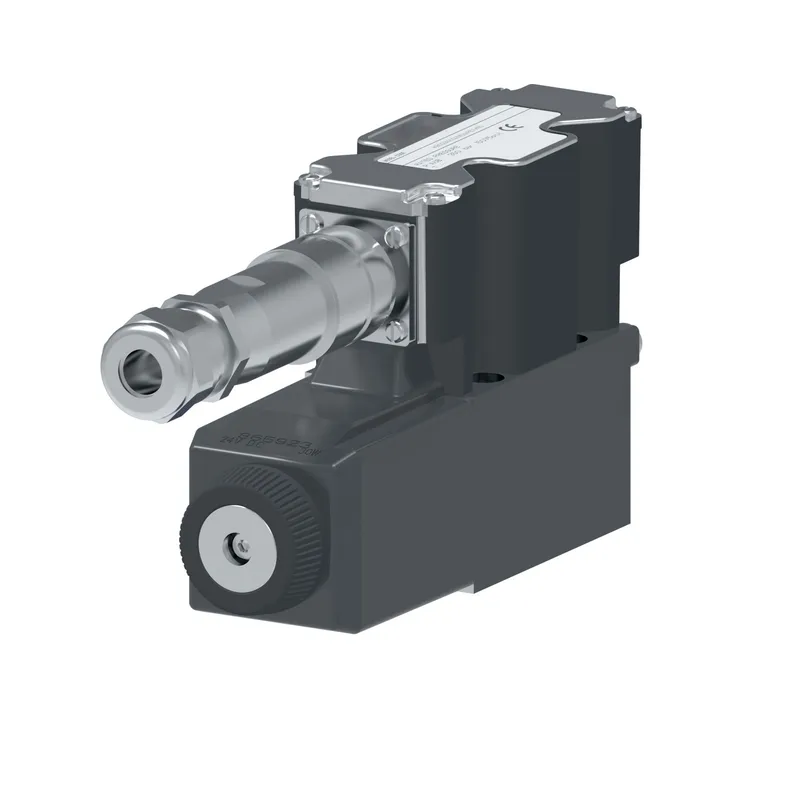

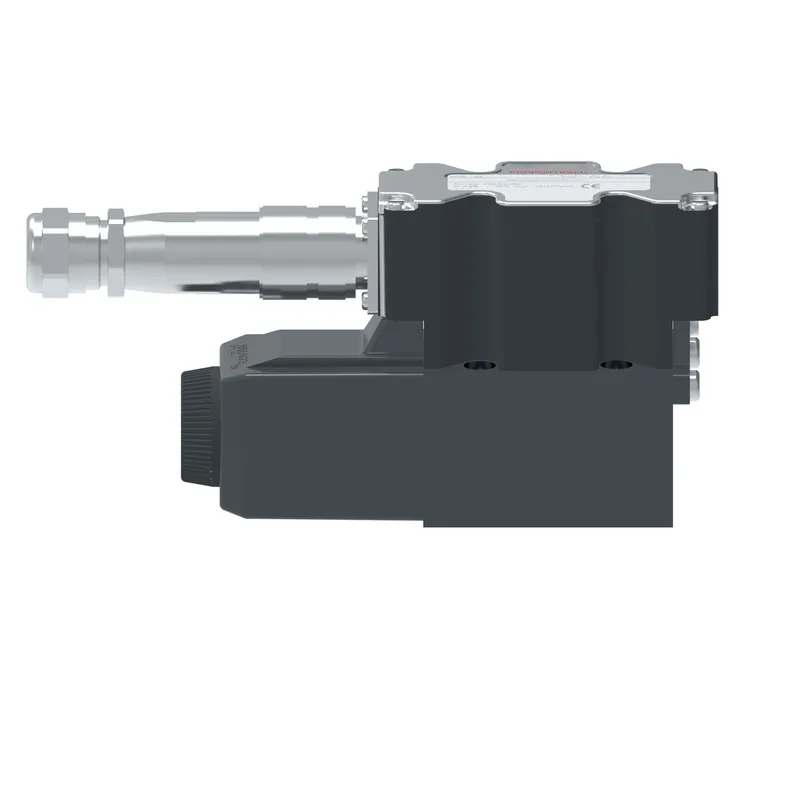

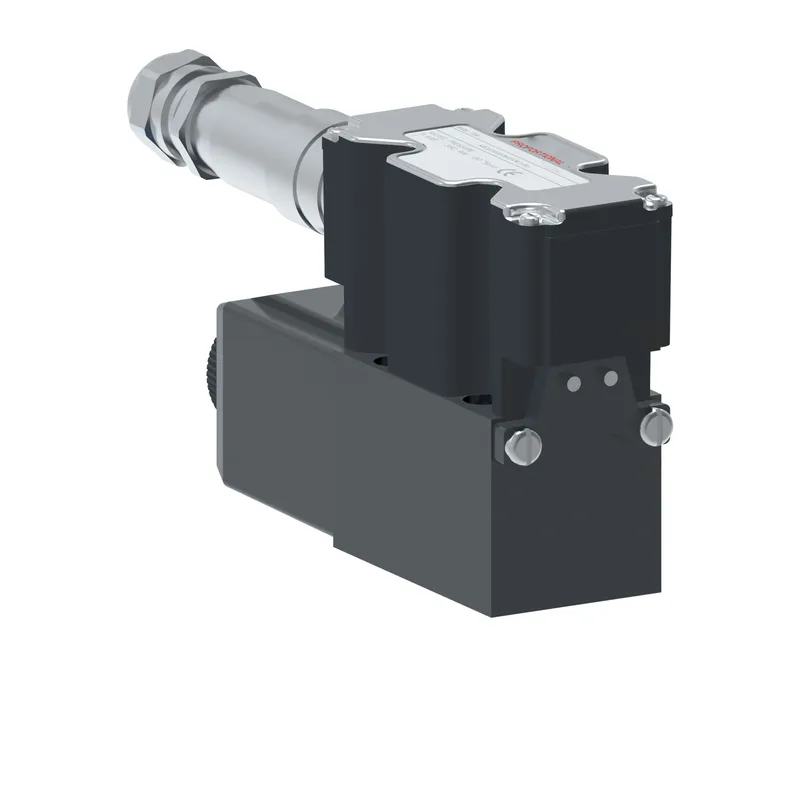

Danfoss 02-352751

KBCG 3 250D Z M2 2 A PE7H1 10

MPN
02-352751
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-352751?

Danfoss KBCG 3 250D Z M2 2 A PE7H1 10, manufacturer part number 02-352751. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid controlled
BrandVickers by Danfoss
Build orientationRight hand
Coil voltage24 Volt DC
Command input4-20mA Command
Communication protocolNone
Current1.6 amp
Design Series10 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-03/NFPA D03/CETOP 3/NG06
Manual overrideNone
Maximum pressure BAR350
Maximum pressure PSI5000
On board electronicsYes
PerformanceStandard
Pressure range5-250 bar (73-3625 psi)
Product height in3.940
Product height mm100.076
Product length in7.280
Product length mm184.912
Product width in1.810
Product width mm45.974
ProFX compatibleNo
RampStandard ramp (typically 65ms)
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeNone
StageSingle stage
Symmetric flowNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional pressure relief
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-352751: frequently asked questions

When can 02-352751 be shipped?

02-352751 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-352751 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-352751 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-352751, subject to availability and destination.
